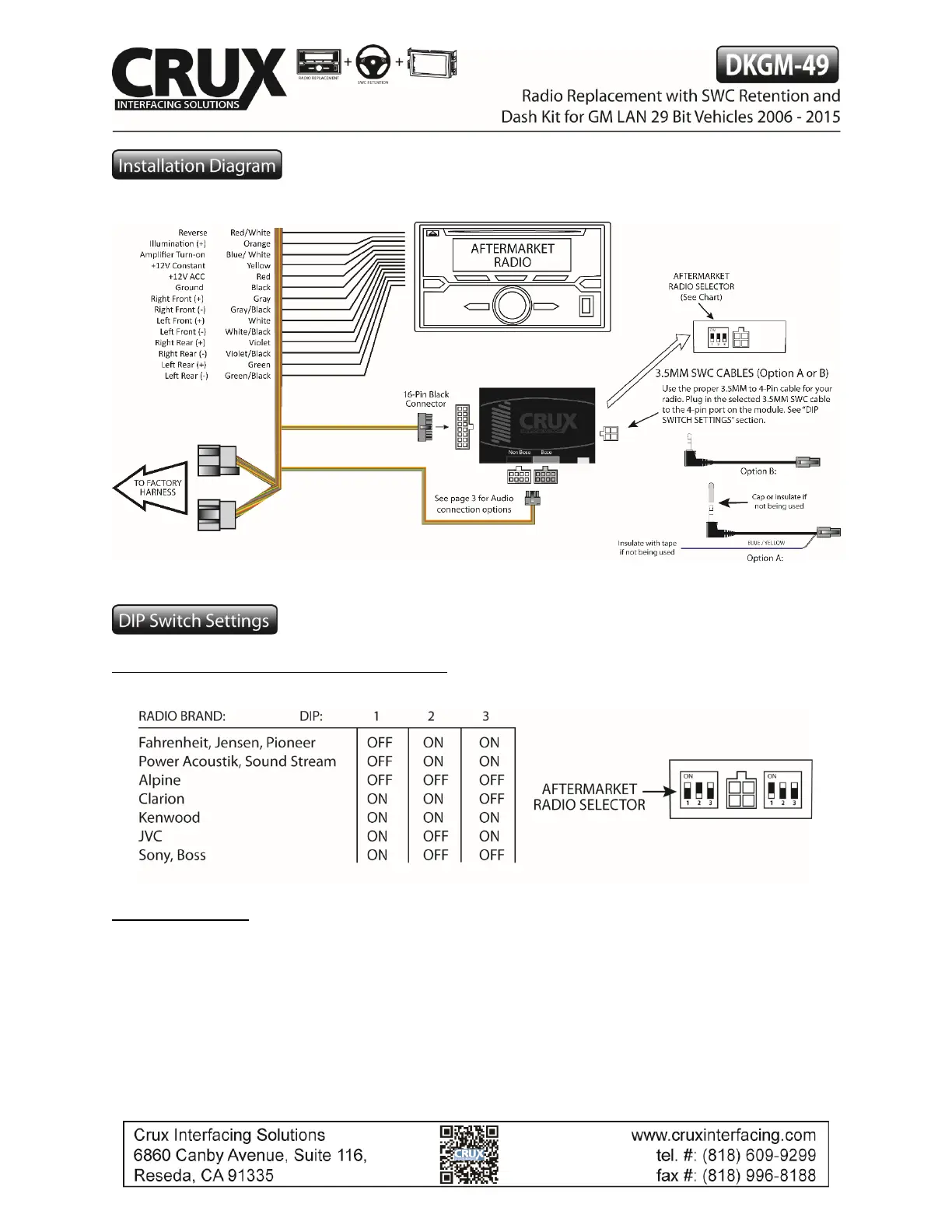

SETTING THE AFTERMARKET RADIO BRAND
With the key in the off position, set the DIP switches to the corresponding radio listed below.
3.5MM SWC CABLE
The DKGM-49 Module allows for both types of connections:
OPTION A is used for ALPINE, CLARION, JVC, and KENWOOD units (Blue/Yellow wire is attached)
OPTION B is used for BOSS, DUAL, FAHRENHEIT, JENSEN, POWER ACOUSTIK, PIONEER, SONY and
SOUND STREAM units.
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
