Crux SOOCR-26 - Troubleshooting Amplified Systems; Connecting Rear to Front Channels; Screen Replacements

RADIO REPLACEMENT FOR CHRYSLER, DODGE, JEEP VEHICLES 2004-2014
CHRYSLER
2011 - 2014 200
2005 - 2010 300
2007 - 2009 Aspen
2006 - 2010 PT Cruiser
2007 - 2010 Sebring
2008 - 2014 Town & Country
DODGE
2007 - 2013 Avenger
2007 - 2012 Caliber
2008 - 2014 Challenger
2006 - 2010 Charger
2013 - 2013 Charger
2005 - 2011 Dakota
2004 - 2013 Durango
2009 - 2013 Grand Caravan
2009 - 2010 Journey
2013 - 2013 Journey
2005 - 2008 Magnum
2007 - 2011 Nitro
2006 - 2012 Ram
JEEP
2006 - 2010 Commander
2007 - 2013 Compass
2005 - 2013 Grand Cherokee
2008 - 2012 Liberty
2007 - 2013 Patriot
2007 - 2014 Wrangler
MITSUBISHI
2006 - 2009 Raider
VOLKSWAGEN
2009 - 2013 Routan
THIS INTERFACE ALSO SUPPORTS
RADIO REPLACEMENT IN VEHICLES
WITH A 4.3” AND 8.4” COLOR SCREENS
Supports:
- Boston Premium Audio
-AlpineAmpliers
May Not Support:
-InnitySoundSystem
SOOCR-26
Revision 052114
VEHICLES LISTED BELOW MUST
HAVE GRAY 22-PIN CONNECTOR

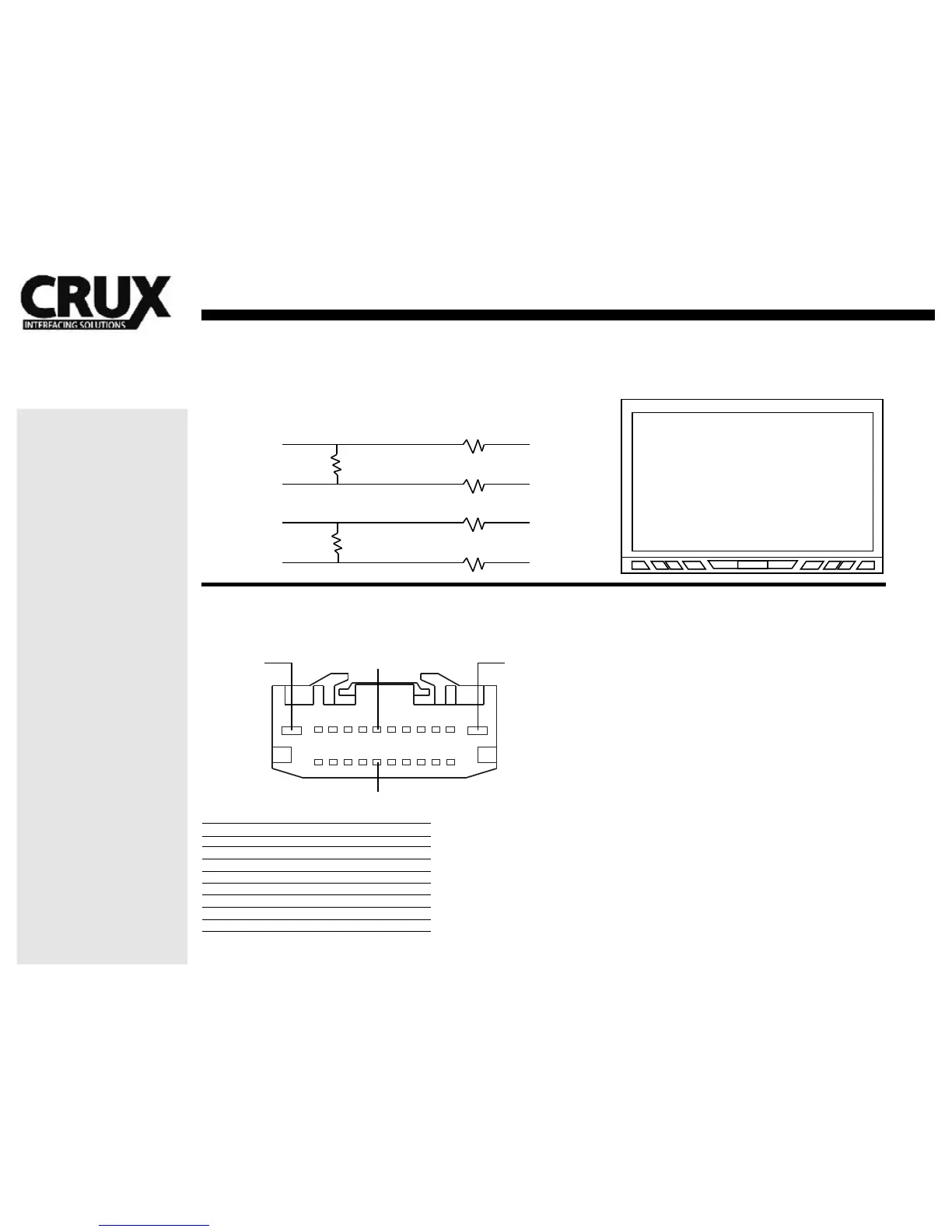

TROUBLESHOOTING FOR AMPLIFIED SYSTEMS
620 Ohm
620 Ohm
620 Ohm
620 Ohm
200 - 470 Ohm
200 - 470 Ohm
AFTERMARKET
RADIO
CONNECT THE REAR TO THE FRONT CHANNELS
VIOLET
VIOLET/BLACK
GREEN
GREEN/BLACK
GRAY
GRAY/BLACK
WHITE
WHITE/BLACK
In some vehicles with premium sound systems the user may encounter WHITE NOISE or HISSING.
Please attempt the above resistor set up to correct the issue.
Make sure its only on the FRONT channels. All resistors are 1/4 Watts (+/- 5%) or equivalent.
FOR 4.3” AND 8.4” SCREENS REPLACEMENTS
For replacing the radio in a vehicle with a 4.3” or 8.4” screen you will need to tap the Can signals along with Power, Ground and speakers from the factory
WHITE 22-Pin connector. Tap the wires as shown below. Again this connections are made on the factory WHITE 22-Pin connector. Not provided.
You can also Special Order this harness: Part Number CR-59UCH
22-PIN WHITE CONNECTOR
(NOT SUPPLIED)
SPECIAL ORDER CR-59UCH
Ground
Constant 12v
Can +
Can -
FACTORY AUDIO CONNECTIONS
PIN SIGNAL
8 = Right Rear-
9 = Right Rear+
10 = Right Front-
11 = Rright Front+
19 = Left Right-
20 = Left Right+
21 = Left Front-
22 = Left Front+
1
712
18
