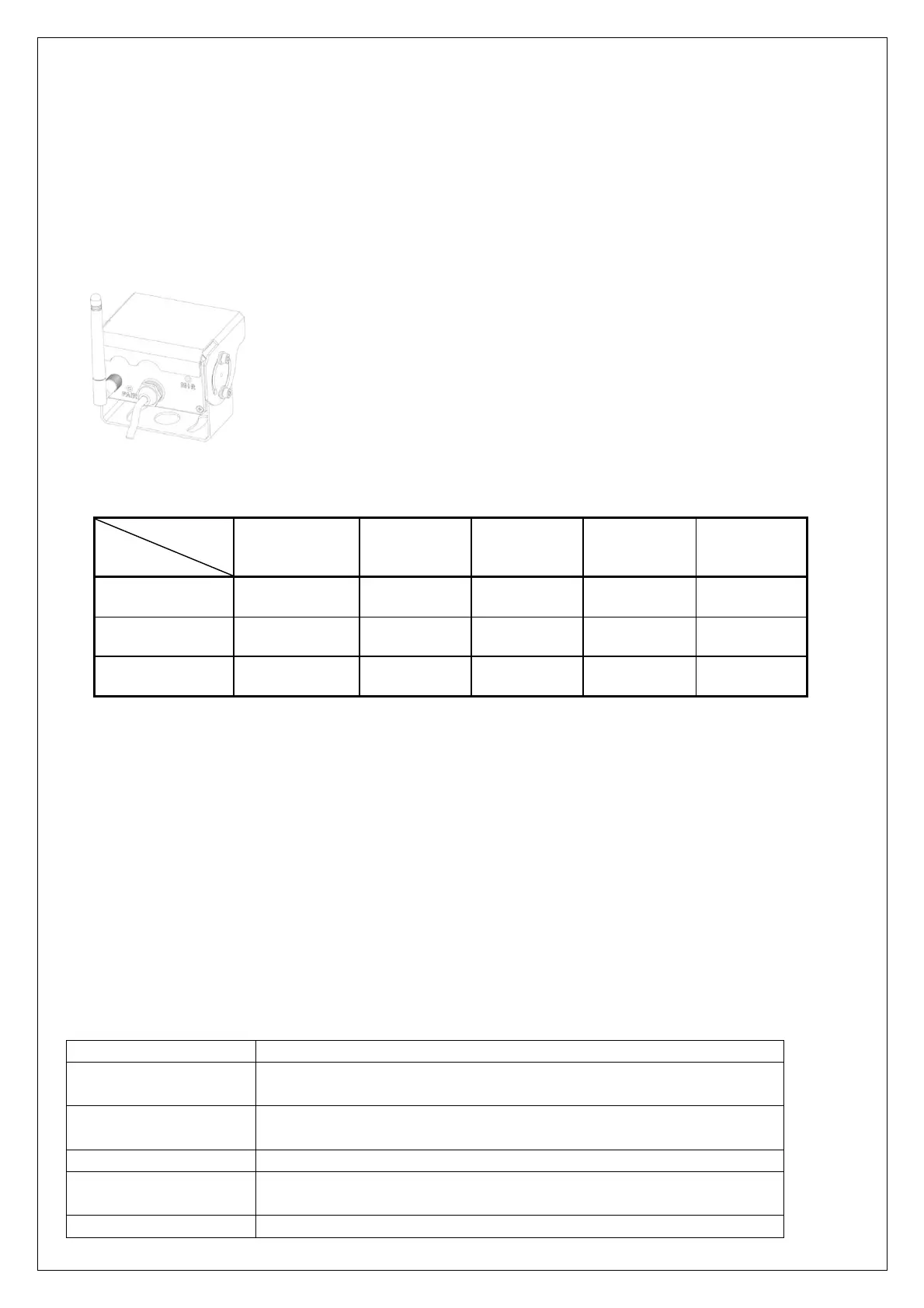

3. The monitor and cameras will synchronize themselves with each other after the camera has been switched
on for 5 s. After successful auto pairing, the picture will appear. If pairing is unsuccessful, the monitor
displays the message “No Signal”. Repeat the pairing procedure.
MANUAL PAIRING:
1. Choose the channel that needs to be set up. The monitor displays the message “PAIRING START 50” and a
counter that counts down 50 s.
2. Switch on the camera and press the pairing button.
3. The monitor and cameras will synchronize themselves with each other. After successful auto pairing, the
picture will appear. If pairing is unsuccessful, the monitor displays the message “No Signal”. Repeat the
pairing procedure.
RECORDING TIME
For the recording time of TF cards with different capacities, please refer to the table below. The actual recording time
is subject to the operating environment.
TF
MODE
8G
16G 32G 64G 128G
SINGLE
(640x480x1)
14h 28h 55h 110h 220h
QUAD
(320x240x4)
11h 22h 43h 86h 172h
SPLIT
(400x480x2)
13h 25h 50h 101h 201h
MAINTENANCE
- Risk of electric shock: Do not remove cover (or back). There are no user-serviceable parts inside the device. Let
an authorized service center to perform service.
- High voltage is present within the monitor. The opening of the case should be performed by professionals only.
- Remove all the cable connections from the monitor before cleaning the unit.
- Use a mild household detergent and clean the unit with a slightly damp, soft cloth.
- Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.
TROUBLE SHOOTING
NOTE! Occasionally, a few highlights or dark spots may occur on the LCD screen. This is a very common
phenomenon in active matrix display technology, and does not necessarily indicate any defects or faults. Never try to
repair the device yourself. In case of any problems, please turn off the device at once and contact your retailer or
importer. The monitor is a complex device. Any disassembly or modification may lead to damage and void the
warrantee.
Problem Possible Causes/Solutions
No picture, no sound
Improper connection of automobile adapter. Use of unauthorized power
supply. The power switch is in the OFF position.
No signal
Check whether the camera is connected to the power supply. Pair the
monitor and the camera again.
No sound Check whether the sound volume is turned off or set too low.
Dark picture
Check whether brightness and contrast are adjusted correctly.
No color Adjust the color settings.
