Cryomagnetics Model 4G Operating Instruction Manual 28
Inductance
Set this to the nominal inductance of the attached magnet. It is used to set PID parameters for the
sweep algorithm. If a low resistance persistent switch is used in parallel with the magnet, a lower
value than the actual magnet inductance may provide faster settling times without inducing
overshoot.
1.19.4. General Menu
The General menu is used to select computer interface parameters and other parameters common
to either one or two module units.

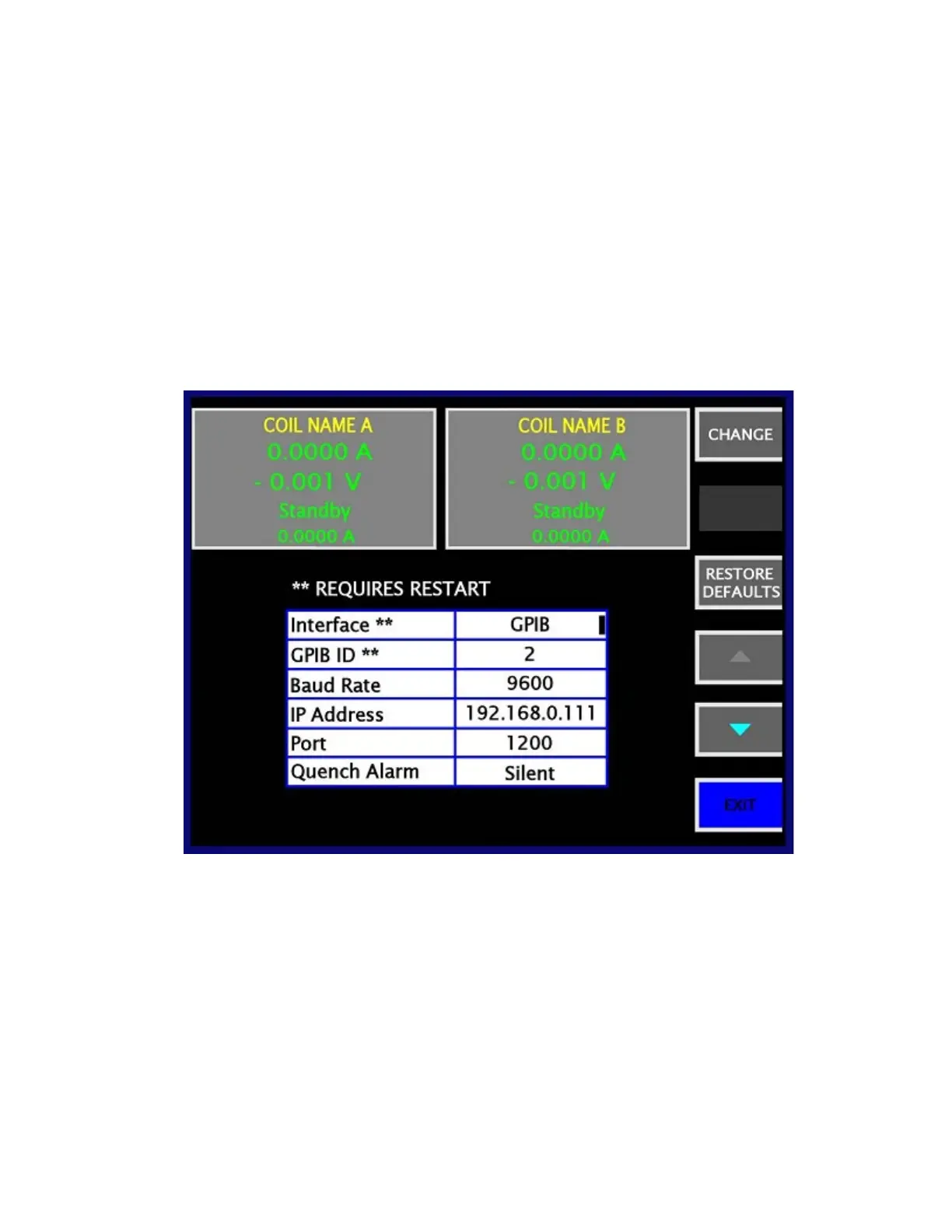

Figure 10: General Power Supply Setup Menu
