Raised Drip Tray– Top rack dishwasher safe. Push up and down. Position glass or cup over
center to avoid spills.
Bottle Adaptor Assembly – Located inside of cabinet. Connects to bottle to allow water to be
pumped into the hot and cold reservoirs.
Drip Tray Base and Cover – Top rack dishwasher safe. Snaps in and out. Position glass or cup
over center to avoid spills.
LED Nightlight – Located behind faucet levers. Provides additional light in low light
situations (activated when water lever is depressed).
Hot Red Water Lever (with child safety feature) – Push button into the cooler and depress
lever to dispense water. Release lever to stop.
SmartFlo™ Water Cartridge - Design allows for quick and easy sanitization of the cold
water system (Figures 1 & 2).
Hot Tank Power Switch – Located in the bottle installation area at top. Turn the Hot Tank
Power Switch Off to stop the hot water heating function.
Water Bottle – Not included. Uses standard 3, 4, or 5 gallon water bottles.
Cold Water Lever – Depress lever to dispense water. Release lever to stop.
Coffee and Water Outlet – Coffee, Hot and Cold water is dispensed from this location.
Blue Light "Heating" is on steady on the Brew Selection
panel indicates water is heating.
Blue Light "Load Coffee Pod" is on steady on Brew
Selection panel indicates water heating is at temperature and
ready for brewing.
Blue Light "Select Cup Size" is on steady on Brew Selection
panel indicates the cup size (6 oz, 8 oz, 10 oz) could be chosen
to brew coffee.
Blinking above faucet area and Blinking " Replace Bottle" on the Brew Blue light Blue light
Selection panel indicate that the bottle is nearly empty.
Blinking above the faucet area indicates that the SmartFlo™ Water Cartridge hasBlue light
reached its (suggested) usage limit and should be changed.
Function lights
FEATURES

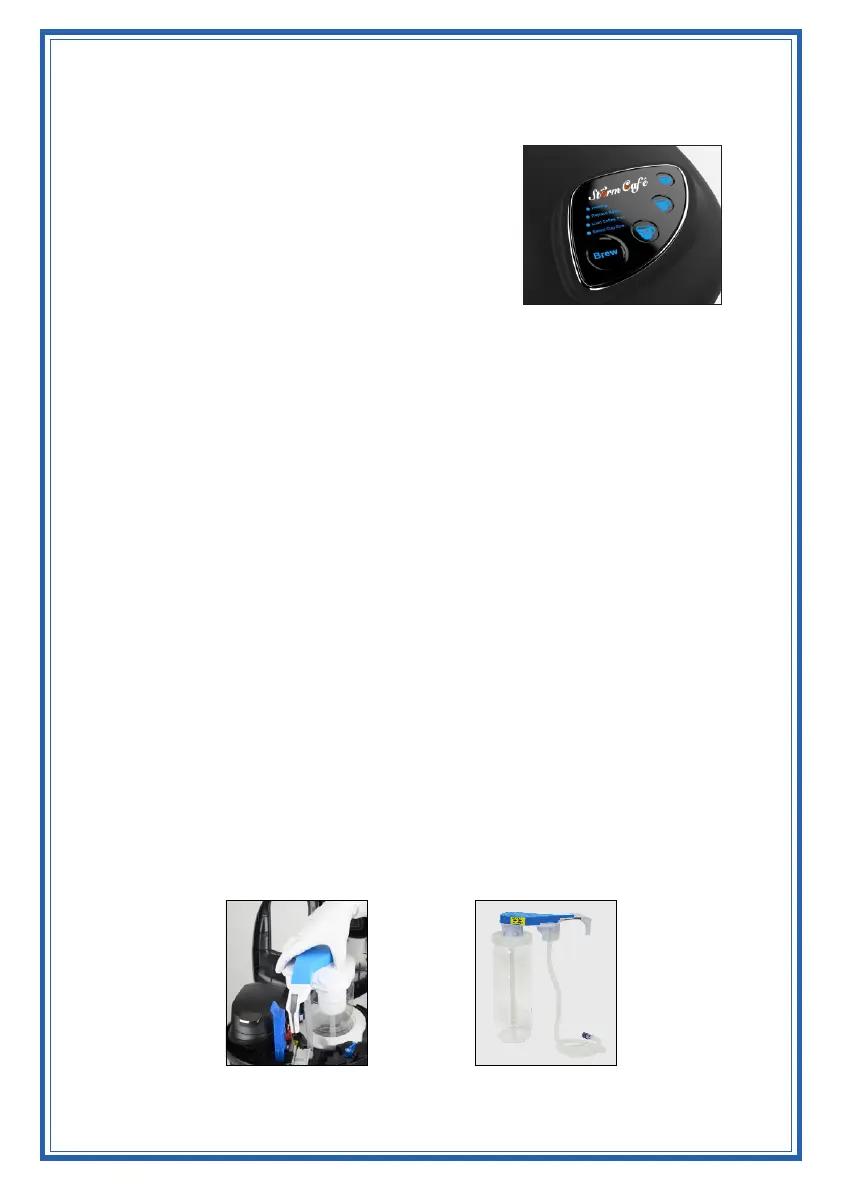

Figure 1 Figure 2
Page 07
