If no connection cable (0553.0104,
0553.0105) is ordered the sensor
will be supplied with a M12
connector plug. The user can
connect the supply and signal
cables as indicated in the
connection diagram.

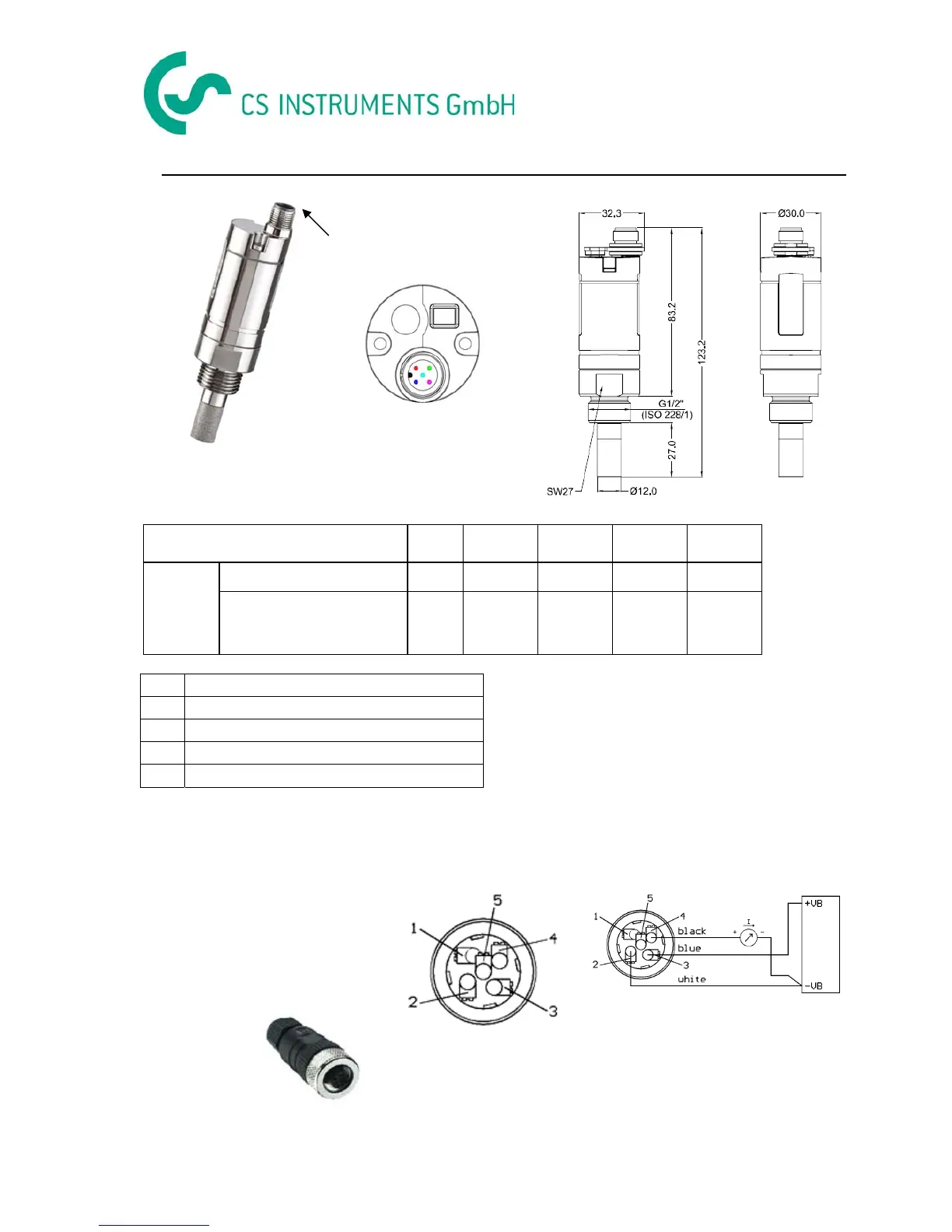

DIAGRAM OF INSTRUMENT
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
FA 410
Connector plug
SDI -VB +VB +I NC
Connection cable
0554.0104 (5 m)
0554.0105 (10 m)
brown white blue black
SDI Digital signal (internal data transfer)
-VB Negative supply voltage
+VB Positive supply voltage 16...30 VDC smoothed
+I Positive 4...20 mA signal
NC Not connected
M12 connector plug
Dimensions
M12 Connec
