CSI Alfa Laval IndiTop - Mounting Instructions

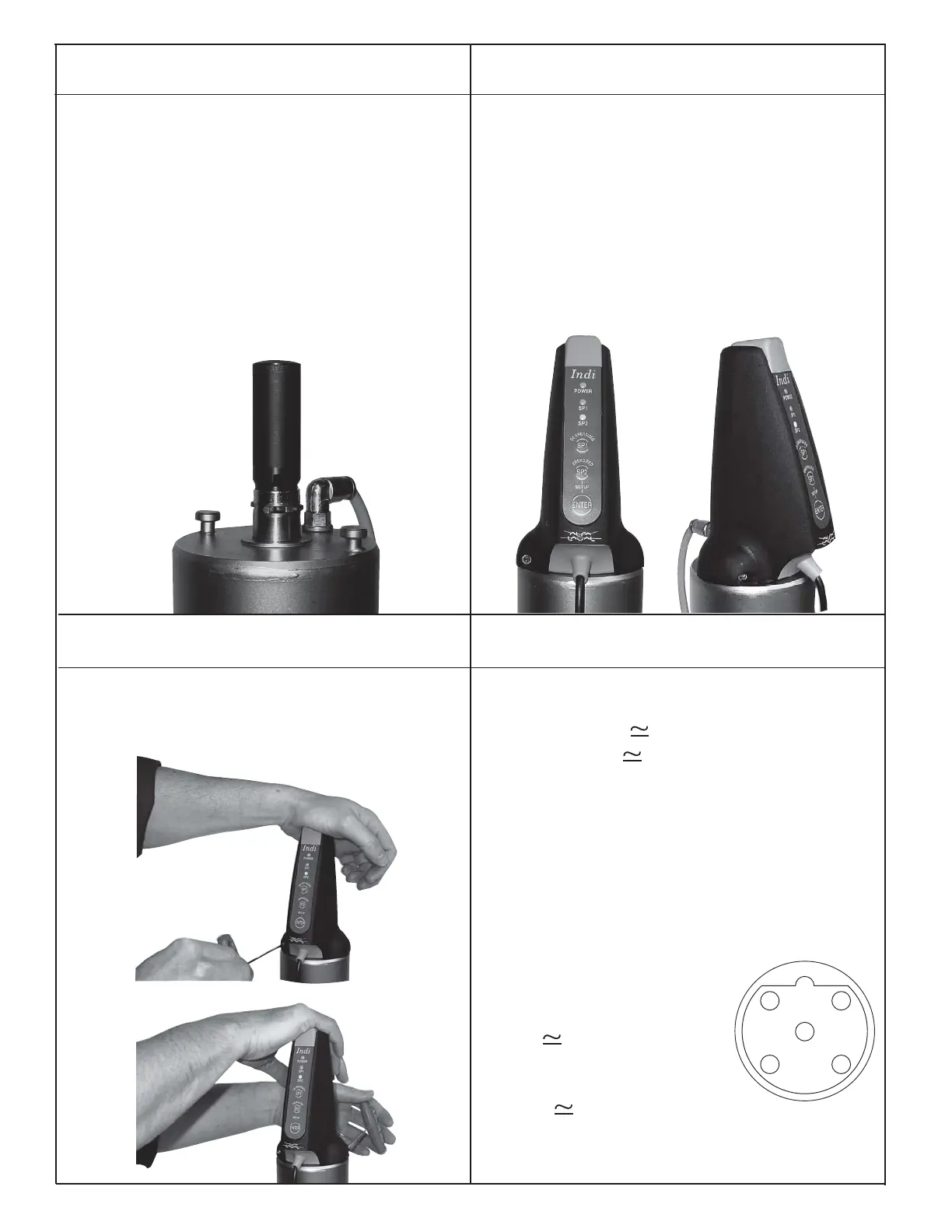

1. Mounting Instructions 2. Mounting Instructions
3. Mounting Instructions 4. Mounting Instructions
Fix the magnet on top of the actuator
Fit IndiTop over the magnet and the
"mushrooms" - frVU[VWWVZP[LHPYÄ[[PUN
CarLM\SS`Ä_IndiTop with the two allen
screws (max. torque 2,5 Nm), while pres-
sing down.
Connect wires as below:
Note:
Switch between PNP/NPN by connecting the brown
wire to either +/L1 (PNP) or -/N (NPN)
Plug Version:
Pin connections
1: -/N (
)
2: SP2 (Energized)
3: SP1 (De-energized)
4: +/L1 (
), 8-30V DC/AC
5: Remote setup bit (if not used,
connect to +/L1 (pin4))
Red: +/L1( ), 8-30V DC/AC
Black: -/N (
)
Green: SP1 (De-energized)
Yellow: SP2 (Energized)
Brown: PNP (+ or L1)/NPN (- or N)
Orange: Remote setup bit (If not used,
connect to +/L1)
5
1 2
4 3
