CST TP-48 User Manual

TP-48 User Manual
19
3.4 Detection
When printing paper, the moveable label sensor is used to detect paper. The label sensor moves
differently when using various kinds of paper. If user moves the sensor improperly, paper may not
be detected, therefore the printer could not print paper. The following instructions tell users how to
use label sensor correctly. Please read it carefully.
3.4.1 Continuous Paper
When printing continuous paper (Figure 1), the sensor shall be aimed at the left triangle below
(Figure 2), which is the original position.

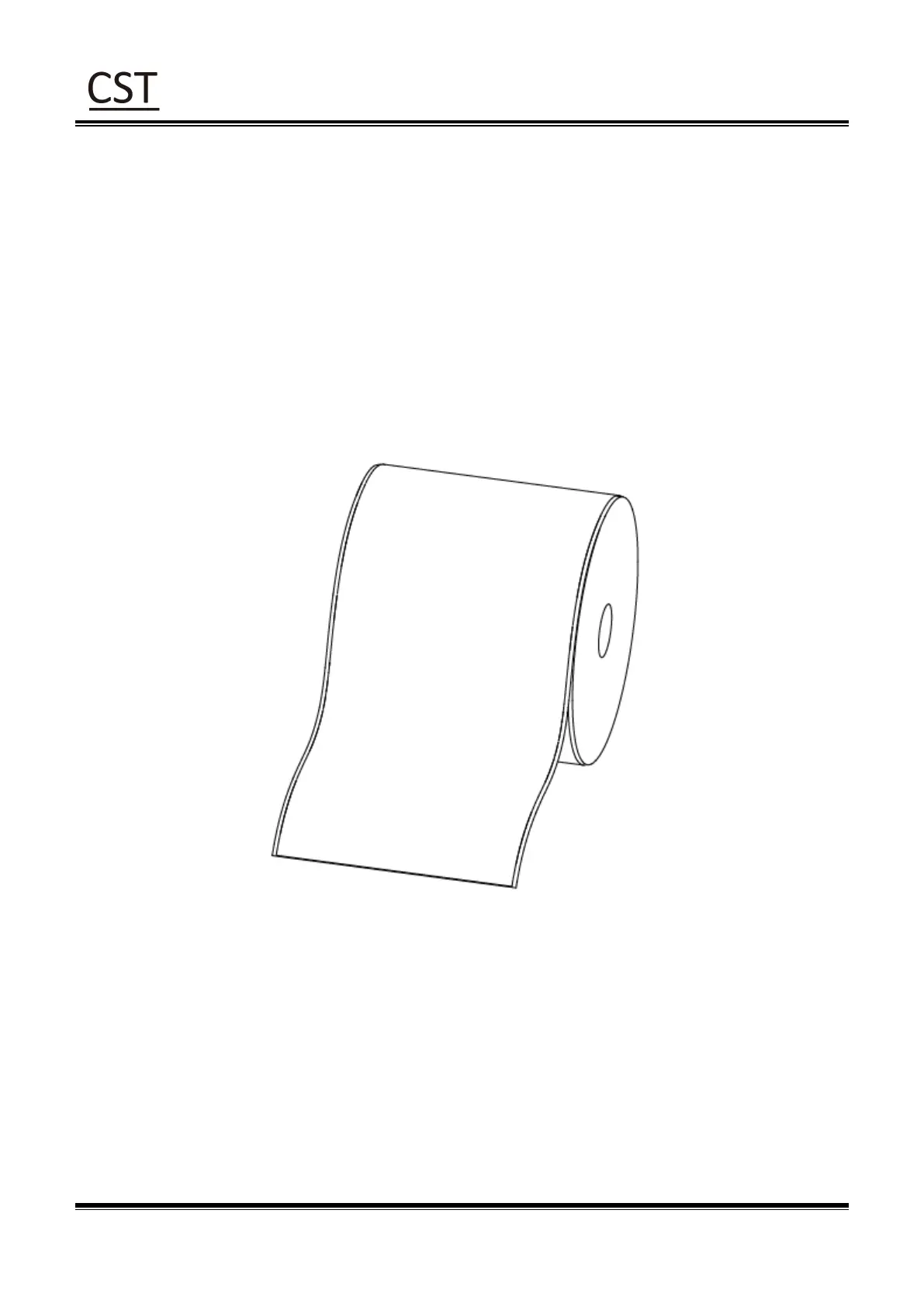

Figure 1 (Continuous Paper)

CST TP-48 Specifications

General

Brand	CST
Model	TP-48
Category	Printer
Language	English
