EN
READY TO USE
The table shows the estimated time for empty battery to 80% charge

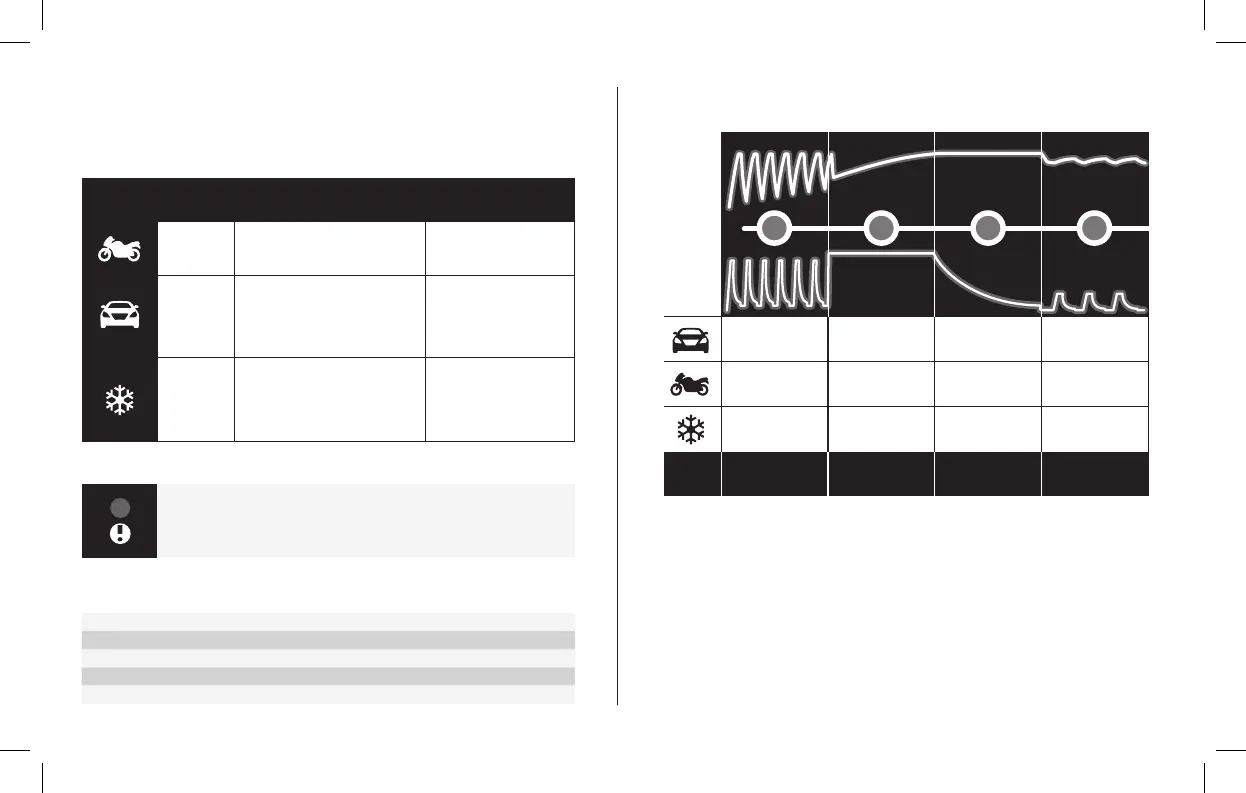

CHARGING PROGRAMS
Settings are made by pressing the MODE-button. After about two seconds the charger
activates the selected program. The selected program will be restarted next time the charger
is connected.
The table explains the different Charging Programs:
Program
Battery
Size (Ah)
Explanation Temp range
7–14Ah
Small battery program
14.4V/0.8A
Use for smaller batteries.
-20°C–+50°C
(-4ºF–122ºF)
14–75Ah
Normal battery program
14.4V/3.6A
Use for WET batteries, Ca/Ca,
MF, GEL batteries and many AGM
batteries.
+5°C–+50°C
(41ºF–122ºF)
14–75Ah
Cold weather program
14.7V/3.6A
Use for charging at low tempera-
tures and for power AGM batteries
like Optima and Odyssey.
-20°C–+5°C
(-4ºF–41ºF)
1
VOLTAGE (V)CURRENT (A)
PULSE
DESULPHATION BULK ABSORPTION
Increasing voltage
to 14.4V
3.6A
1
Charge cycle restarts
if voltage drops
14.4V 14.4V
Declining current
12.9V‒14.4V
3.6A
Increasing voltage
to 14.4V
0.8A
14.4V 14.4V
Declining current
12.9V‒14.4V
0.8‒0.4A
Increasing voltage
to 14.7V
3.6A
14.7V 14.7V
Declining current
12.9V‒14.7V
3.6A
2 3 4
CHARGING PROGRAM
ERROR LAMP
If the error lamp is lit, check the following:
— Is the chargers positive lead connected to the
batterys positive pole?
— Connect the charger according to page 3.
BATTERY SIZE (Ah) TIME TO 80% CHARGED
7Ah 7h
20Ah 5h
60Ah 13h
75Ah 17h
STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead
plates of the battery restoring the battery capacity.
STEP 2 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 3 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 4 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage
and gives a pulse when necessary to keep the battery fully charged.
20016105B MXS 3.6, Manual EAST8, Print file 001.indd 4 2011-04-04 12:00:30
