Geometry
Color
Status
Recall
Language
HOW TO USE ON-SCREEN ADJUSTMENT
B. PICTURE:
A. STATUS:

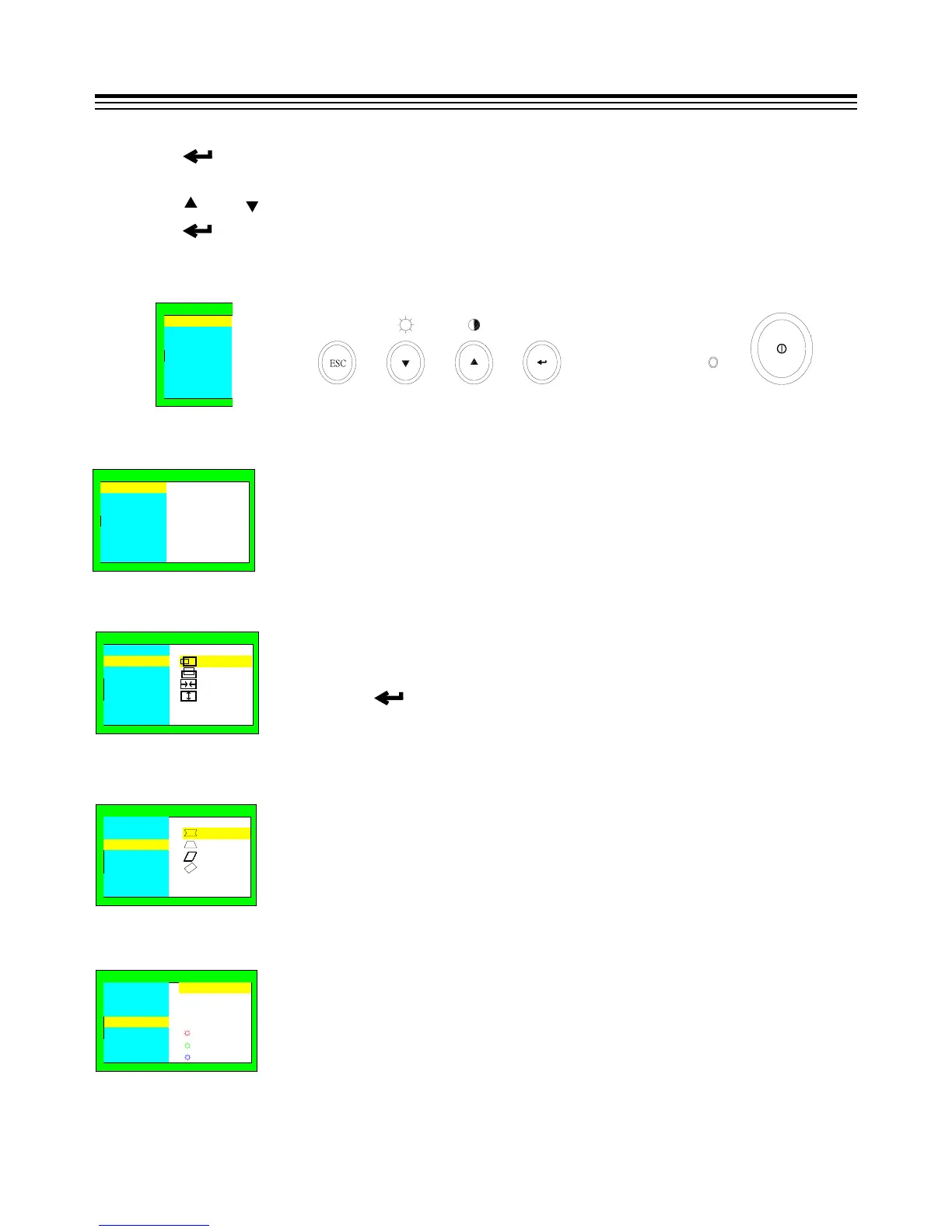

(1) Press " " to open the On-Screen menu. Six adjustment functions will appear on the
On-Screen menu.
Press " " or " " to scroll selections from top-down sequence.
Press " " to enter the item which is selected or to activate the preferred adjustments.
Press "ESC" to exit the On-Screen Menu or up level.
To display existing timing data of resolution and frequency.
Geomet ry
Color
Status
Recall
Language
71
50
77
63
H-Position
Geometry
Color
Status
Recall
Language
H: 68.5 KHz
V: 85.3 Hz
1024 x 768
1. Press "▲" or "▼" to select Vertical and Horizontal position,
Vertical and Horizontal size.
2. Press " " to preferred picture.
C. GEOMETRY:
D. COLOR:
Geomet ry
Color
Status
Recall
Language
9300°K
6500°K
User
85
82
79
a. Press "▼" or "▲" to select Side-pin, Balance, Keystone,
Parallel and Rotate.
b. Press "Enter" to preferred picture.
1. Press "▲" or "▼" to select various white color temperature
standards.
2. In User item presss "Enter" to confirm action color adjustment.
3. Press "▲" or "▼" to select Red, Green and Blue.
4. Press "▲" or "▼" increase or decrease density.
Geometry
Color
Status
Recall
Language
45
56
78
71
Sidepi n
