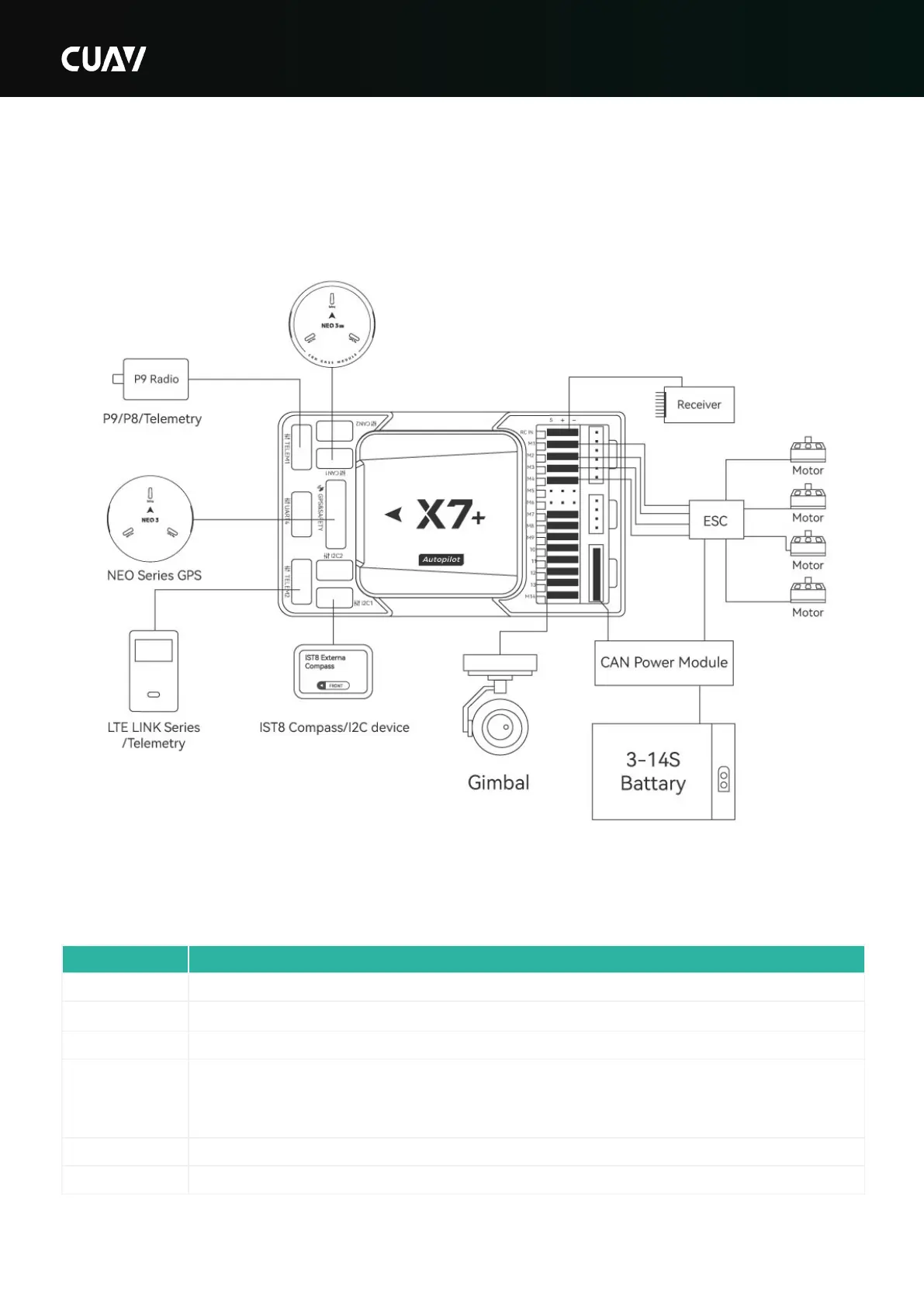

Hardware connection diagram
Take the quadcopter as an example:
Product connection
Interface Connected accessories
M1-M14 PWM signal output port, They can be connected to ESC and servo
RCIN Connect PPM / DSM / SBUS remote control receiver
Power A Connect HV_PM or other analog ammeter
Power C Connect to CAN protocol power management module such as CAN PMU Lite or
CAN PMU
GPS&SAFETY Connect GPS and safety switch
TELEM1 Connect P9 or other data transmission
