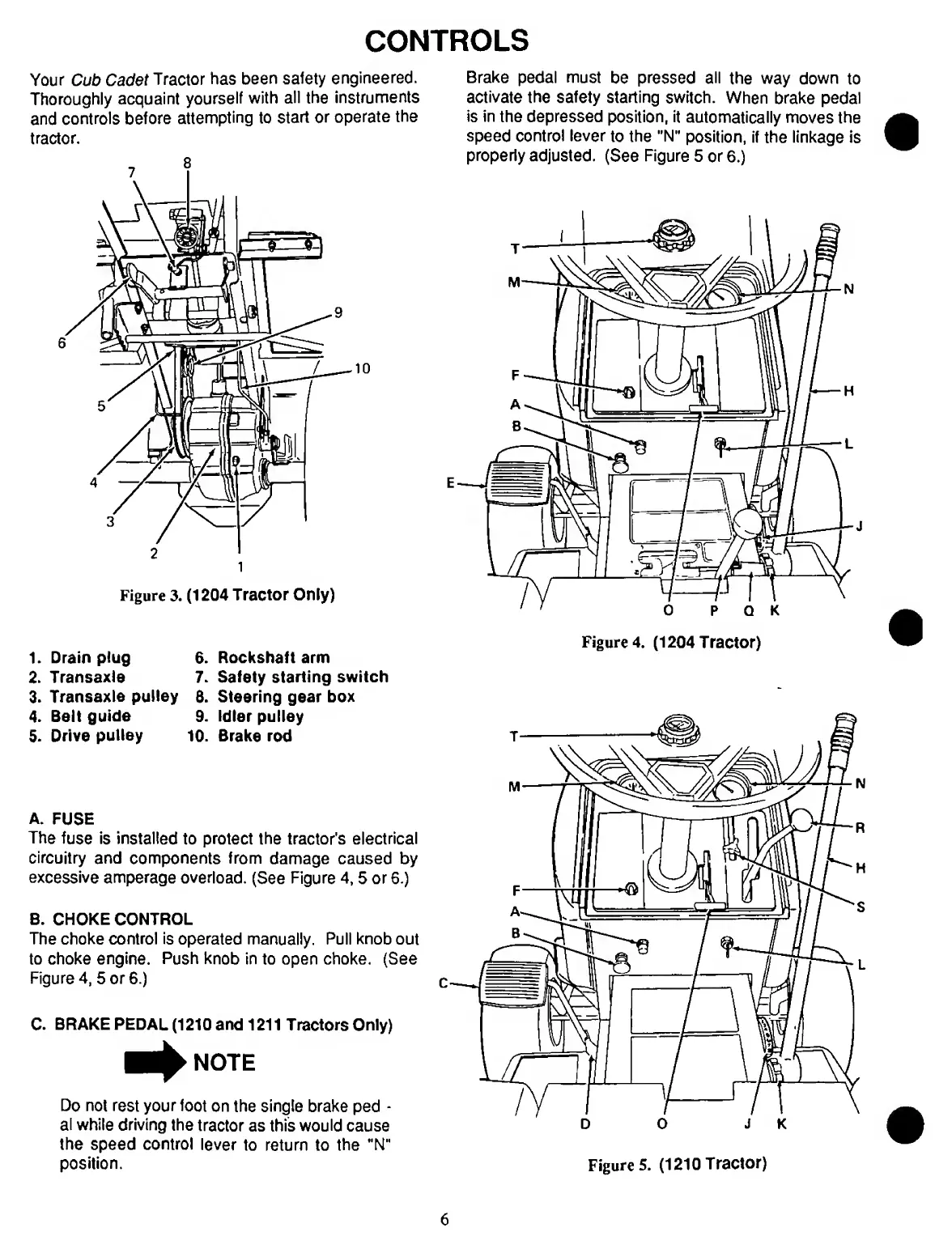

CONTROLS
Your Cub Cadet Tractor has been safety engineered.
Thoroughly acquaint yourself with all the Instruments
and controls before attempting to start or operate the
tractor.
Figure 3. (1204 Tractor Only)
1. Drain plug 6.
2. Transaxie 7.
3. Transaxle pulley 6.
4. Belt guide 9.
5. Drive pulley 10.
Rockshatt arm
Safety starting switch
Steering gear box
Idler pulley
Brake rod
A. FUSE
The fuse is installed to protect the tractor's electrical
circuitry and components from damage caused by
excessive amperage overload. (See Figure 4, 5 or 6.)
B. CHOKE CONTROL
The choke control is operated manually. Pull knob out
to choke engine. Push knob in to open choke. (See
Figure 4, 5 or 6.)
C. BRAKE PEDAL (1210 and 1211 Tractors Only)
■ ^NOTE
Do not rest your foot on the single brake ped -
al while driving the tractor as this would cause
the speed control lever to return to the "N"
position.
Brake pedal must be pressed all the way down to
activate the safety starling switch. When brake pedal
is In the depressed position, it automatically moves the
speed control lever to the "N" position, if the linkage is
properly adjusted. (See Figure 5 or 6.)
j
6
