HEIGHT
--INDICATOR

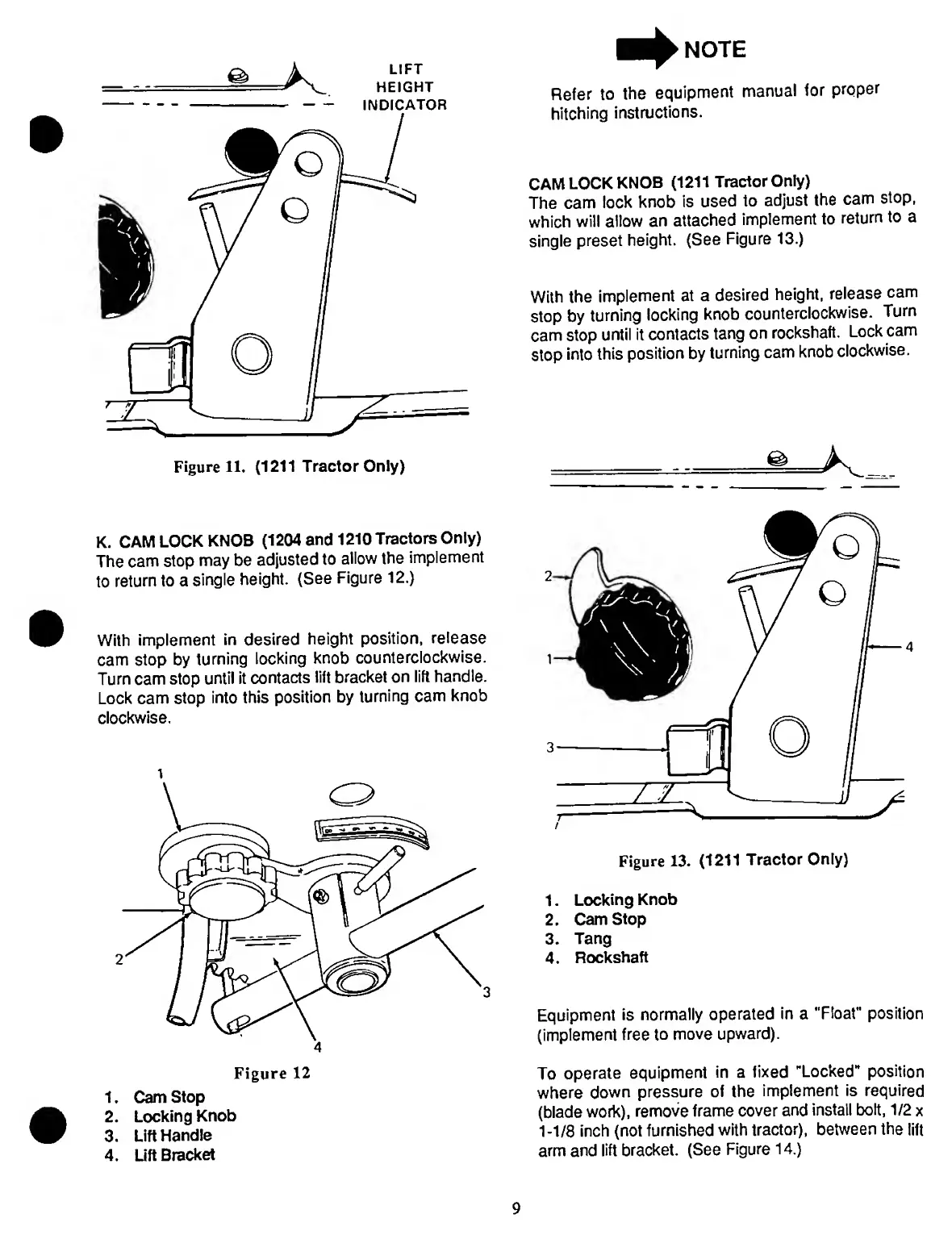

Figure 11. (1211 Tractor Only)
K. CAM LOCK KNOB (1204 and 1210 Tractors Only)
The cam stop may be adjusted to allow the implement
to return to a single height. (See Figure 12.)
With implement In desired height position, release
cam stop by turning locking knob counterclockwise.
Turn cam stop until it contacts lift bracket on lift handle.
Lock cam stop into this position by turning cam knob
clockwise.
1
Figure 12
1. Cam Stop
2. Locking Knob
3. Lift Handle
4. Lift Bracket
■ ^NOTE
Refer to the equipment manual for proper
hitching instructions.
CAM LOCK KNOB (1211 Tractor Only)
The cam lock knob is used to adjust the cam stop,
which will allow an attached implement to return to a
single preset height. (See Figure 13.)
With the implement at a desired height, release cam
stop by turning locking knob counterclockwise. Turn
cam stop until it contacts tang on rockshaft. Lock cam
stop into this position by turning cam knob clockwise.
S=>v
Figure 13. (1211 Tractor Only)
1. Locking Knob
2. Cam Stop
3. Tang
4. Rockshaft
Equipment Is normally operated In a "Float" position
(implement free to move upward).
To operate equipment in a fixed "Locked" position
where down pressure of the implement is required
(blade work), remove frame cover and install bolt, 1/2 x
1-1/8 inch (not furnished with tractor), between the lift
arm and lift bracket. (See Figure 14.)
9
