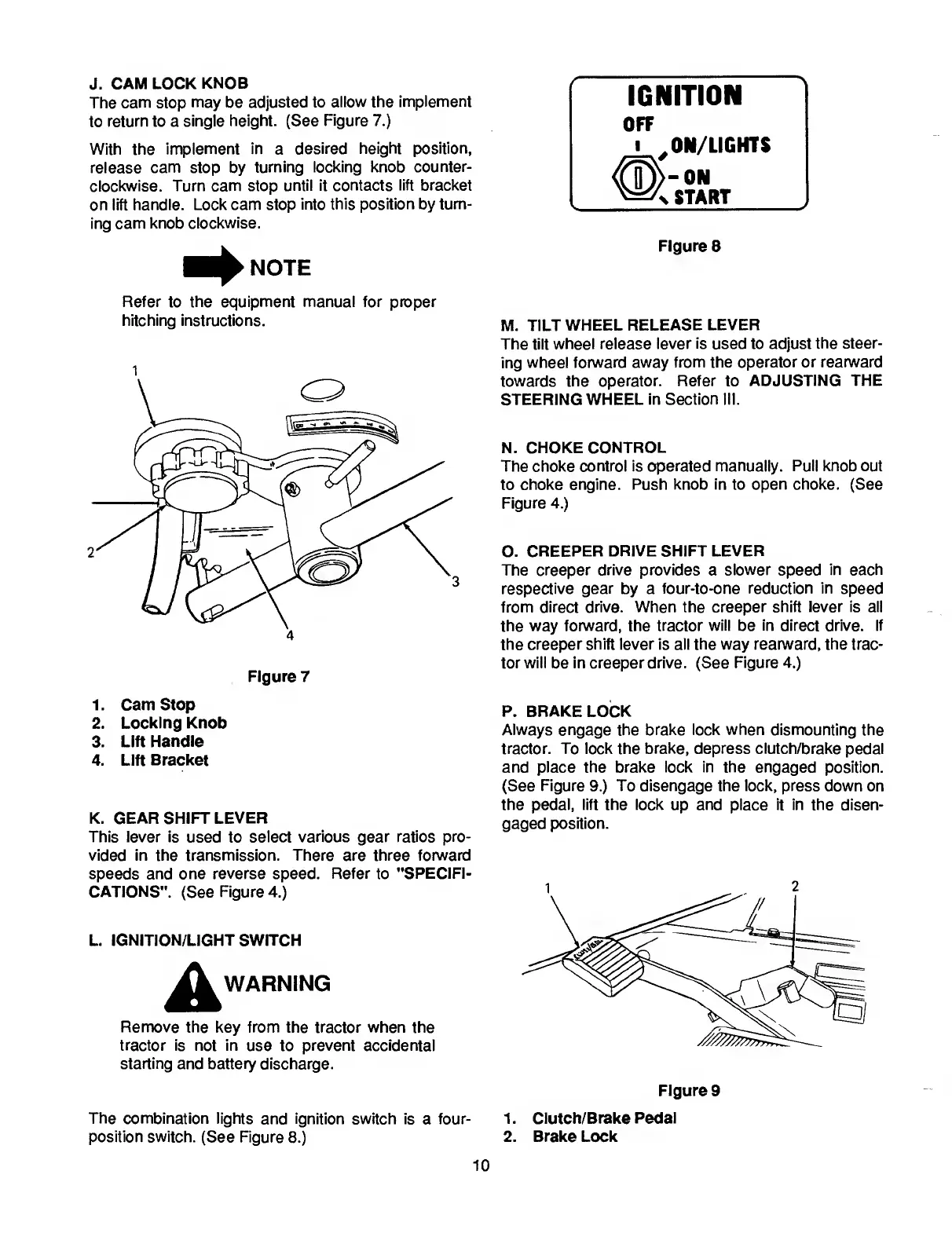

J. C AM LOCK KNOB
The cam stop may be adjusted to allow the implement
to return to a single height. (See Figure 7.)
With the implement in a desired height position,
release cam stop by turning locking knob counter¬
clockwise. Turn cam stop until it contacts lift bracket
on lift handle. Lock cam stop into this position by turn¬
ing cam knob clockwise.
■ ^NOTE
Figure 8
Refer to the equipment manual for proper
hitching instructions.
1
4
Figure 7
1. Cam Stop
2. Locking Knob
3. Lift Handle
4. Lift Bracket
K. GEAR SHIFT LEVER
This lever is used to select various gear ratios pro¬
vided in the transmission. There are three forward
speeds and one reverse speed. Refer to "SPECIFI¬
CATIONS". (See Figure 4.)
L. IGNITION/LIGHT SWITCH
WARNING
Remove the key from the tractor when the
tractor is not in use to prevent accidental
starting and battery discharge.
The combination lights and ignition switch is a four-
position switch. (See Figure 8.)
M. T ILT WHEEL RELEASE LEVER
The tilt wheel release lever is used to adjust the steer¬
ing wheel forward away from the operator or rearward
towards the operator. Refer to ADJUSTING THE
STEERING WHEEL in Section III.
N. CHOKE CONTROL
The choke control is operated manually. Pull knob out
to choke engine. Push knob in to open choke. (See
Figure 4.)
O. CREEPER DRIVE SHIFT LEVER
The creeper drive provides a slower speed in each
respective gear by a four-to-one reduction in speed
from direct drive. When the creeper shift lever is all
the way forward, the tractor will be in direct drive. If
the creeper shift lever is all the way rearward, the trac¬
tor will be in creeper drive. (See Figure 4.)
P. BRAKE LOCK
Always engage the brake lock when dismounting the
tractor. To lock the brake, depress clutch/brake pedal
and place the brake lock in the engaged position.
(See Figure 9.) To disengage the lock, press down on
the pedal, lift the lock up and place it in the disen¬
gaged position.
1 2
Figure 9
1. Clutch/Brake Pedal
2. Brake Lock
10
