Primer (If Equipped)
The primer is located on the front of the
air cleaner. Pressing the primer forces fuel
directly into the engine’s carburetor to aid in
starting the engine.
Engine Switch (If Equipped)
The engine switch is located on the engine. Turn the switch “On”
when starting the engine and turn it to “Off” when you want to
shut it down.
Choke (If Equipped)
The choke control is located on the engine above the engine
switch and when activated, closes the choke plate on the
carburetor and aids in starting the engine. Pull the choke control
to activate the choke on the engine. Use of the choke may not be
necessary if the engine is warm or the air temperature is high.
Fuel Shut-Off Valve (If Equipped)
The fuel shut off valve is located on the engine below the choke.
off when towing or transporting equipment.
Oil Drain
Removing the oil drain plug will drain the oil from the engine.
The engine is equipped with a side drain, and on select units, you
may also access a bottom drain.
Oil Fill Cap
Remove the oil fill cap to check the oil level and add oil.
Fuel Cap
Remove the fuel cap to add fuel.
Primer†
† If Equipped
Oil Drain
Muffler
Spark Plug
Air Cleaner
Starter Handle
Oil Fill Cap
Fuel Cap
Engine
Switch†
Choke†
Fuel Shut-Off Valve†

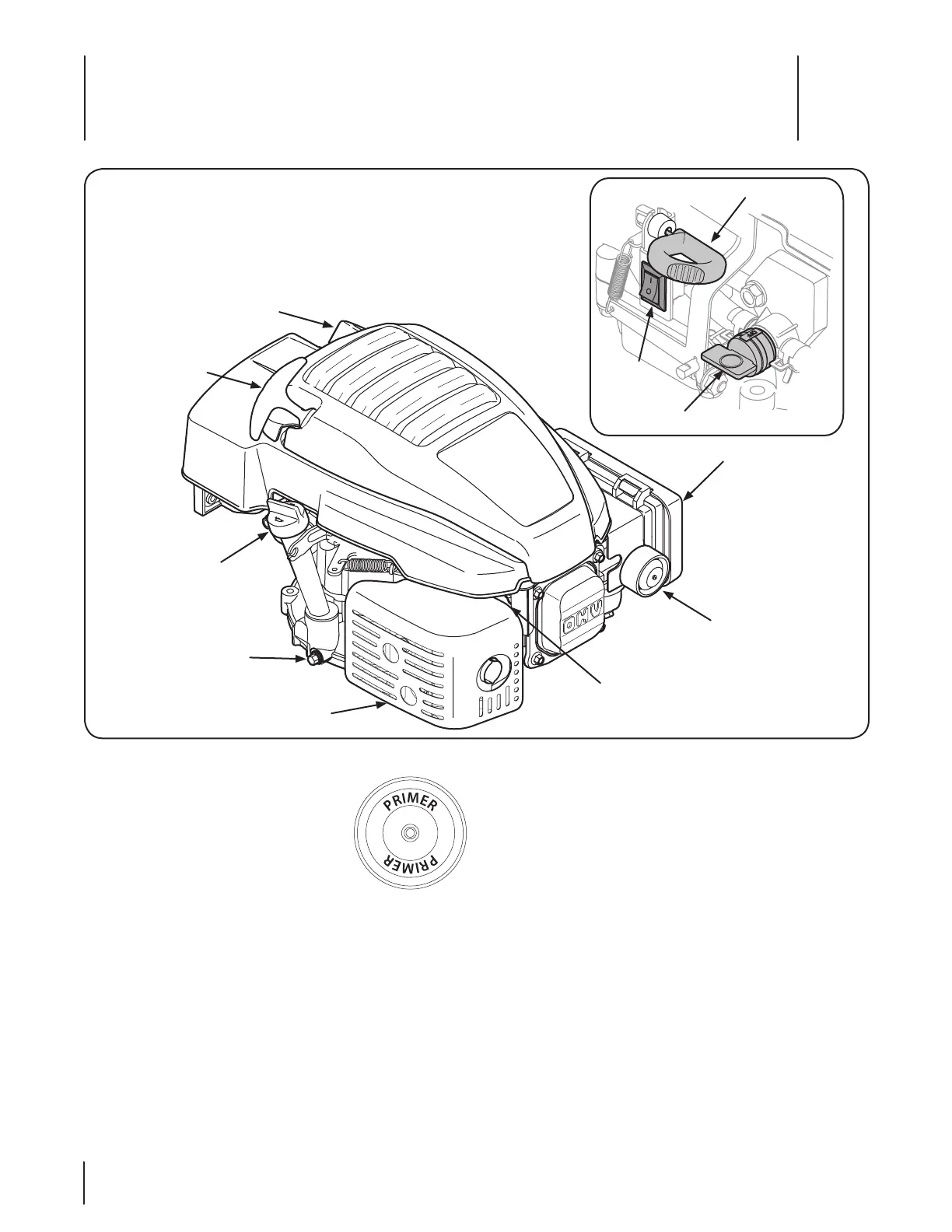

Figure 4-1
