operates an electric clutch. (See Figure 3.) This elec¬
tric clutch controls the engagement ("ON") or disen¬
gagement ("OFF") of the front PTO.
X. FUSES

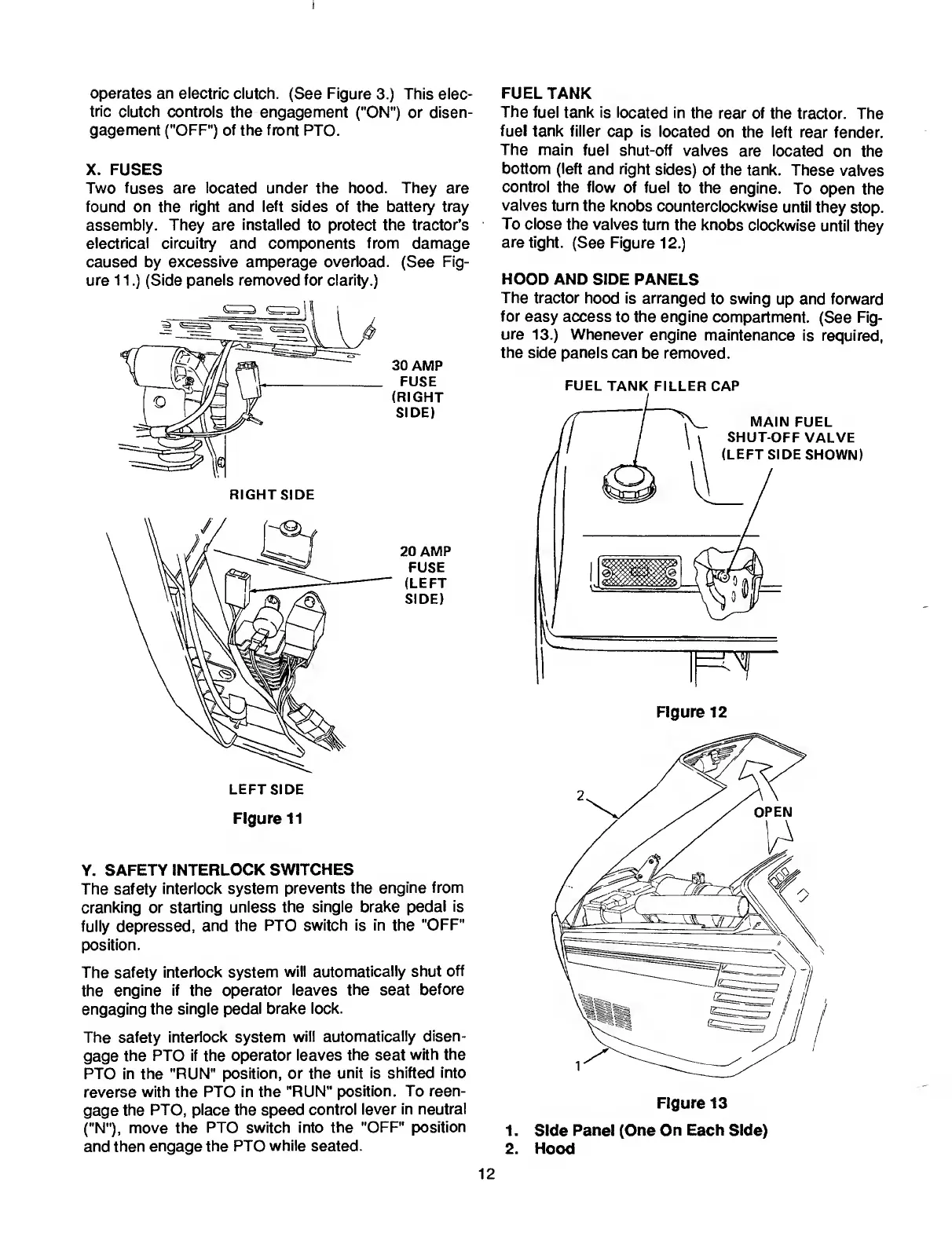

Two fuses are located under the hood. They are
found on the right and left sides of the battery tray
assembly. They are installed to protect the tractor’s
electrical circuitry and components from damage
caused by excessive amperage overload. (See Fig¬
ure 11.) (Side panels removed for clarity.)
30 AMP
FUSE
(RIGHT
SIDE)
20 AMP
FUSE
(LEFT
SIDE)
Y. SAFETY INTERLOCK SWITCHES
The safety interlock system prevents the engine from
cranking or starting unless the single brake pedal is
fully depressed, and the PTO switch is in the "OFF"
position.
The safety interlock system will automatically shut off
the engine if the operator leaves the seat before
engaging the single pedal brake lock.
The safety interlock system will automatically disen¬
gage the PTO if the operator leaves the seat with the
PTO in the "RUN" position, or the unit is shifted into
reverse with the PTO in the "RUN" position. To reen¬
gage the PTO, place the speed control lever in neutral
("N"), move the PTO switch into the "OFF" position
and then engage the PTO while seated.
FUEL TANK
The fuel tank is located in the rear of the tractor. The
fuel tank filler cap is located on the left rear fender.
The main fuel shut-off valves are located on the
bottom (left and right sides) of the tank. These valves
control the flow of fuel to the engine. To open the
valves turn the knobs counterclockwise until they stop.
To close the valves turn the knobs clockwise until they
are tight. (See Figure 12.)
HOOD AND SIDE PANELS
The tractor hood is arranged to swing up and forward
for easy access to the engine compartment. (See Fig¬
ure 13.) Whenever engine maintenance is required,
the side panels can be removed.
FUEL TANK FILLER CAP
1. Side Panel (One On Each Side)
2. Hood
12

Cub Cadet 1782 Specifications

General

Horsepower	17 HP
Transmission Type	Hydrostatic
Cutting Width	50 inches
Drive	2WD
Reverse Speed	0-3.5 mph
Blades	3
Fuel Capacity	3 U.S. gallons
Cutting Height	1.0 - 4.0 inches
