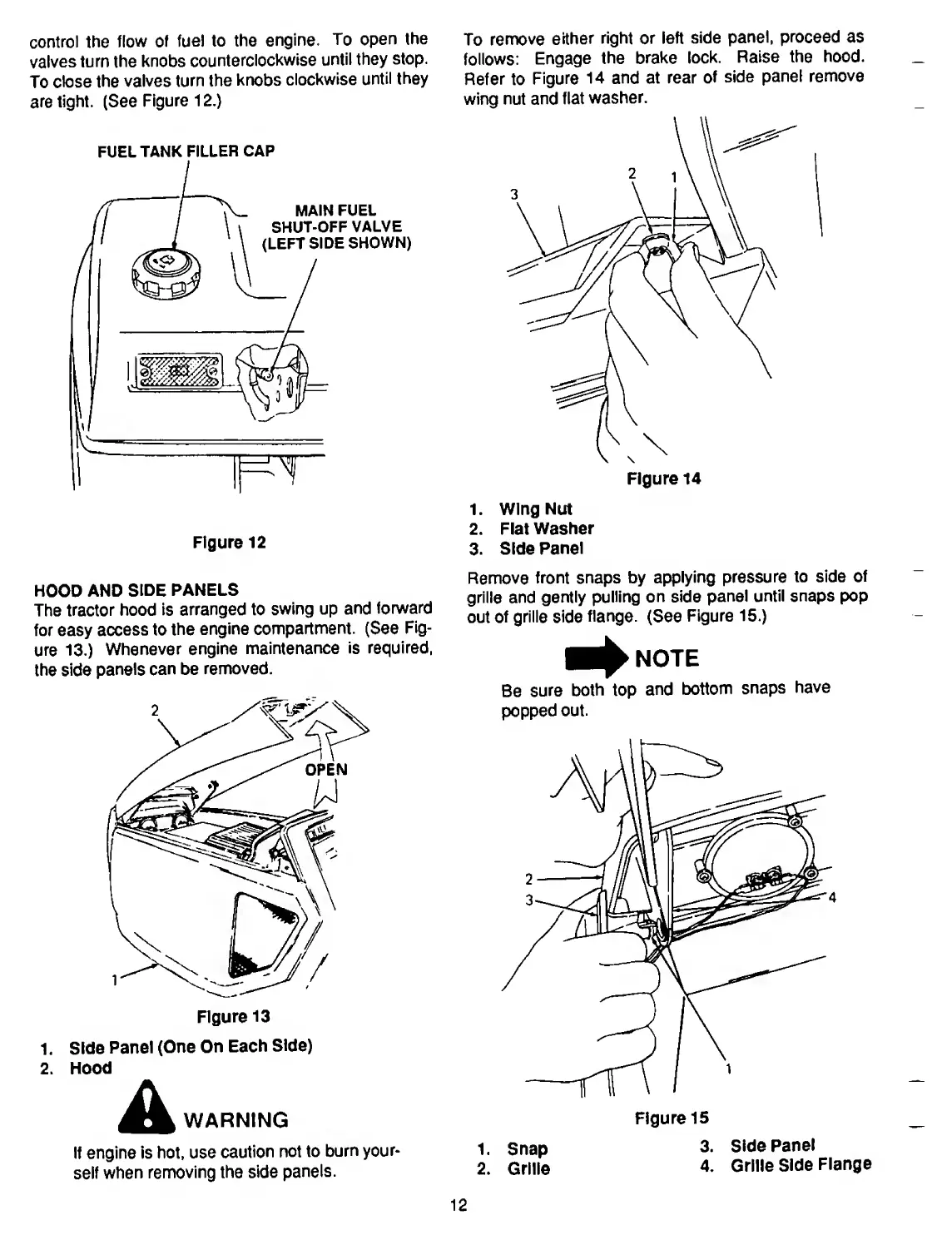

control the flow of fuel to the engine. To open the
valves turn the knobs counterclockwise until they stop.
To close the valves turn the knobs clockwise until they
are tight. (See Figure 12.)
FUEL TANK FILLER CAP
Figure 12
HOOD AND SIDE PANELS
The tractor hood is arranged to swing up and forward
for easy access to the engine compartment. (See Fig¬
ure 13.) Whenever engine maintenance is required,
the side panels can be removed.
Figure 13
1. Side Panel (One On Each Side)
2. Hood
WARNING
If engine is hot, use caution not to burn your¬
self when removing the side panels.
To remove either right or left side panel, proceed as
follows: Engage the brake lock. Raise the hood.
Refer to Figure 14 and at rear of side panel remove
wing nut and flat washer.
Figure 14
1. Wing Nut
2. Flat Washer
3. Side Panel
Remove front snaps by applying pressure to side of
grille and gently pulling on side panel until snaps pop
out of grille side flange. (See Figure 15.)
■ 1^ NOTE
Be sure both top and bottom snaps have
popped out.
Figure 15
1. snap 3. Side Panel
2. Grille A. Grille Side Flange
12

Cub Cadet 1863 Specifications

General

Engine Power	18 hp
Transmission	Hydrostatic
Cylinders	2
Drive	2WD
Number of speeds	Infinite
Axles	2
Front tire size	16x6.5-8
Rear tire size	23x10.5-12
Cutting Height	1.5-4 inches
Deck Material	Steel
Engine	Kohler Command
Brakes	Disc
