Cub Cadet 1863 User Manual

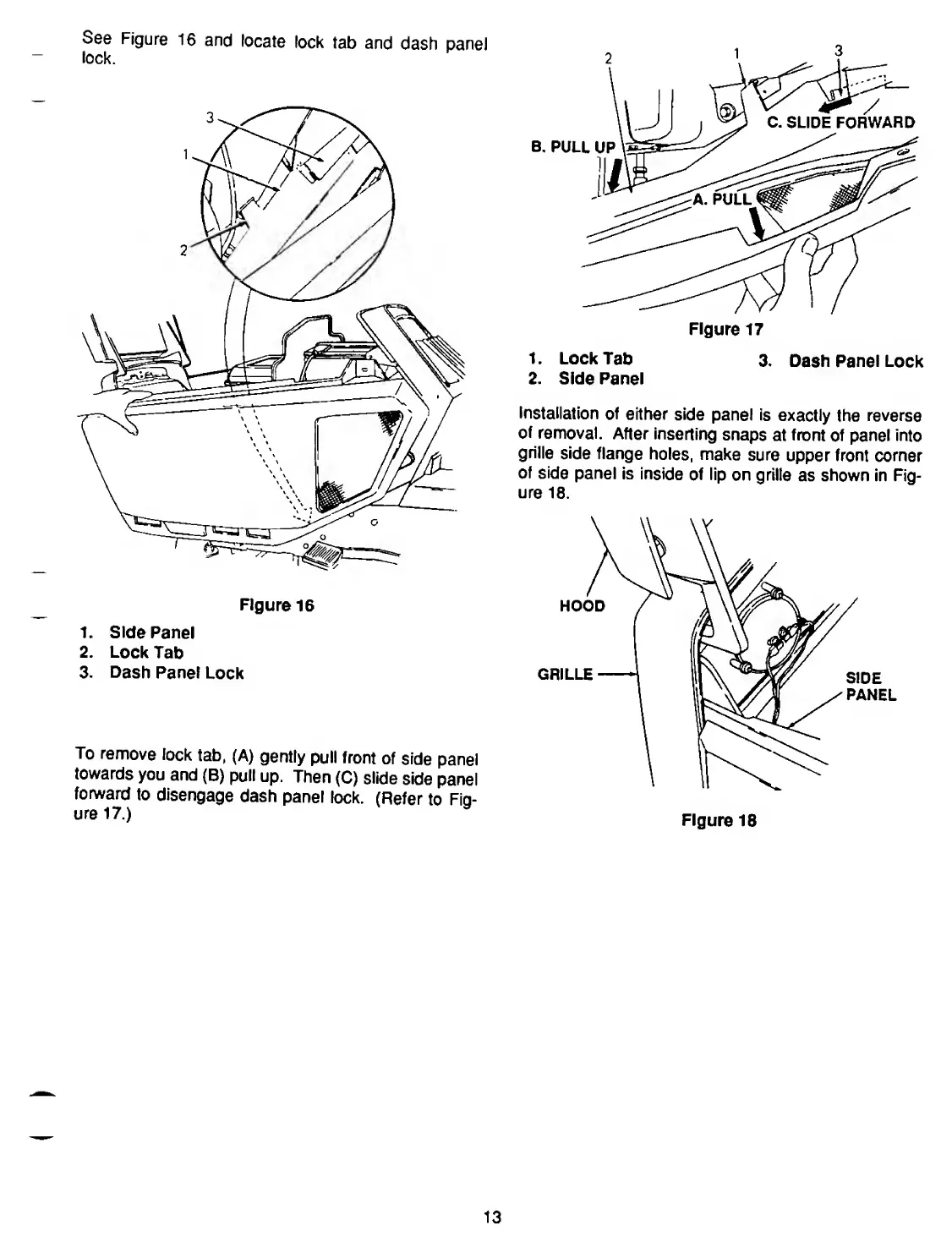

See Figure 16 and locate lock tab and dash panel
lock.
Figure 16
1. Side Panel
2. Lock Tab
3. Dash Panel Lock
To remove lock tab, (A) gently pull front of side panel
towards you and (B) pull up. Then (C) slide side panel
forward to disengage dash panel lock. (Refer to Fia-
ure 17.) y
Figure 17
1. Lock Tab 3. Dash Panel Lock
2. Side Panel
Installation of either side panel is exactly the reverse
of removal. After inserting snaps at front of panel into
grille side flange holes, make sure upper front corner
of side panel is inside of lip on grille as shown in Fig¬
ure 18.
Figure 18
13

Cub Cadet 1863 Specifications

General

Engine Power	18 hp
Transmission	Hydrostatic
Cylinders	2
Drive	2WD
Number of speeds	Infinite
Axles	2
Front tire size	16x6.5-8
Rear tire size	23x10.5-12
Cutting Height	1.5-4 inches
Deck Material	Steel
Engine	Kohler Command
Brakes	Disc
