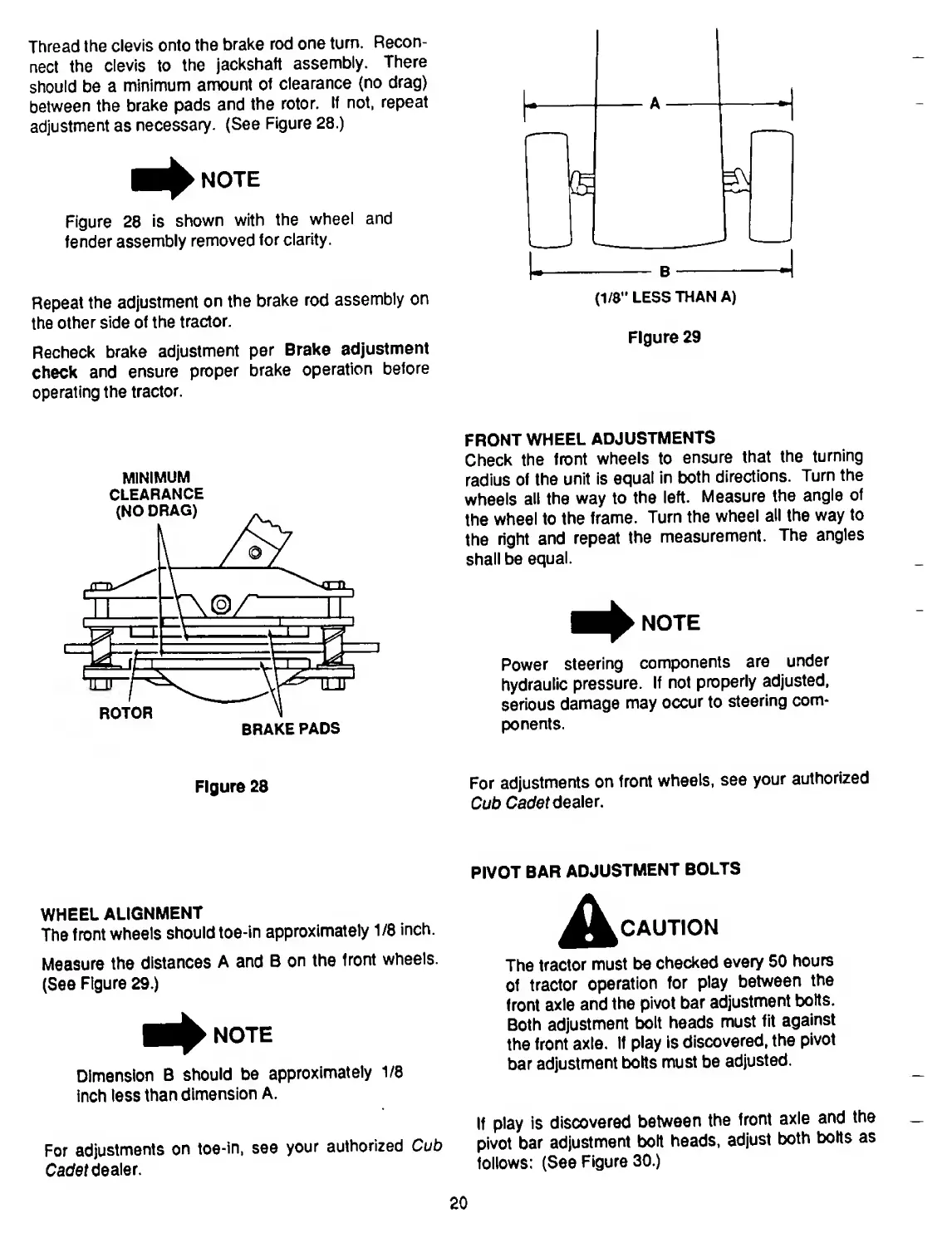

Thread the clevis onto the brake rod one turn. Recon¬
nect the clevis to the jackshaft assembly. There
should be a minimum amount of clearance {no drag)
between the brake pads and the rotor. If not, repeat
adjustment as necessary. (See Figure 28.)
■ ^NOTE
Figure 28 is shown with the wheel and
fender assembly removed for clarity.
Repeat the adjustment on the brake rod assembly on
the other side of the tractor.
Recheck brake adjustment per Brake adjustment
check and ensure proper brake operation before
operating the tractor.
Figure 29
MINIMUM
CLEARANCE
FRONT WHEEL ADJUSTMENTS
Check the front wheels to ensure that the turning
radius of the unit is equal in both directions. Turn the
wheels all the way to the left. Measure the angle of
the wheel to the frame. Turn the wheel all the way to
the right and repeat the measurement. The angles
shall be equal.
^^NOTE
Power steering components are under
hydraulic pressure. If not properly adjusted,
serious damage may occur to steering com¬
ponents.
Figure 28
For adjustments on front wheels, see your authorized
Cub Cadet dealer.
WHEEL ALIGNMENT
The front wheels should toe-in approximately 1/8 inch.
Measure the distances A and B on the front wheels.
(See Figure 29.)
NOTE
Dimension B should be approximately 1/8
inch less than dimension A.
PIVOT BAR ADJUSTMENT BOLTS
A CAUTION
The tractor must be checked every 50 hours
of tractor operation for play between the
front axle and the pivot bar adjustment bolts.
Both adjustment bolt heads must fit against
the front axle. If play is discovered, the pivot
bar adjustment bolts must be adjusted.
For adjustments on toe-in, see your authorized Cub
Cadet dealer.
20
If play is discovered between the front axle and the
pivot bar adjustment bolt heads, adjust both bolts as
follows: (See Figure 30.)

Cub Cadet 1863 Specifications

General

Engine Power	18 hp
Transmission	Hydrostatic
Cylinders	2
Drive	2WD
Number of speeds	Infinite
Axles	2
Front tire size	16x6.5-8
Rear tire size	23x10.5-12
Cutting Height	1.5-4 inches
Deck Material	Steel
Engine	Kohler Command
Brakes	Disc
