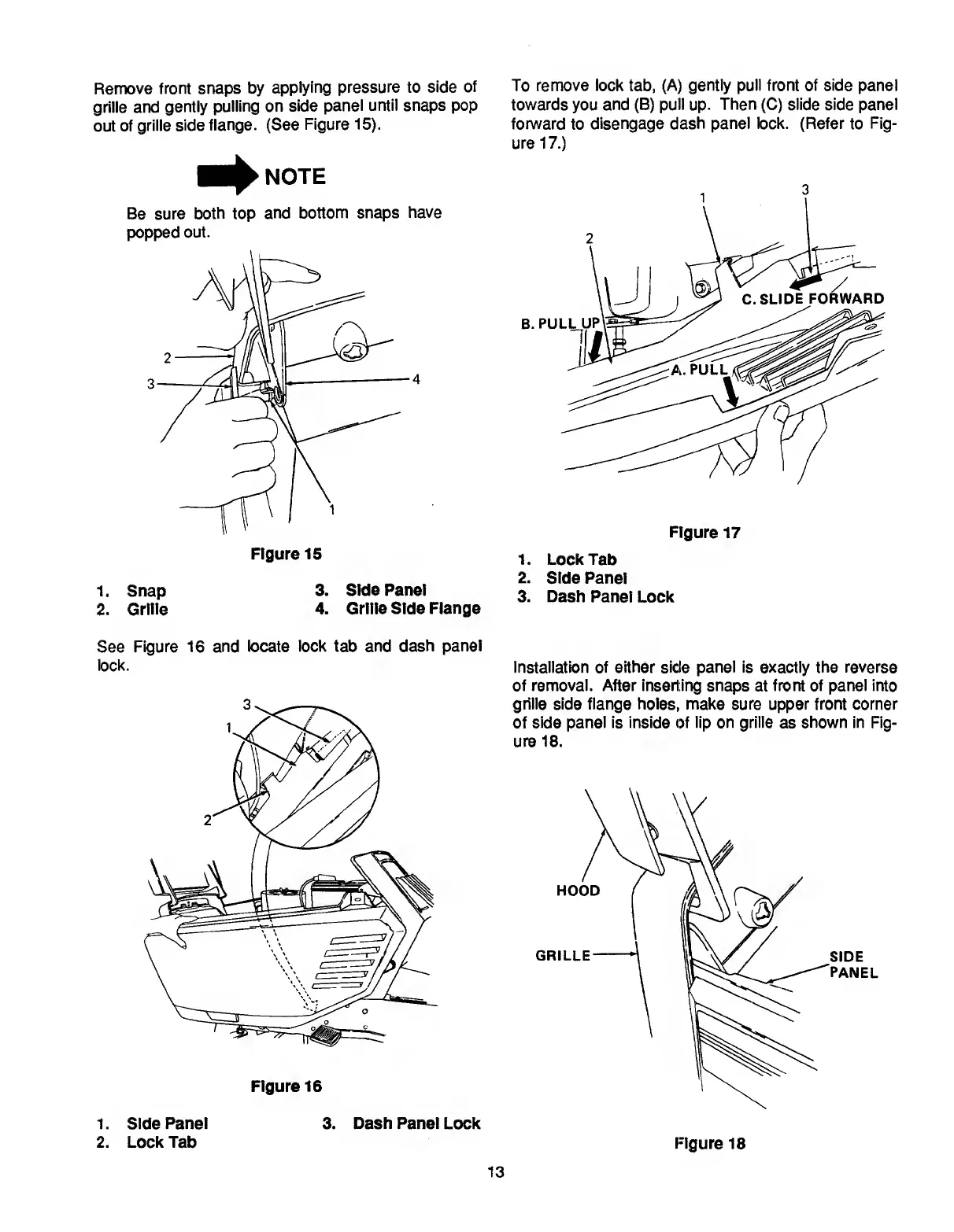

Remove front snaps by applying pressure to side of To remove lock tab, (A) gently pull front of side panel
grille and gently pulling on side panel until snaps pop towards you and (B) pull up. Then (C) slide side panel
out of grille side flange. (See Figure 15). forward to disengage dash panel lock. (Refer to Fig¬
ure 17.)
NOTE
Be sure both top and bottom snaps have
popped out.
1. Snap
2. Grille
Figure 15
3. Side Panel
4. Grille Side Flange
Figure 17
1. Lock Tab
2. Side Panel
3. Dash Panel Lock
See Figure 16 and locate lock tab and dash panel
lock. Installation of either side panel is exactly the reverse
of removal. After inserting snaps at front of panel into
grille side flange holes, make sure upper front corner
of side panel is inside of lip on grille as shown in Fig¬
ure 18.
1. Side Panel
2. Lock Tab
13
Figure 18
