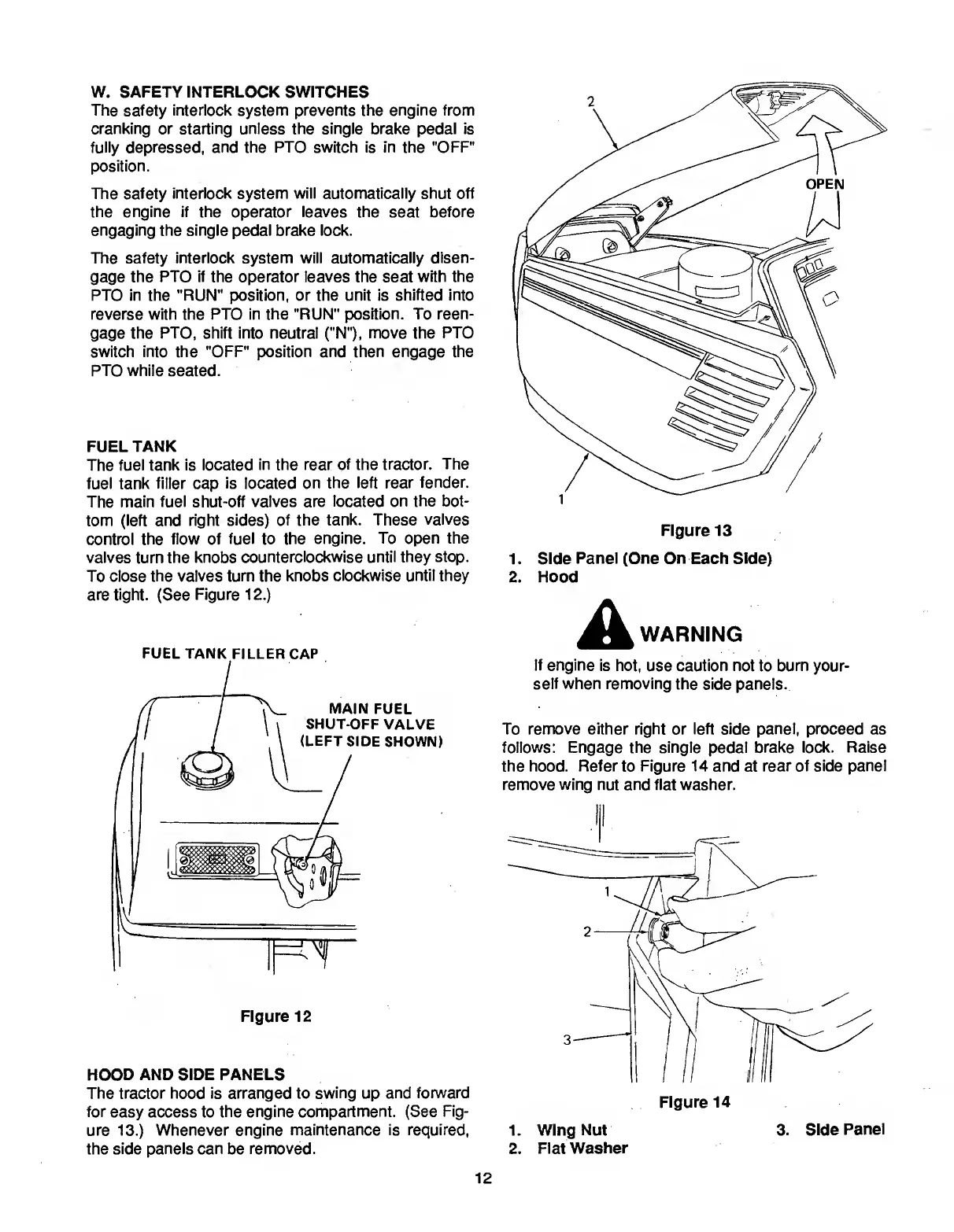

W. SAFETY INTERLOCK SWITCHES
The safety interlock system prevents the engine from
cranking or starting unless the single brake pedal is
fully depressed, and the PTO switch is in the "OFF"
position.
The safety interlock system will automatically shut off
the engine if the operator leaves the seat before
engaging the single pedal brake lock.
The safety interlock system will automatically disen¬
gage the PTO if the operator leaves the seat with the
PTO in the "RUN" position, or the unit is shifted into
reverse with the PTO in the "RUN" position. To reen¬
gage the PTO, shift into neutral ("N"), move the PTO
switch into the "OFF" position and then engage the
PTO while seated.
FUEL TANK
The fuel tank is located in the rear of the tractor. The
fuel tank filler cap is located on the left rear fender.
The main fuel shut-off valves are located on the bot¬
tom (left and right sides) of the tank. These valves
control the flow of fuel to the engine. To open the
valves turn the knobs counterclockwise until they stop.
To close the valves turn the knobs clockwise until they
are tight. (See Figure 12.)
FUEL TANK FILLER CAP
Figure 12
HOOD AND SIDE PANELS
The tractor hood is arranged to swing up and forward
for easy access to the engine compartment. (See Fig¬
ure 13.) Whenever engine maintenance is required,
the side panels can be removed.
Figure 13
1. Side Panel (One On Each Side)
2. Hood
A WARNING
If engine is hot, use caution not to burn your¬
self when removing the side panels.
To remove either right or left side panel, proceed as
follows: Engage the single pedal brake lock. Raise
the hood. Refer to Figure 14 and at rear of side panel
remove wing nut and flat washer.
1. Wing Nut 3. Side Panel
2. Flat Washer
12
