7se c t i O n 3 — cO n t e n t s O f ca r t O n
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
11
17
13

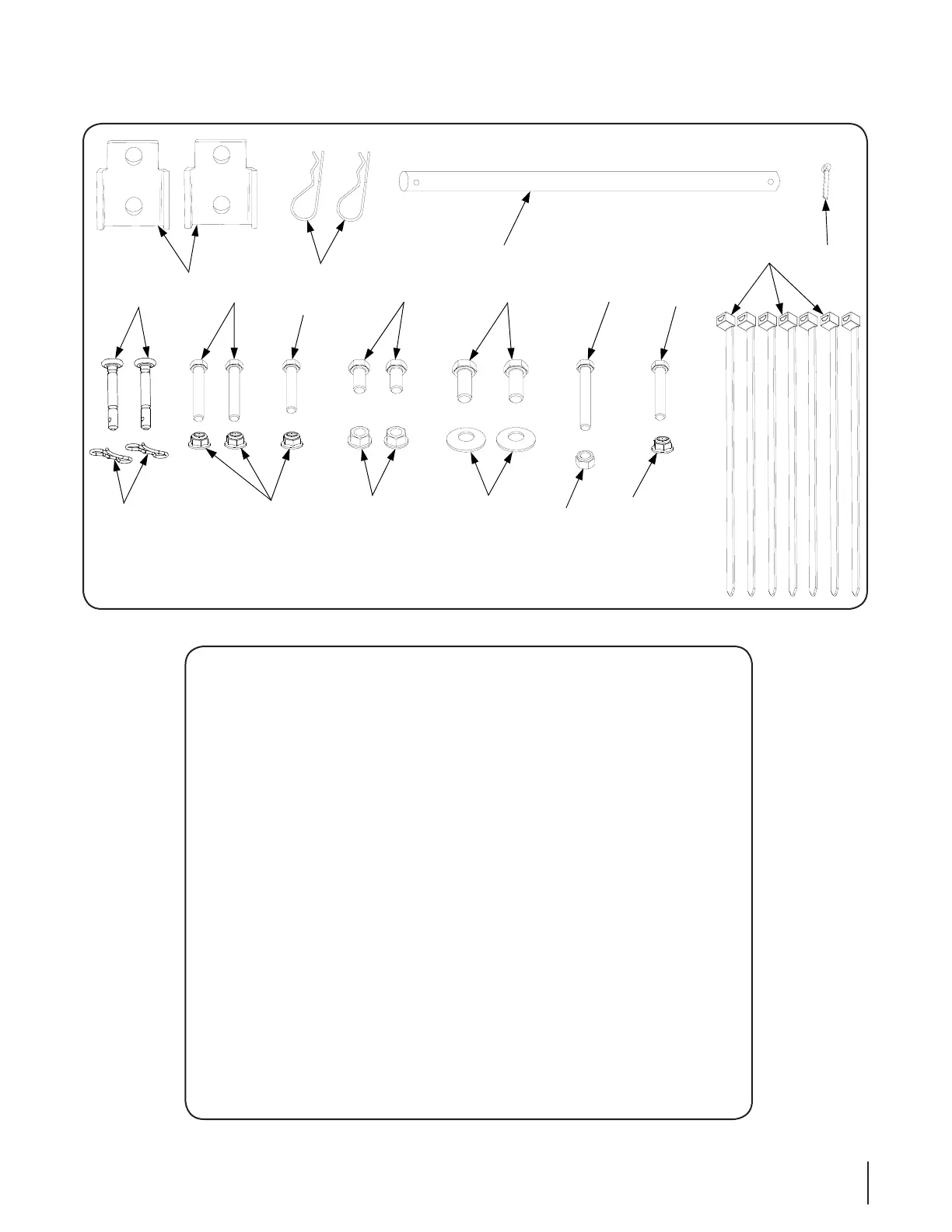

Figure 3-2
REF. PART # DESCRIPTION QUANTITY
1 703-2737 Frame Mounting Bracket 2
2 714-3020 Internal Cotter Pin 2
3 711-3401 Rod, .5 Dia x 12.5 Lg. 1
4 714-0507 Cotter Pin, 3/32 x 3/4 Lg 1
5 738-04124 Pin, Shear, 1/4 x 1-1/2 Lg (2 Extra) 2
6 710-3180 Hex Cap Screw, 5/16-18 x 1.75 GR5 2
7 710-0528 Hex Cap Screw, 5/16-18 x 1.25 GR5 1
8 710-0216 Hex Cap Screw, 3/8-16 x .75 Lg GR5 2
9 710-0505 Hex Cap Screw, 7/16-14 x 1.0 GR5 2
10 710-0772 Hex Cap Screw, 5/16-24 x 2.0 GR5 1
11 725-0157 Cable Tie 7
12 714-04040 Pin, Bow-Tie Cotter (2 Extra) 2
13 712-04063 Hex Flange Lock Nut, 5/16-18 4
14 712-0431 Hex Flange Lock Nut, 3/8-16 2
15 736-0407 Bell Washer, .45 x 1.0 x .062 2
16 712-0411 Hex Insert Lock Nut, 5/16-24 1
17 710-0805 Hex Cap Screw, 5/16-18 x 1.5 GR5 1
