Operating
Your Snow
Thrower
WARNING
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
Now that you have set up your snow thrower for opera-
tion, get acquainted with its controls and features. These
are described below and illustrated this page. This
knowledge will allow you to use your new equipment to
its fullest potential.
NOTE: For detailed starting instructions and more
information on all engine controls, refer to the Tecumseh
Engines manual packed separately and Starting The
Engine later in this section.
Shift Lever
The shift lever is located in the center
of the handle panel. Place the shift
lever into any of eight positions to
control the direction of travel and
ground speed.
Forward
Your snow thrower has six forward (F)
speeds, with position number one (1)
being the slowest speed.
Reverse
Your snow thrower has two reverse (R)
speeds, with position number one (1)
being the slower speed.
Know Your Snow Thrower
Choke Control
The choke control is found on the rear of the engine and
is activated by rotating the knob clockwise. Activating the
choke control closes the choke plate on the carburetor
and aids in starting the engine.
Throttle Control
The throttle control is located on the
engine. It regulates the speed of the
engine and will shut off the engine when
pushed down completely.
Primer
Depressing the primer forces fuel directly
into the engine’s carburetor to aid in
cold-weather starting.
Oil Fill
Engine oil level can be checked and oil
added through the oil fill.

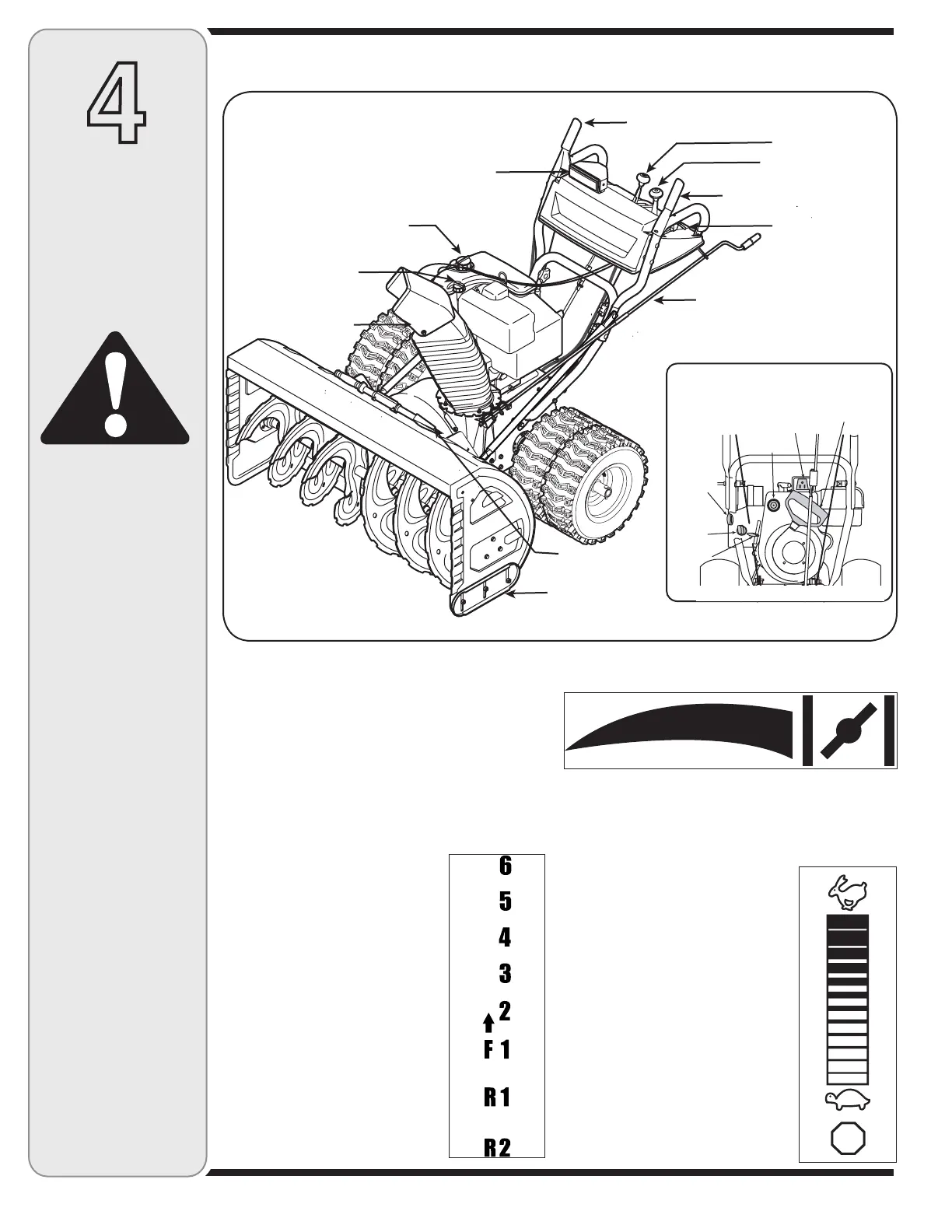

Figure 4-1
Engine Controls
Recoil Starter
Handle
Electric Starter Outlet
Primer
Ignition
Key
Choke
Control
Throttle
Control
Drive Control
Headlight
Gas Cap
Oil Fill
Chute
Assembly
Clean-Out
Tool
Auger Control
Shift Lever
Chute Tilt
Control
Wheel Steering
Control
Chute
Directional
Control
Skid Shoe
