Cub Cadet 3204 - Tractor Controls Overview

10
SECTION 6: CONTROLS

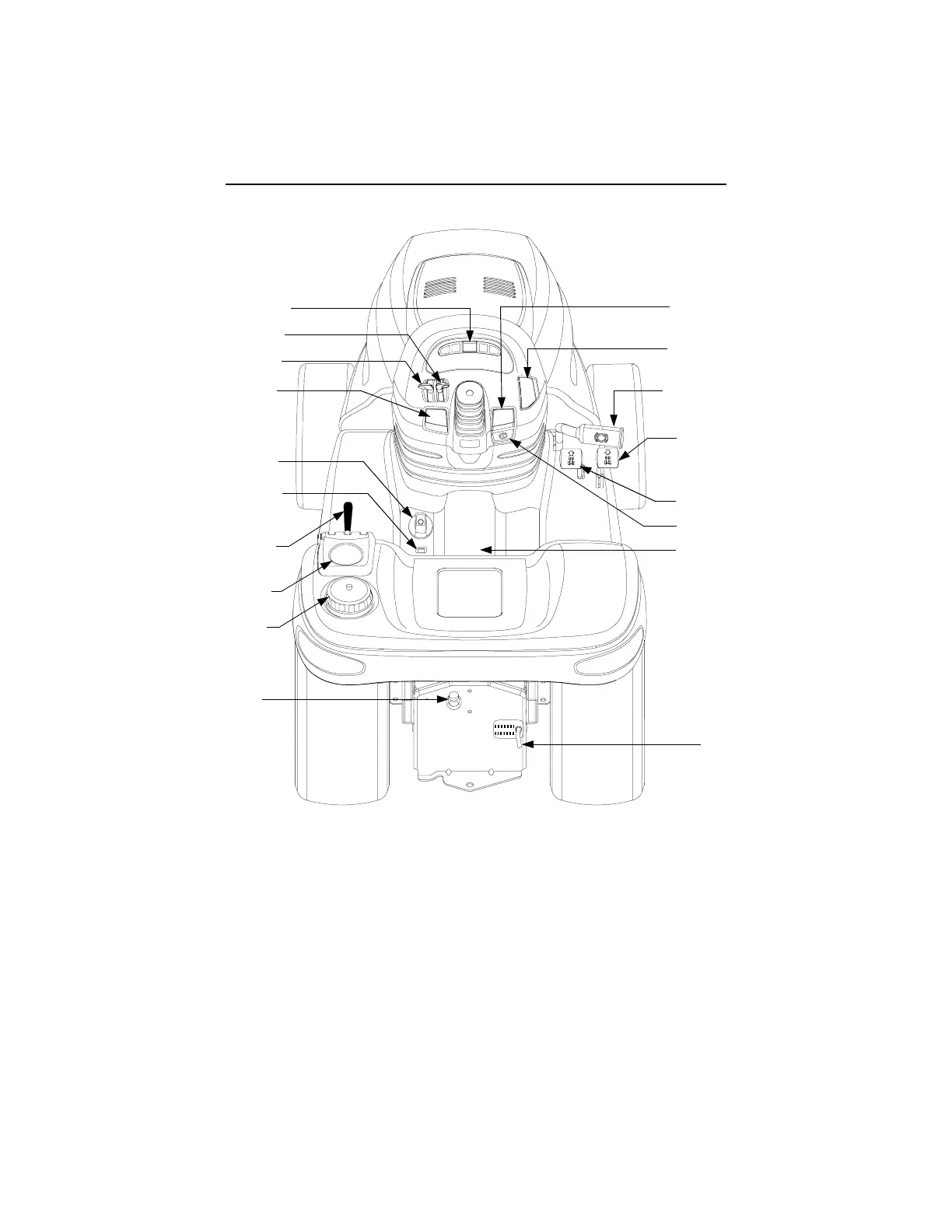

Figure 3
A
B
C
D
E
G
F
H
I
J
K
L
M
N
O
P
R
(Not Shown)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Parking Brake Lever
PTO Switch
Brake Pedal
Reverse Pedal
Forward Pedal
Center Height Position Indicator
Ignition/Light Switch
Transmission Release Rod
Transmission Oil Fill/Dipstick
Fuel Fill Cap
Cup Holder
Hydraulic Lift Lever
Cruise Control Lever
Choke Lever
Throttle Lever
Seat Adjustment Lever (Not Shown)
Deck Height Adjustment Knob
* Steering Wheel and Seat Removed For Clarity
Q
Indicator Light PodR
