13
Seat Adjustment Lever
The seat adjustment lever is located
below the seat. This lever is used to
adjust the seat forward or back.
Deck Height Adjustment Knob
The deck height adjustment knob is
located on the left running board (See
Figure 10). Use this knob to set (and
hold) your desired deckstop position
for the mower deck, regardless of
whether the deck caster wheels
contact the ground.

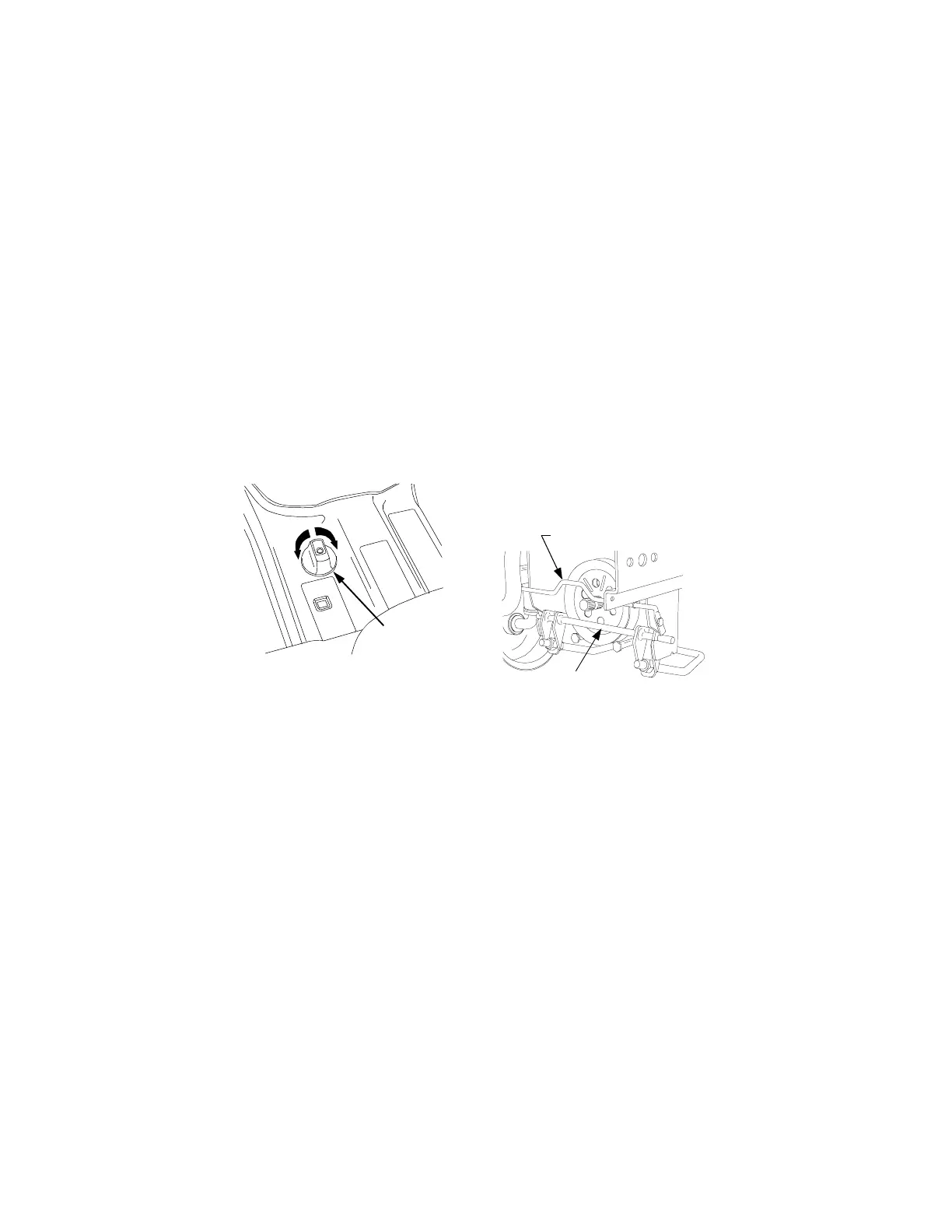

Figure 10
Each full rotation of the adjustment
knob equals approximately a 1/4 inch
adjustment in the deck height setting,
and there are four detent positions per
rotation.
Always use the tractor lift system to
raise the deck before turning the
adjustment knob.
Deck Front Lift Rod Assembly
For shipping purposes, the deck front
lift rod assembly has been installed on
the tractor. Cut the tie strap holding
the lift rod assembly to the tractor;
then pull downward on the quick latch
rod at the front of the tractor to remove
the lift rod assembly.
Figure 11
RAISE
LOWER
Height
Adjustment
Knob
Quick Latch Rod
Lift Rod Assembly
