IMPORTANT:
If gear selector buttons fail to work after
making brake adjustment, adjust brake switch actuator
upwards. If it is found that the gear selector buttons
operate before the vehicle comes to a complete stop,
adjust brake switch actuator downwards. To adjust,
loosen brake switch actuator bolts, then move the
actuator up or down accordingly. See Figure 21.

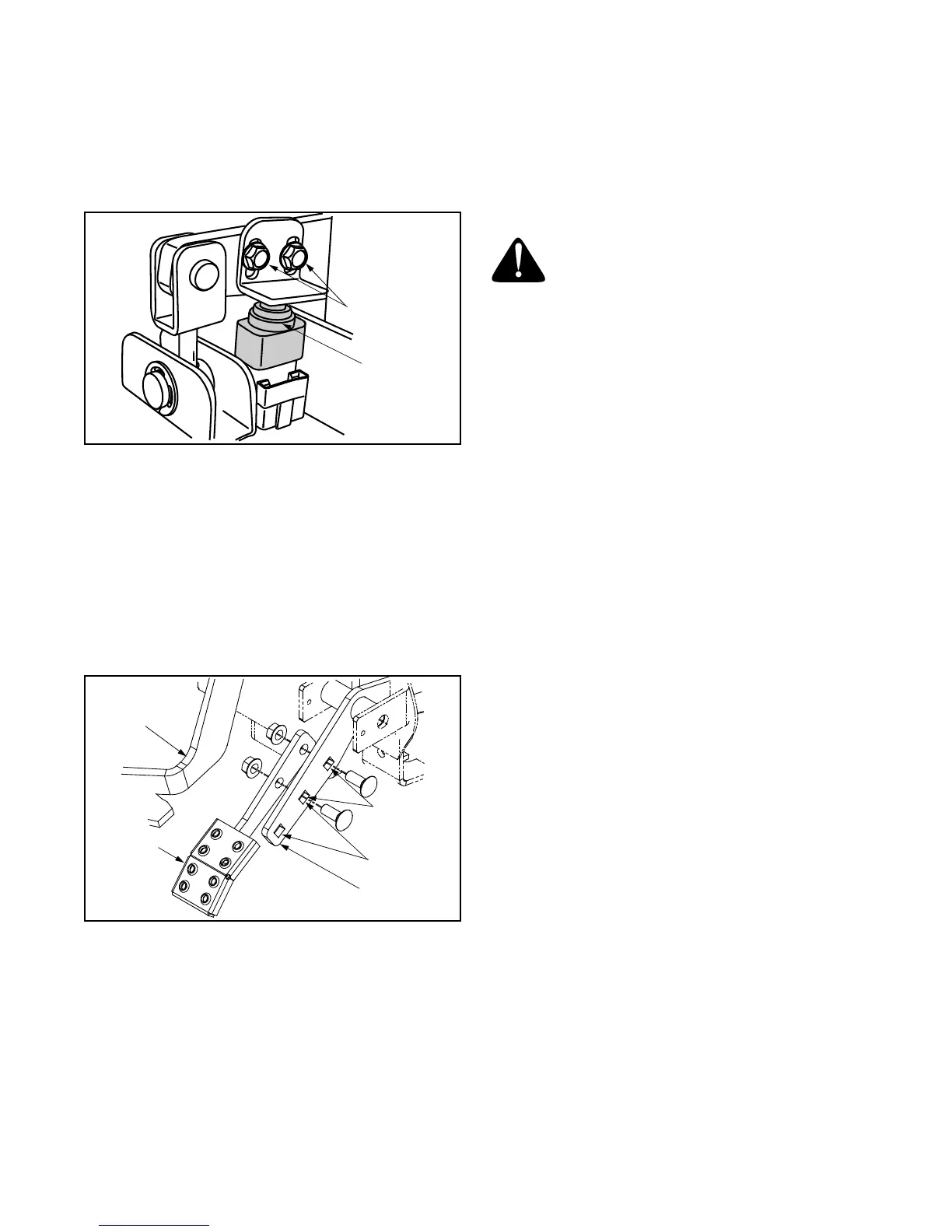

Figure 21
• Cautiously complete the testing on level ground by
operating the machine and applying brakes in a
normal manner.
• Repeat the adjustment procedure if necessary.
Adjusting Throttle Pedal
The throttle pedal assembly can be adjusted for comfort
slightly higher or lower by lining up the holes of the
lower pedal assembly with either the upper two or lower
two holes of the upper pedal assembly. See Figure 22.
Figure 22
Cleaning
The body panels are scratch and impact resistant
automotive quality ABS plastic. The use of standard car
wash soap and non-abrasive car wax is acceptable for
cleaning the body panels. Avoid any abrasive cleaner
or rubbing compounds for these will damage the body
panels. Dry thoroughly to avoid water spots.
WARNING: DO NOT use a pressure washer.
Damage may occur if direct hose spray
comes in contact with intake openings, or any
other electrical components, i.e. at instru-
ment cluster or under dash.
Brake Switch
Actuator
Brake Switch
Actuator Bolts
Lower Pedal
Upper Pedal Assembly
Brake
Pedal Assembly
(Shown for
reference)
Line up here
Line up here
OR
Assembly
