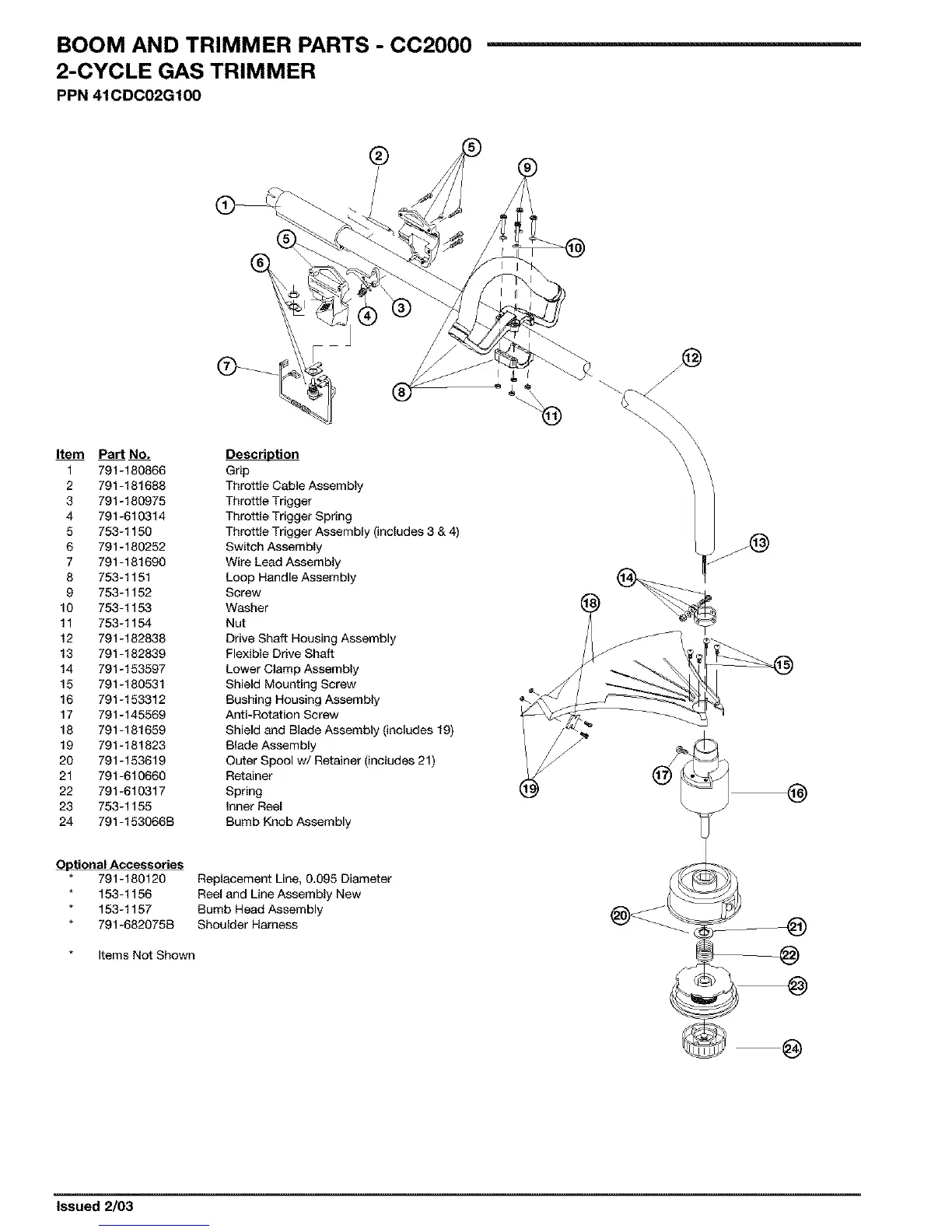

BOOM AND TRIMMER PARTS - CC2000 '
2-CYCLE GAS TRIMMER
PPN 41CDC02G100
®
Item Part NO. Description
1 791-180866 Grip
2 791-181688 Throttle Cable Assembly
3 791-180975 Throttle Trigger
4 791-610314 Throttle Trigger Spring
5 753-1150 Throttle Trigger Assembly (includes 3 & 4)
6 791-180252 Switch Assembly
7 791-181690 Wire Lead Assembly
8 753-1151 Loop Handle Assembly
9 753-1152 Screw
10 753-1153 Washer
11 753-1154 Nut
12 791-182838 Drive Shaft Housing Assembly
13 791-182839 Flexible Drive Shaft
14 791-153597 Lower Clamp Aseembly
15 791-180531 Shield Mounting Screw
16 791-153312 Bushing Housing Assembly
17 791-145569 Anti-Rotation Screw
18 791-181659 Shield and Blade Assembly (includes 19)
19 791-181823 Blade Assembly
20 791-153619 Outer Spool w/Retainer (includes 21)
21 791-610660 Retainer
22 791-610317 Spring
23 753-1155 inner Reel
24 791-1530668 8umb Knob Assembly
@
Op_onalAccessones
791-180120
153-1156
153-1157
791-6820758
Replacement Line, 0.095 Diameter
Reel and Line Assembly New
8umb Head Assembly
Shoulder Harness
Items Not Shown
Issued 2/03
