The top of each spindle pulley is marked with an arrow. 2.

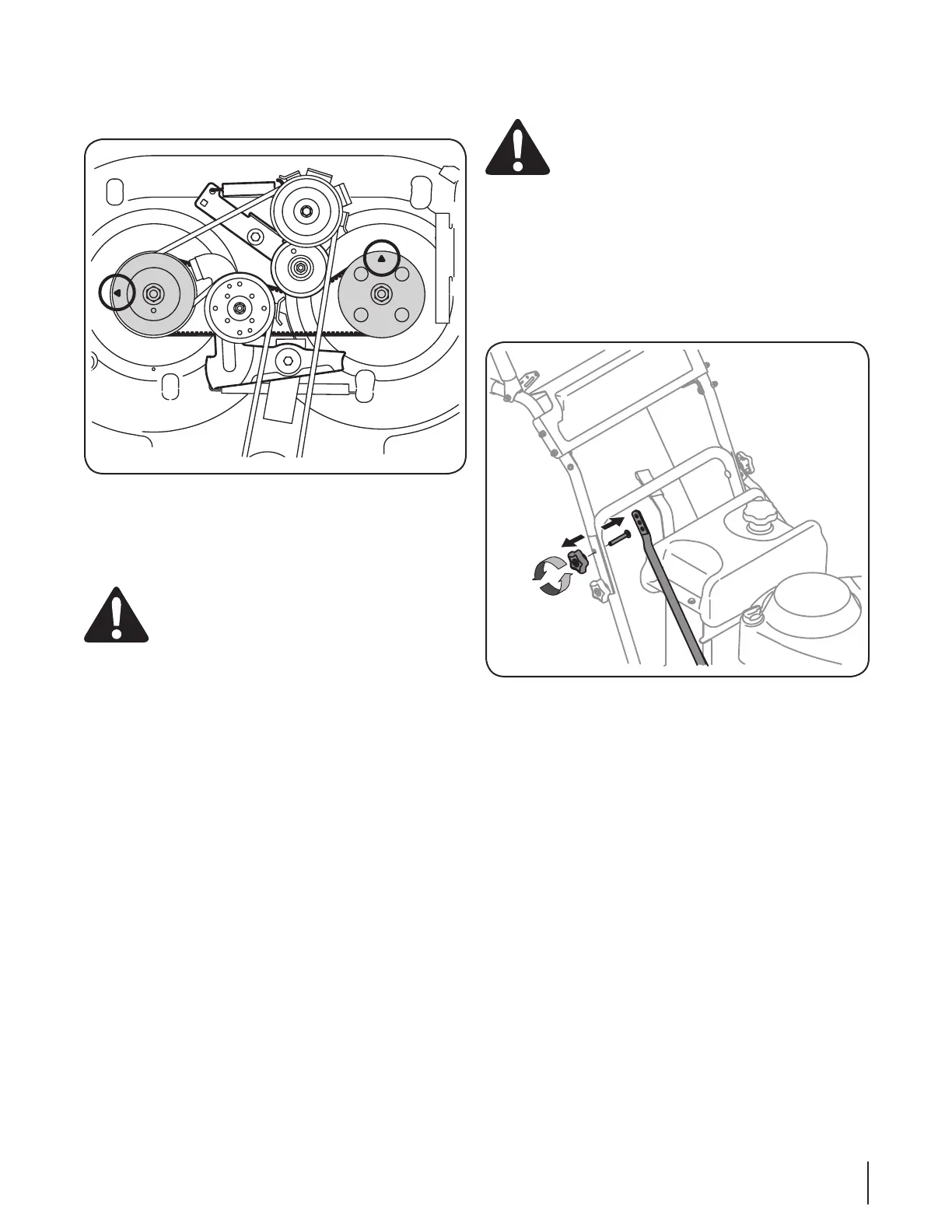

See Fig. 6-6. The arrows should be perpendicular (at a 90˚
angle) to each other.
If the arrows on the surface of each spindle pulley are not
perpendicular (at a 90˚ angle) to each other, see your Cub
Do not operate the machine without
this instruction could result in personal injury or
property damage.
Adjustments
Shut the engine off and remove the
ignition key (if so equipped) before making
adjustments.
Handle Height
The upper handle is secured to two support bars that can be
adjusted to raise or lower the handle height. Adjust if necessary
as follows:
Remove the upper star knob and carriage screw on the
right side of the handle and the left side of the handle.
See Fig. 6-7.
2.
three holes on each support bar with the holes on the
handle.
Reinstall the upper star knob and carriage screw on the
right side of the handle and the left side of the handle
when a comfortable height is achieved.
21se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
