4.20. After the handle bar brackets are in place, use a
piece of starter rope wrapped over the side of
the height adjuster spring bracket that the bolt
was removed from and pull the spring down until
the screw hole lines up. Reinstall the screw.
4.21. Tighten the screw loosened earlier.
4.22. Finish reassembling the mower in the reverse
order.
4.23. Test run the mower before returning it to service.
5. ENGINE CONTROL CABLE
5.1. Make sure the engine is off.
5.2. Unhook the Z-fitting from the safety bail.

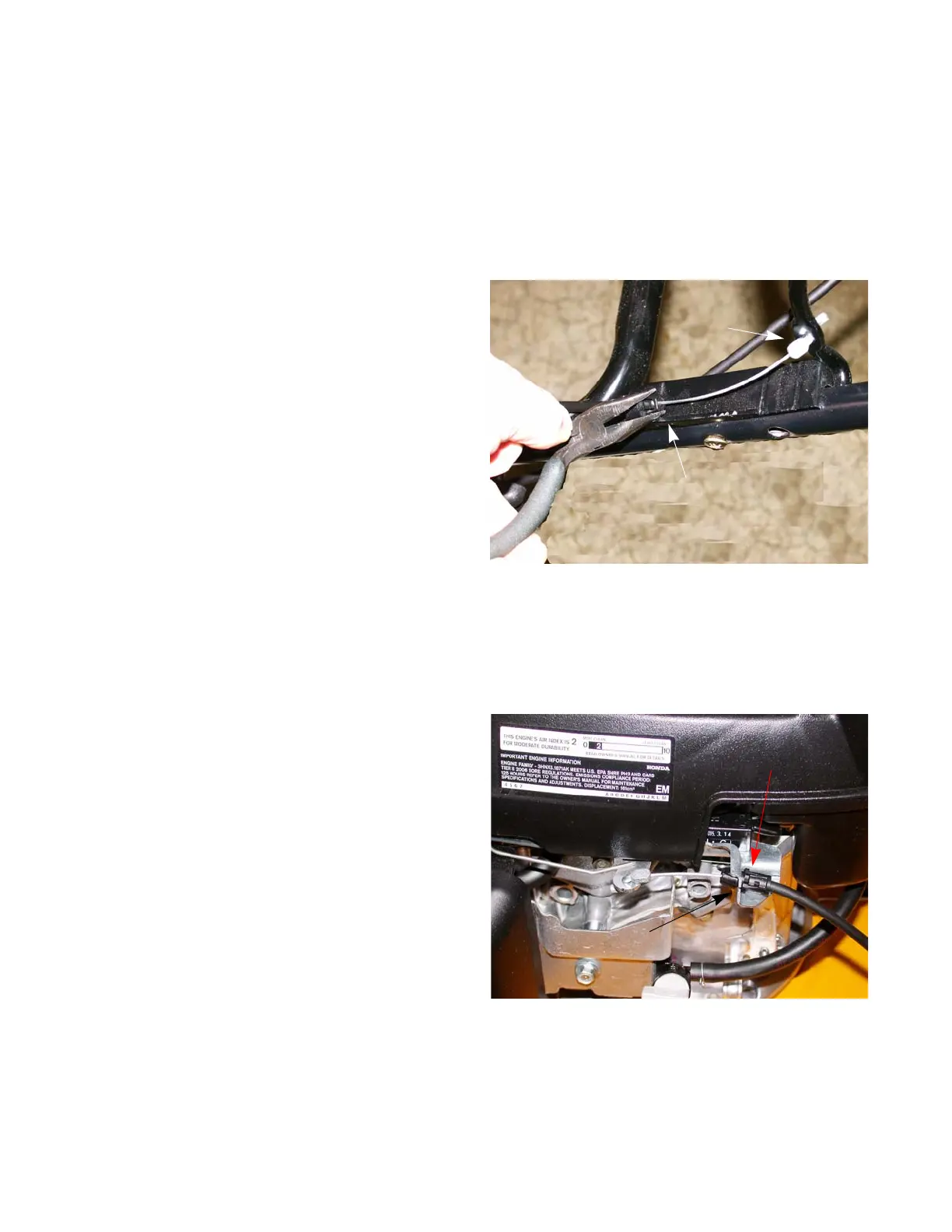

5.3. Squeeze the tabs on cable jacket (on the bail
end of the cable) together using a pair of pliers
or a ford fuel line disconnect tool. Push the cable
through the bracket. See Figure 5.3.
5.4. Use a pair of pliers, or a ford fuel line disconnect
tool, and squeeze the tabs. Push the cable
jacket through the bracket until the inner cable
lines up with the slot on the bracket.
See Figure 5.4.
Z-fitting
Squeeze tabs
Figure 5.3
Slot
Squeeze tabs
Figure 5.4
