Self-Propelled Mower
2
3. BELT REMOVAL
3.1. Disconnect and ground the spark plug.
3.2. Take measures to prevent fuel from leaking from
the gas tank.
3.3. Remove the blade as described in the blade
removal section.
3.4. Remove the blade adapter and washers, making
sure to note the order and orientation of the
washers. See Figure 3.4.
3.5. Remove the bottom pulley half. See Figure 3.5.
3.6. Remove the three screws holding the shroud in
place using a 3/8” wrench. See Figure 3.6.
3.7. Remove the hub caps on the rear wheels by pry-
ing them off. See Figure 3.7.

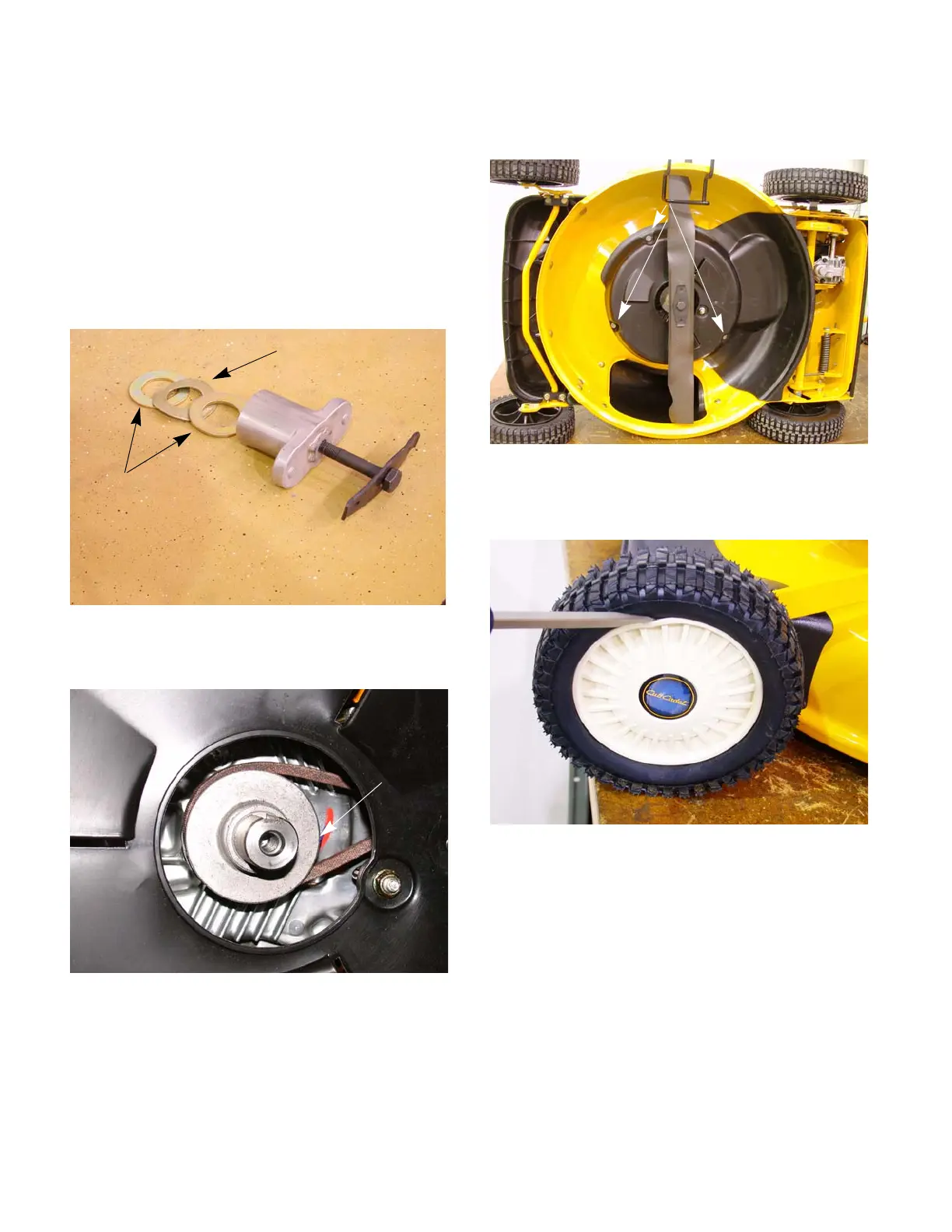

Figure 3.4
Wave washer
Flat washers
Figure 3.5
Bottom pulley
half
Figure 3.6
Three shroud screws
Figure 3.7
To Next Page
