3.8. Remove the left rear wheel by removing the hex
head bolt in the center of the wheel with a 7/16”
wrench. Then take the right wheel off.
NOTE: You may have to hold the left axle half to
get the right wheel off. You can do this with a pair
of vise grips. Care should be taken not to dam-
age the splines on the end of the axle.

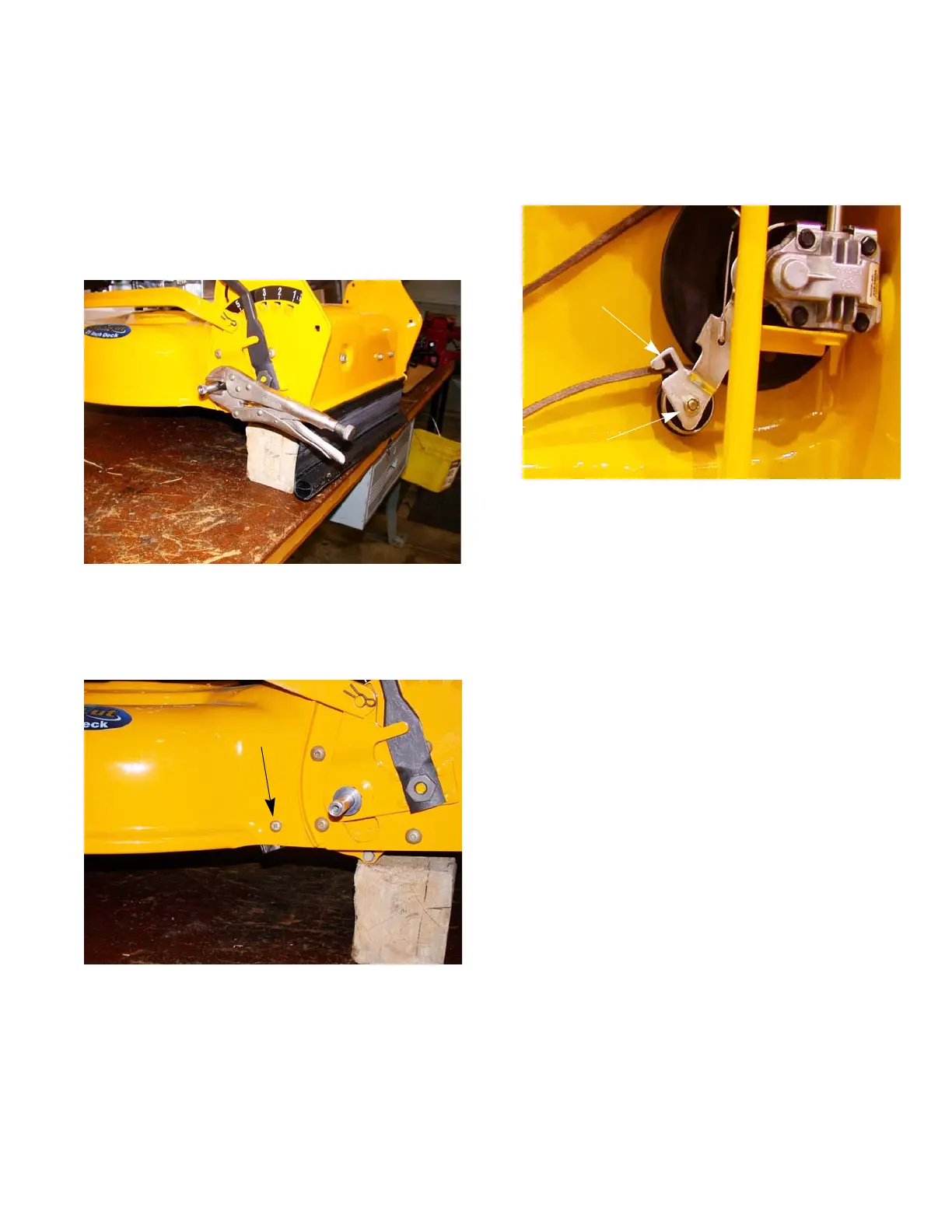

See Figure 3.8.
3.9. Once the wheels are off, remove the phillips
head screws, one on each side, and finish
removing the shroud. See Figure 3.9.
Figure 3.8
Figure 3.9
Remove this screw
on both sides
3.10. Loosen the bolt that goes through the idler bear-
ing using two 7/16” wrenches. Unlatch the metal
tab holding the belt to the bearing.
See Figure 3.10.
3.11. Remove belt from around the transmission pul-
ley and discard.
3.12. Follow steps in reverse order to install new belt.
3.13. Run the mower before returning it to service.
Figure 3.10
Unlatch tab
Loosen bolt
