5

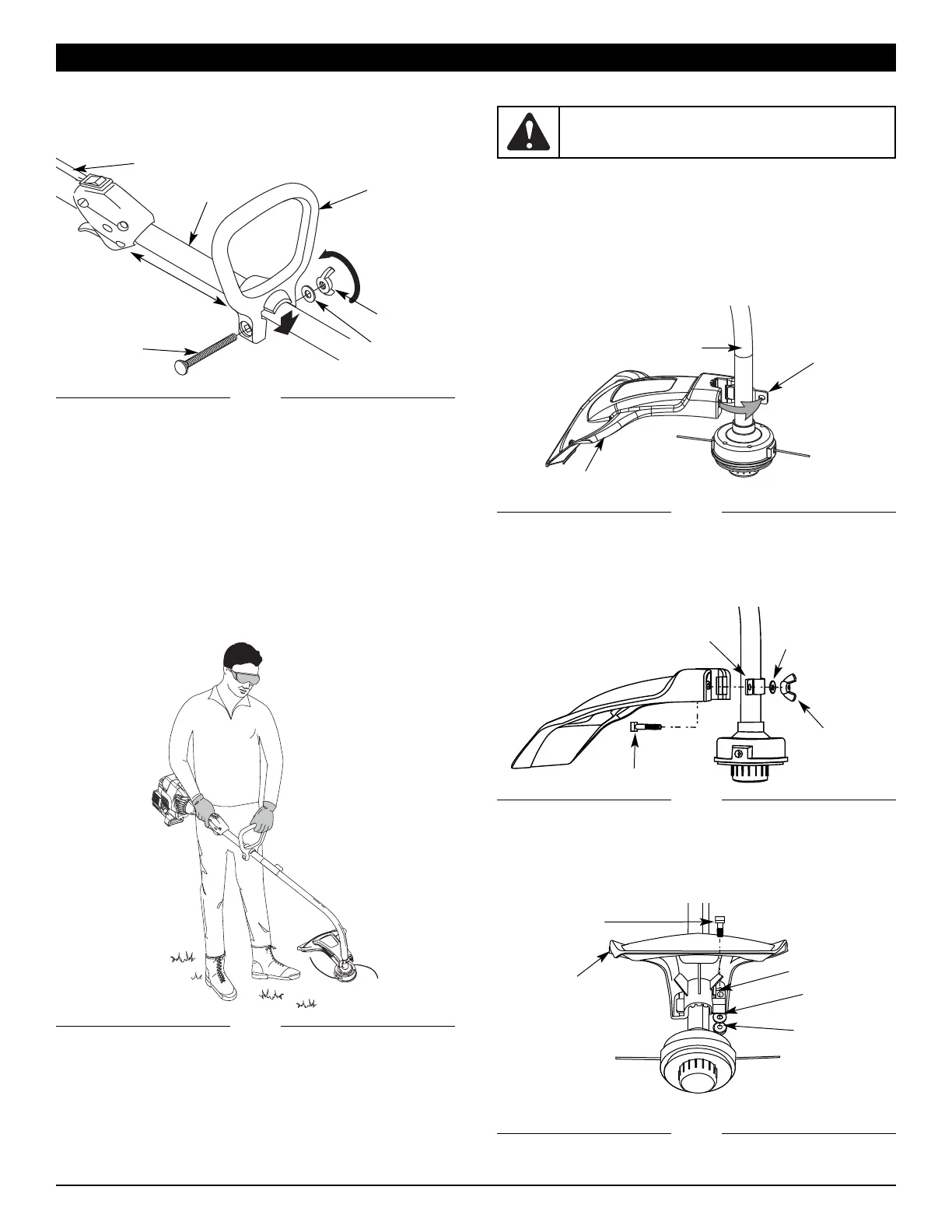

INSTALL AND ADJUST THE D-HANDLE
1. Push the D-handle down onto the shaft housing (Fig. 1).
The squared bolt hole in the handle is to the right.
2. Insert the shoulder bolt into the squared hole in the handle
and push through. On the left side of the handle, place the
washer on the bolt, then screw the wing nut onto the bolt.
Do not tighten until you make the handle adjustment.
3. Rotate the D-handle to place the grip above the top of the
shaft housing. Place it a minimum of 6 inches (15.24 cm)
from the end of the shaft grip.
4. While holding the unit in the operating position
(Fig. 2), position the D-handle to the location that provides
you the best grip.
5. Tighten the wing nut until the D-handle is secure.
Fig. 1
Bolt
Washer
Wing Nut
Tighten
Shaft Grip
D-Handle
Minimum 6 inches
(15.24 cm)
Shaft Housing
INSTALL THE CUTTING HEAD SHIELD
Use the following instructions if the cutting head shield on your
unit is not installed.
1. Place the cutting head shield onto the shaft housing. Be sure
the guard mounting bracket slides into the slot on the edge of
the cutting shield. Rotate the shield into place,
counterclockwise. The holes in the guard mounting bracket
and cutting head shield will line up (Fig. 3).
2. From inside the cutting head shield, push the square bolt through
the hole until the threaded end protrudes through the guard
mounting bracket (Fig. 4).
Guard
Mounting
Bracket
Shaft Housing
Square Bolt
Cutting Head Shield
3. Put the washer on the bolt, then screw the wing nut onto
the bolt and tighten. Figure 5 shows the installation
process from underneath the unit.
Guard
Mounting
Bracket
Wing Nut
Cutting Head and Shield: Underside View
Cutting
Head Shield
Wing Nut
Washer
Square Bolt
Washer
Hole
Fig. 3
Fig. 4
Fig. 5
Fig. 2
ASSEMBLY INSTRUCTIONS
WARNING: Never operate the trimmer without
the cutting head shield in place to prevent serious
personal injury.
