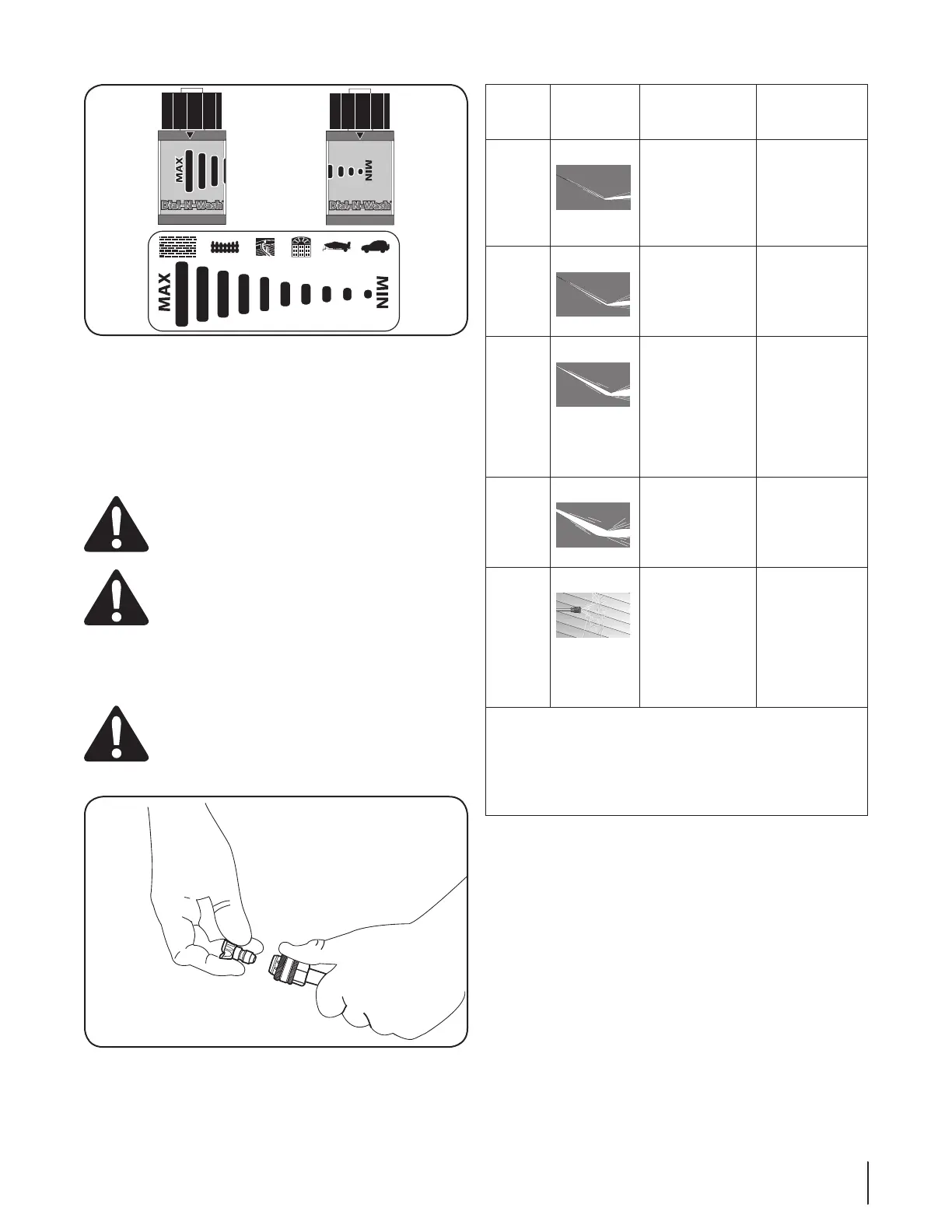

13Section 4 — controlS and FeatureS
Figure 4-3
How To Use Spray Wand
The nozzles for the spray wand are stored in the nozzle holder on
the panel assembly. Colors on the panel identify nozzle location
and spray pattern. Refer to the following chart to choose the
correct nozzle for the job to be performed.
Changing Nozzles on Spray Wand
DANGER: Risk of fluid injection. Do not direct
discharge stream toward persons, unprotected
skin, eyes or any pets or animals. Serious injury
will occur.
WARNING: Flying objects could cause risk of
serious injury. Do not attempt to change nozzles
while pressure washer is running. Turn engine
off before changing nozzles.
1. Pull quick-connect coupler back and insert nozzle.
2. Release quick-connect coupler and twist nozzle to make
sure it is secure in coupler.
WARNING: Flying object could cause risk of
serious injury. Ensure nozzle is completely
inserted in quick-connect socket and quick-
connect collar is fully engaged (forward) before
squeezing gun trigger.
Figure 4-4
Nozzle
Color
Spray
Pattern
Uses Surfaces*
Red
0˚ powerful
pinpoint for
spot cleaning of
hard, unpainted
surfaces or for
high reach areas
unpainted metal
or concrete;
DO NOT use on
wood
Yellow
15˚
intense cleaning
of unpainted
hard surfaces
grills, driveways,
concrete or
brick walkways,
unpainted brick
or stucco
Green
25˚
standard
cleaning
nozzle for most
applications
yard tools,
sidewalks,
lawn furniture,
unpainted
siding, stucco,
gutters and
eaves, concrete,
brick surfaces
White
40˚
cleaning of
painted or
delicate surfaces
auto/RV, marine,
wood, painted
brick and stucco,
vinyl, painted
siding
Black
low pressure
applies cleaning
solutions
Low pressure
spray is safe
on all surfaces.
Always verify
compatibility
of cleaning
solution prior to
use.
*NOTICE: The high pressure spray from your pressure washer
is capable of causing damage to surfaces such as wood, glass,
automobile paint, auto striping and trim, and delicate objects
such as flowers and shrubs. Before spraying, check the item to
be cleaned to assure yourself that it is strong enough to resist
damage from the force of the spray.
