Cub Cadet Challenger 700

Chassis
5‐29

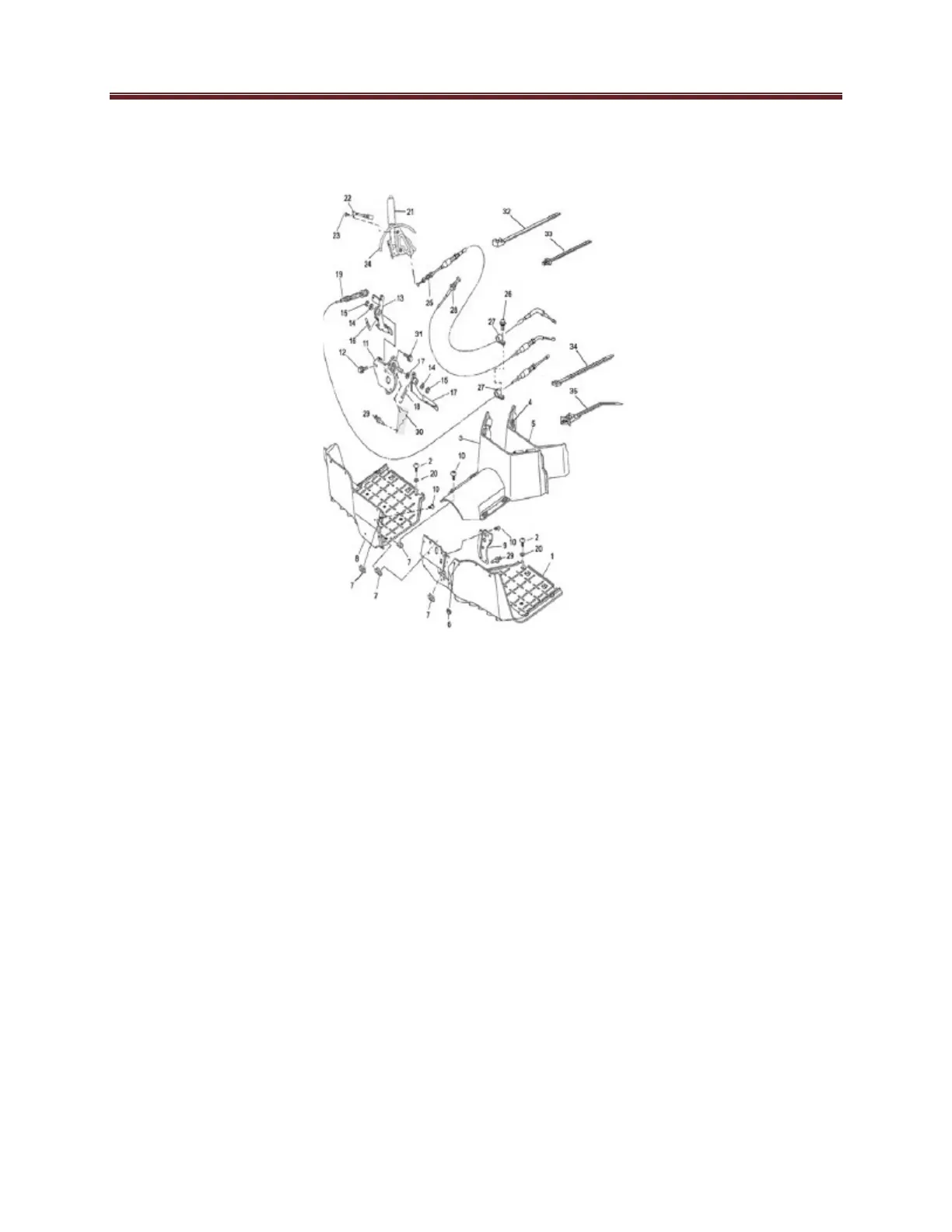

Footrest Assembly
No. Part Name Qty
19 Throttle cable 1
20 Flat washer 14
21 Parking brake lever assembly 1
22 Micro switch 1
23 Screw 4mm X 12mm 1
24 Parking brake dust cover 1
25 Parking brake cable 1
26 Flange bolt 6mm X 16mm 1
27 Cable clip 2
28 Choke cable 1
29 Anchor 4
30 Brake pedal mud guard 1
31 Flange bolt 8mm X 20mm 2
32 Wire strap 13
33 Wire strap 15
34 Wire strap 11
35 Wire strap 5
