Electrical
6‐1

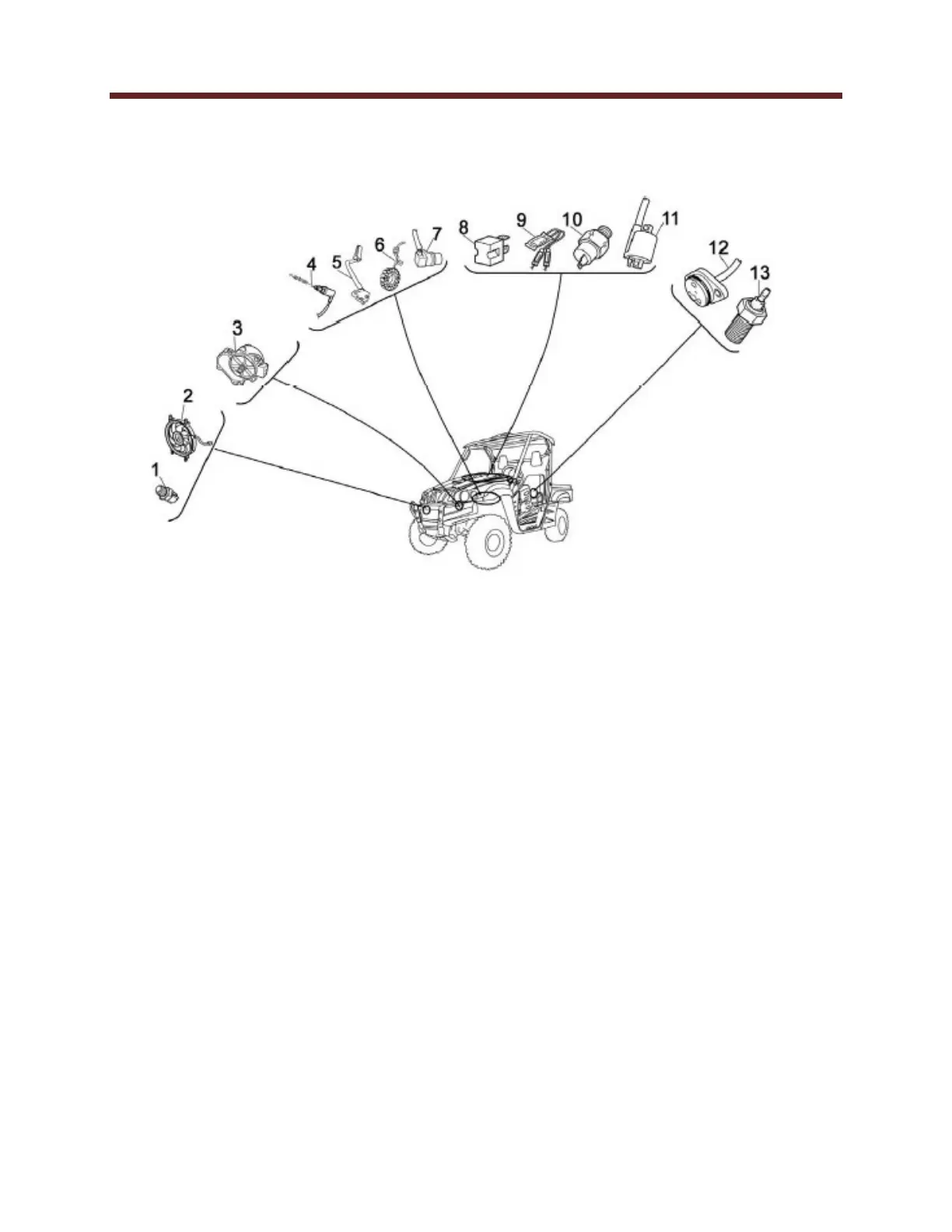

Electrical Components
1.
Thermo switch 2
2.
Radiator fan
3.
Gear motor
4.
Brake light switch
5.
Parking brake switch
6.
Pickup coil/stator assembly
7.
Speed sensor
8.
Diode 1
9.
Circuit breaker (radiator fan motor)
10.
Thermo switch 1
11.
Ignition coil
12.
Gear position switch
13.
Reverse switch
