Cub Cadet Challenger 700

Chassis
5‐47
Suspension

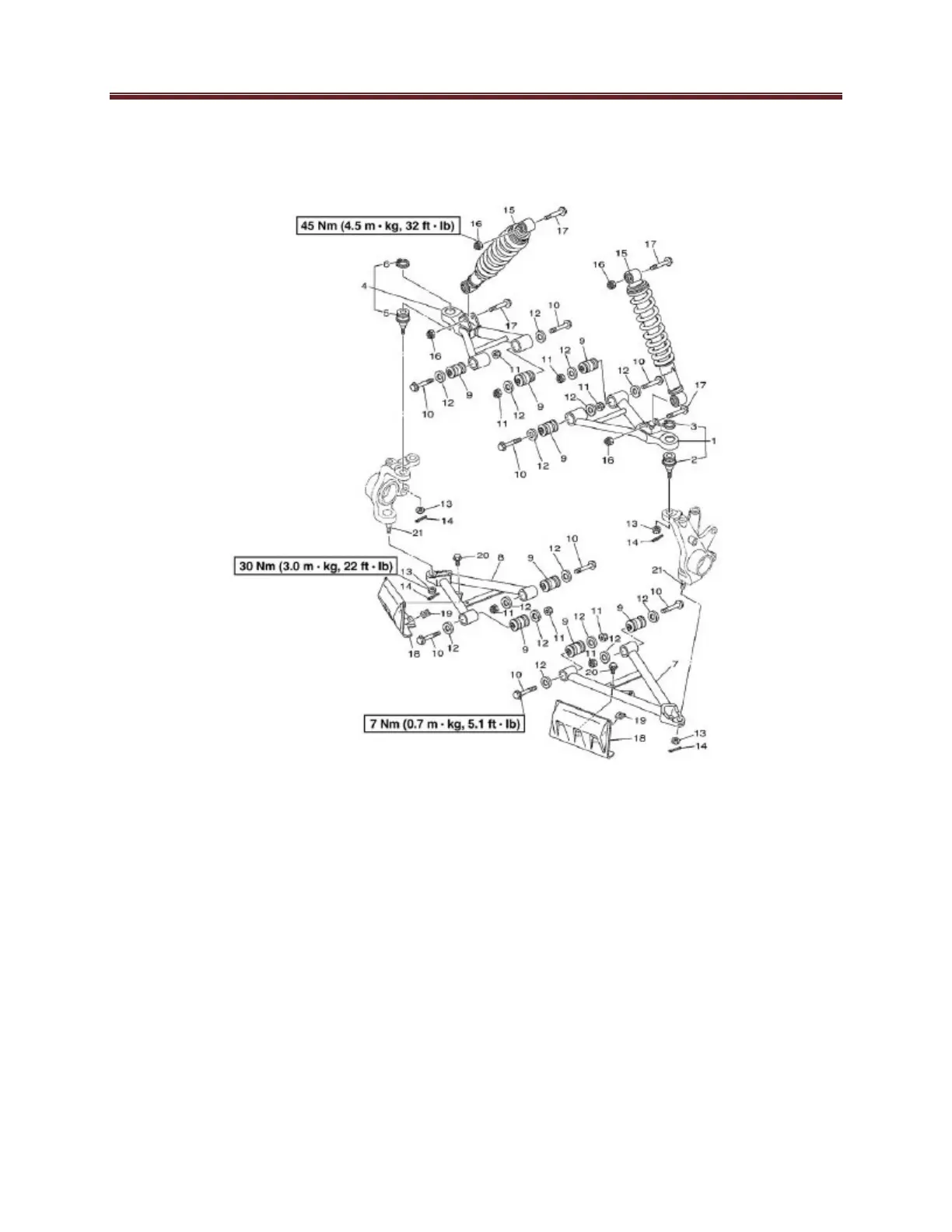

Front Suspension and A-arm
No. Part Name Qty
1 Upper left A-arm 1
2 Front upper ball joint 1
3 Elasticity block ring 1
4 Upper right A-arm 1
5 Front upper ball joint 1
6 Block ring, shaft 1
7 Front lower left A-arm 1
8 Front lower right A-arm 1
9 Middle bushing 8
10 Flange bolt 10mm X 70mm 8
11 Locknut 10mm X 1.25 8
12 Washer 16
13 Locknut 10mm X 1.25 4
14 Pin 3.2 X 32 4
