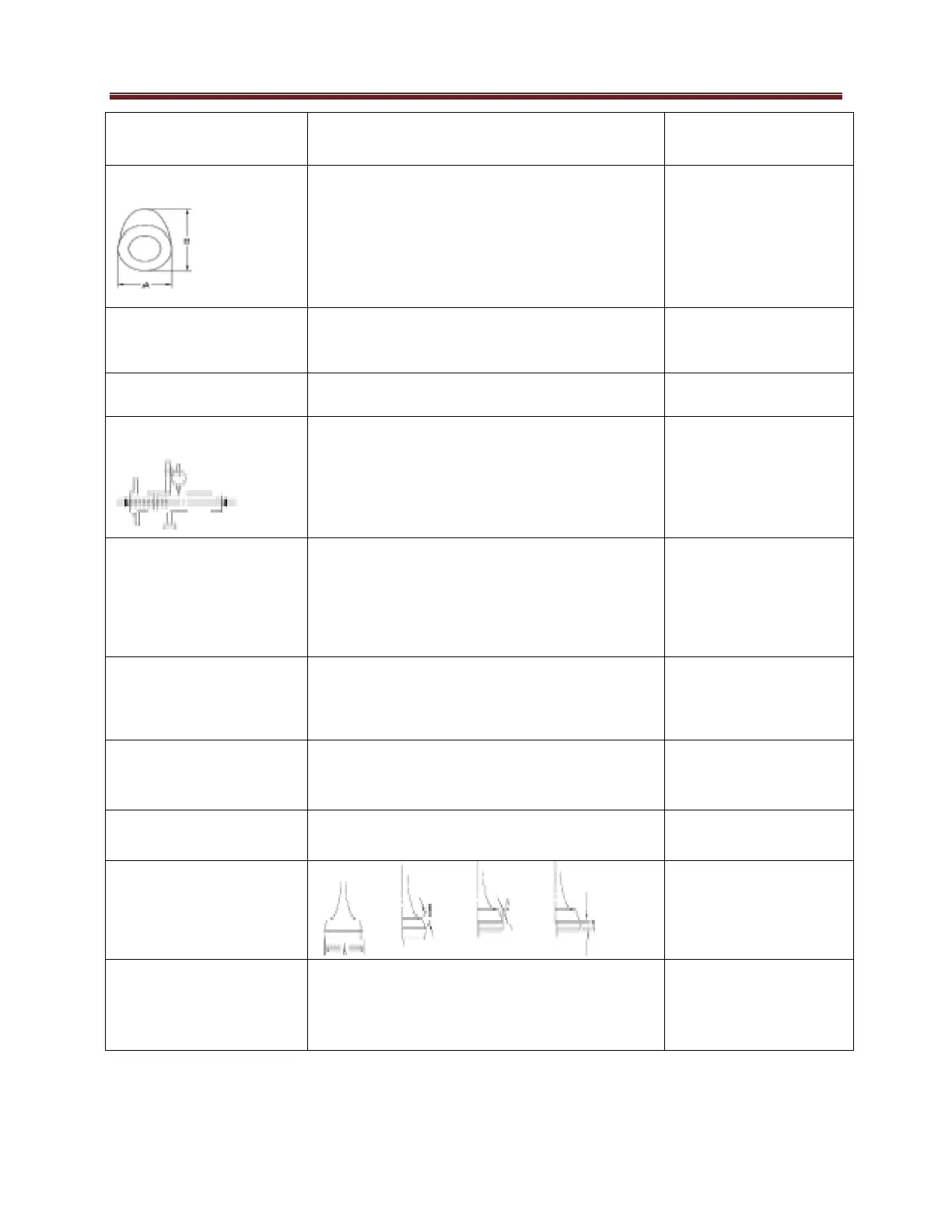

Engine Specifications
Item Metric Standard
Service Wear
Limit
Cam
Dimensions
Intake
“A” 30.06-30.16 mm (1.1835-1.1874 in) 29.96 mm(1.1795 in)
“B” 35.69-35.79 mm (1.4051-1.4091 in) 35.59 mm(1.4012 in)
Exhaust “A” 30.11-30.21 mm (1.1854-1.1894 in)
30.01 mm (1.1815 in)
“B” 36.50-36.60 mm (1.4370-1.4409 in)
36.40 mm
1.4331 in
Camshaft
Runout limit
.03 mm (0.0012 in)
Cam Chain:
Number of links
Adjustment Method
126
Automatic
Rocker arm
Inside diameter
12.000-12.018 mm (0.4724-0.4731 in)
Rocker shaft outside
diameter
11.976-11.991 mm (0.4715-0.4721 in)
Arm to shaft
clearance
0.009-0.042 mm (0.0004-0.0079 in)
Valve Dimensions
“A” Head
diameter
IN
Ex
29.9-30.1 mm (1.1772-1.1850 in)
31.9-32.1 mm (1.2559-1.2638 in)
