Cub Cadet Challenger 700

Specifications
2-23
CHASSIS TIGHTENING TORQUES
Part to be tightened
Thread
Size
Torque
Nm
Torque
Ft Lbs
Front bumper and frame 10 mm 32 23
Upper instrument panel and frame 6 mm 7 5.1
Ceiling side frame (enclosure) and frame 10 mm 64 46
Support frame 10 mm 64 46
Top frame 10 mm 64 46
Side Frame 10 mm 64 46
Seat Support 8 mm 16 11
Footrest plate 6 mm 7 5.1
General Tightening Torque Specs
This chart specifies tightening torques for standard fasteners with a standard ISO thread
pitch. Tightening torque specifications for special components or assemblies are
provided for each chapter of this manual. To avoid warpage, tighten multi-fastener
assemblies in a crisscross pattern and progressive stages until the specified tightening
torque is reached. Unless otherwise specified, tightening torque specifications require
clean, dry threads. Components should be at room temperature.

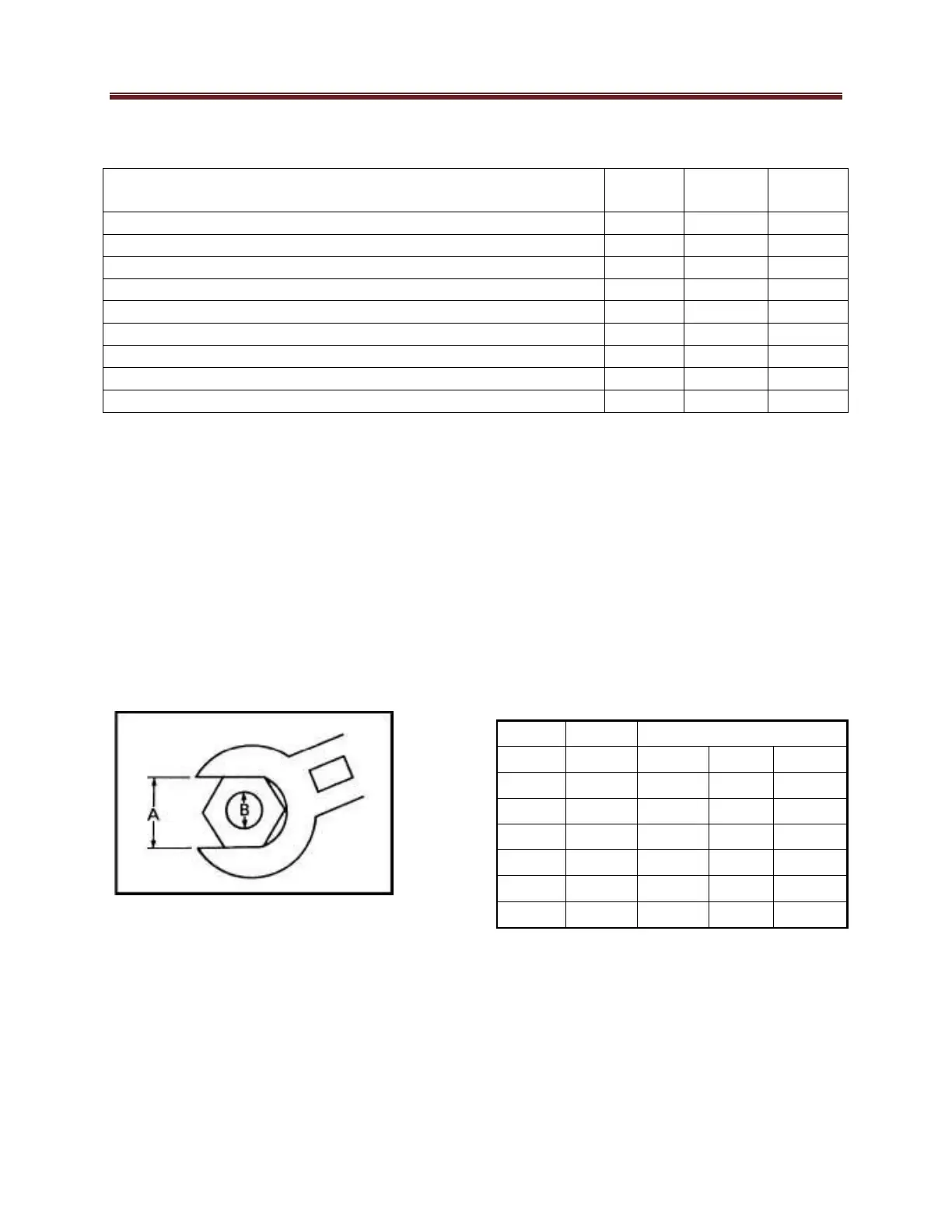

A: Distance between flats
B: Outside thread diameter
A B General tightening torques
(nut) (bolt) Nm m · kg ft · lb
10 mm 6 mm 6 0.6 4.3
12 mm 8 mm 15 1.5 11
14 mm 10 mm 30 3.0 22
17 mm 12 mm 55 5.5 40
19 mm 14 mm 85 8.5 61
22 mm 16 mm 130 13.0 94
