Periodic
Maintenance
3‐13
Maintenance and Adjustment of the UV
Checking the V-Belt
1)
Remove:
Driver’s seat
Passenger’s seat
Console
Drive belt cover
2)
Check the V-belt for cracks, wear,
scaling or chipping. Replace if
necessary.
3)
Check for oil or grease inside V-
belt housing. If found; see cleaning
instructions for Primary and
Secondary sheaves.
4)

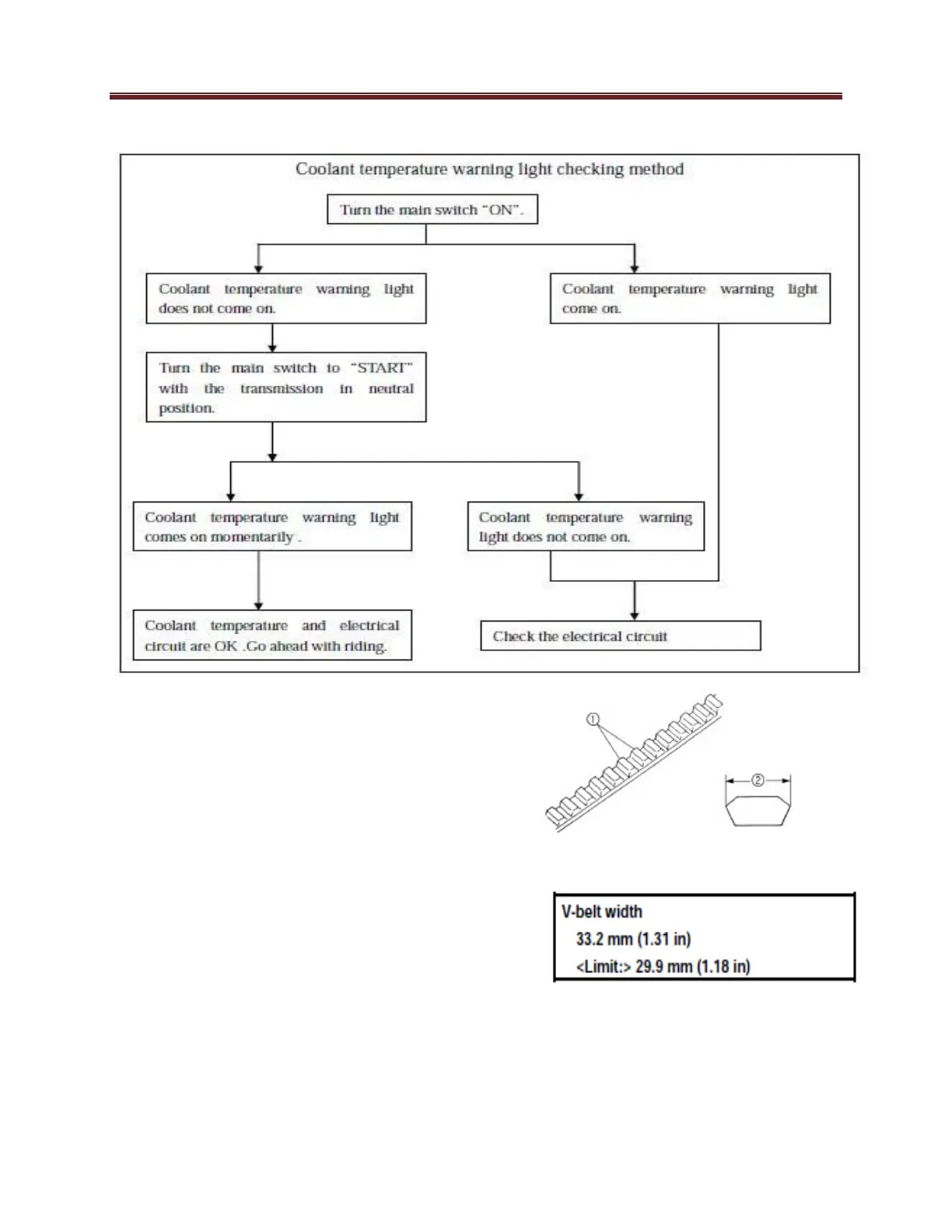

Check V-Belt width. If out of
specification. Replace with a
new
V-Belt.
To Next Page
