• Remove both hairpin clips from the pin which is
fastened to the speed control assembly (be careful
not to lose the small flat washers found on the pin).
See Figure 29.
• Remove the drive pedal return spring.
• Using two 9/16" wrenches, remove the pin from the
speed control assembly. See Figure 29.
• Thread the idler adjustment rod inward or outward
to lengthen or shorten the travel of the double-idler
bracket until proper adjustment is achieved.
• Reassemble by following the above steps in
reverse order.

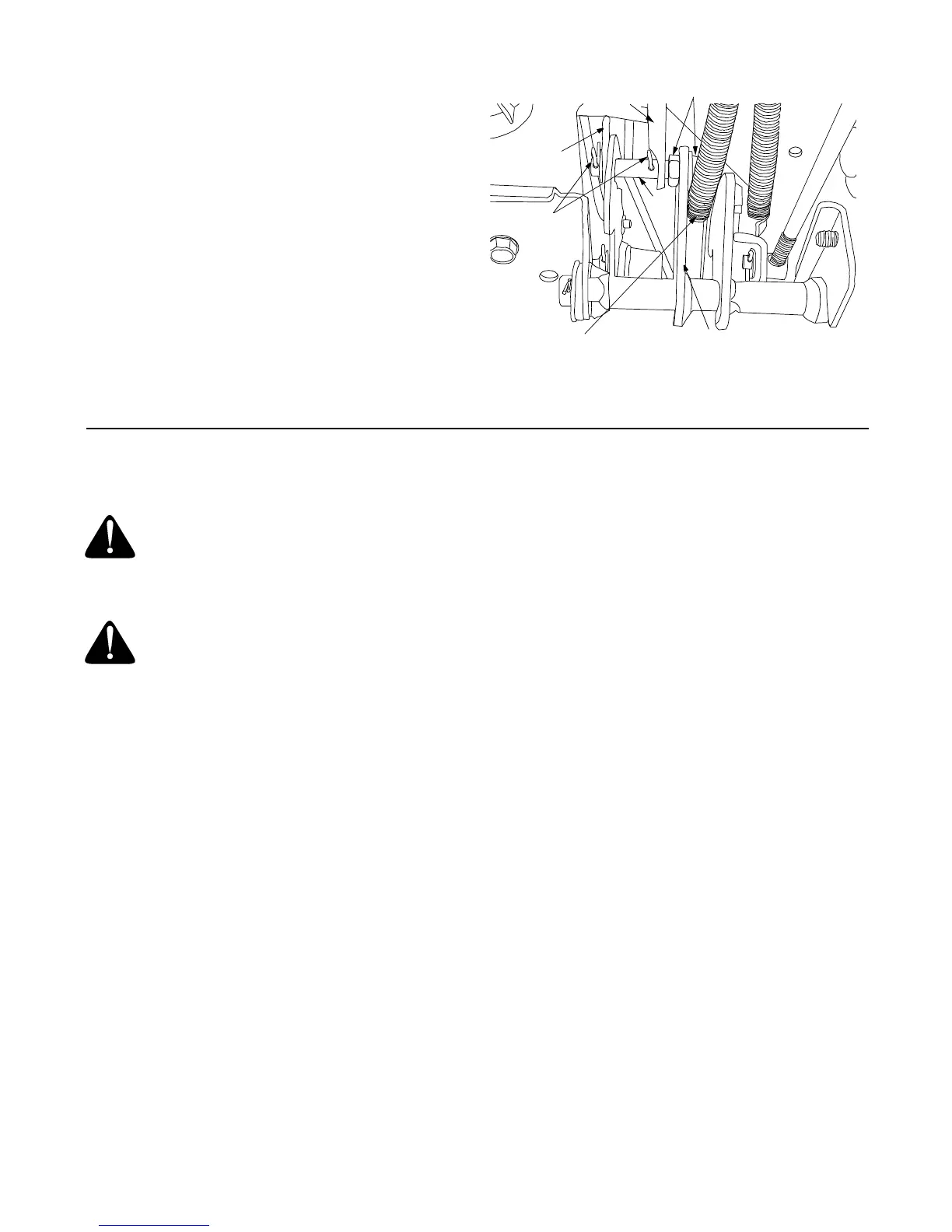

Figure 29
SECTION 14: OFF-SEASON STORAGE
If the machine is to be inoperative for a period longer
than 30 days, prepare for storage as follows.
WARNING: Never store the machine or
fuel container indoors where there is an open
flame, spark or pilot light such as on water
heater, furnace, clothes dryer or other gas
appliance.
WARNING: Use a fuel stabilizer additive or
drain the fuel into an approved container
outdoors, away from an open flame. Allow
engine to cool. Extinguish cigarettes, cigars,
pipes and other sources of ignition prior to
draining fuel.
• Clean the engine and the entire unit thoroughly.
• Lubricate all lubrication points. Wipe the entire
machine with an oiled rag to protect the painted
metal surfaces.
• Refer to the engine manual for correct engine
storage instructions. The engine must be
completely drained of fuel to prevent gum deposits
from forming on essential carburetor parts, fuel
lines and fuel tanks.
• It is not necessary to remove the battery from the
tractor for storage. However, clean the top of the
battery and make sure it has full charge. Disconnect
the negative terminal of the battery before storing
the tractor.
• Store unit in a clean, dry area.
NOTE: When storing any type of power equipment in
an unventilated or metal storage shed, care should be
taken to rustproof the equipment. Using a light oil or
silicone, coat the equipment, especially any chains,
springs, bearings and cables. attachments &
accessories.
Speed Control
Assembly
Hairpin
Clips
Idler
Adj. Rod
Pin
AutoDrive
™
Pedal
Return Spring
Place Wrenches Here
Neutral
Return
Bracket
To Next Page
