Assembly & Set-Up
3
9
NOTE: This Operator’s Manual covers several models. Tractor
features may vary by model. Not all features in this manual are
applicable to all tractor models and the tractor depicted may
differ from yours.
NOTE: All references in this manual to the left or right side and
front or back of the tractor are from the operating position only.
Exceptions, if any, will be specified.
Tractor Preparation
Manually Moving the Tractor

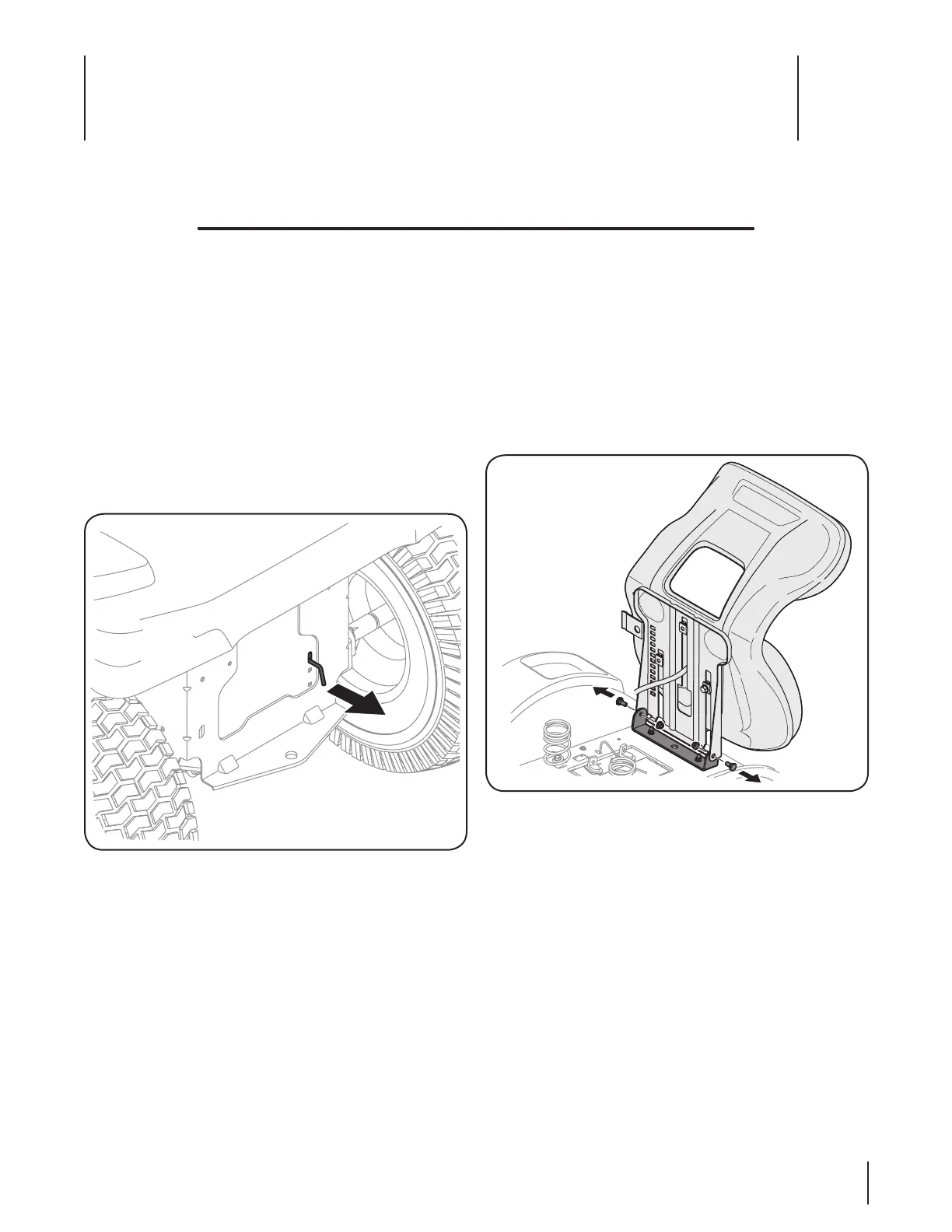

1. Engage the transmission bypass rod to move the tractor
manually without starting it. The transmission bypass rod is
located on the rear of the tractor, on the frame. Engage the
bypass rod by pulling out. See Figure 3-1.
Figure 3-1
2. Disengage the bypass rod by pushing the rod back in after
moving the tractor. See Figure 3-1.
Contents of Crate
• One Lawn Tractor • One Operator’s Manual • One Engine Operator’s Manual
Install Operator’s Seat (If necessary)
To install the seat proceed as follows:
NOTE: The seat is shipped with the seat switch and seat
pan attached.
1. Cut any straps securing the seat assembly and the drive
control levers to the tractor. Remove any packing material.
NOTE: Be careful not to cut the wiring harness connecting
the seat and the seat switch.
2. Remove the two shoulder screws and flange lock nuts in
the seat pan as shown in Figure 3-2.
Figure 3-2
NOTE: Be sure that the nylon flange bearings remain in
place on the seat bracket mounting holes. If they come out
during the removal of the shoulders screws and flange lock
nuts make sure to replace them before installing the seat.
