Cub Cadet FastAttach 19A30037100

Assembly & Set-Up
2
3

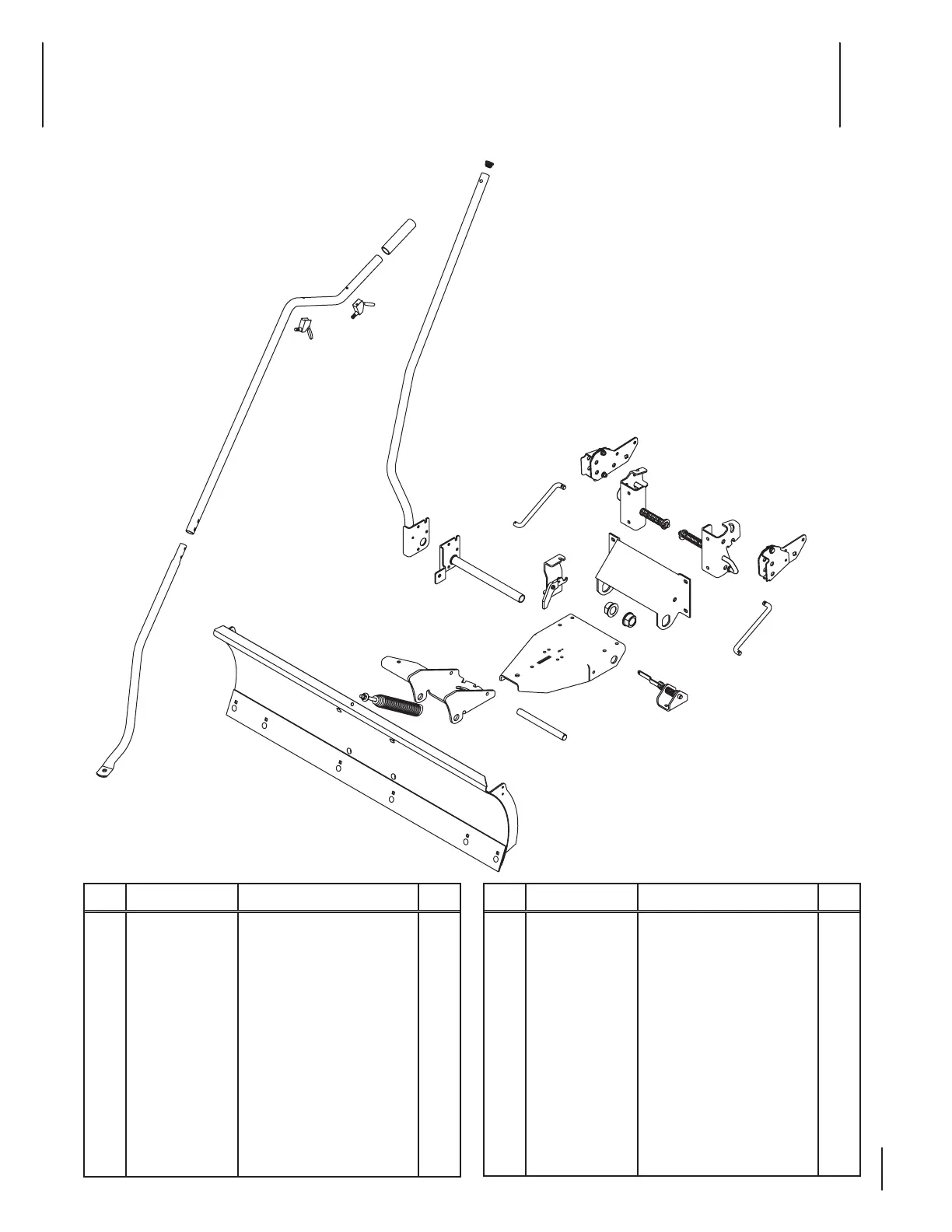

Contents of Carton
6
22
2
5
11
21
21
12
14
15
13
12
19
20
18
16
17
8
9
10
7
3
4
1
Part Number Description Qty.
1 749-05858 Lower Control Tube 1
2 749-05855 Control Tube 1
3 720-0274 Grip 1
4 735-0246A End Plug 1
5 689-00656 Lift Handle Assembly 1
6 689-00661 Blade Assembly 1
7 689-00662 Trip Spring Kit 1
8 689-00632 Pivot Plate Assembly 1
9 711- 06173 Pivot Shaft 1
10 789-00471 Blade Tongue 1
11 689-00667 SHF Assembly 1
Part Number Description Qty.
12 747-06957 Tie Rod 2
13 741-0192 Flange Bearing 2
14 689-00663 Tongue Lock Pin Assembly 1
15 689-00691 Lever Lock Assembly 1
16 689-00686 Right Front Bracket Asy 1
17 689-00685 Left Front Bracket Asy 1
18 689-00682 Right Mounting Assembly 1
19 689-00681 Left Mounting Assembly 1
20 789-00463 Large Mounting Bracket 1
21 746-04794 Cable Lever 2
22 789-00471 Shave Plate 1
