Turn the cable collar section one or two turns to increase or
Retighten the lock nut against the cable collar. See Fig. 6-4.4.
With the forward and reverse tine engagement handles in 5.
neutral — released — position, pull the starter rope several
times. The tines should not turn.
If they turn forward, adjust the forward tine engagement 6.
cable to release tension using the previous steps in this
section. If the tines turn toward rear, adjust the reverse tine
engagement cable to lesson the tension as with previous
steps.
Check again for correct tension on cables.7.
End Caps
The end cap, which is used to prevent tilled soil from overflowing
onto unwanted areas, are removable from the axle. Remove the
hairpin clip and clevis pin that secure each end cap and slide the

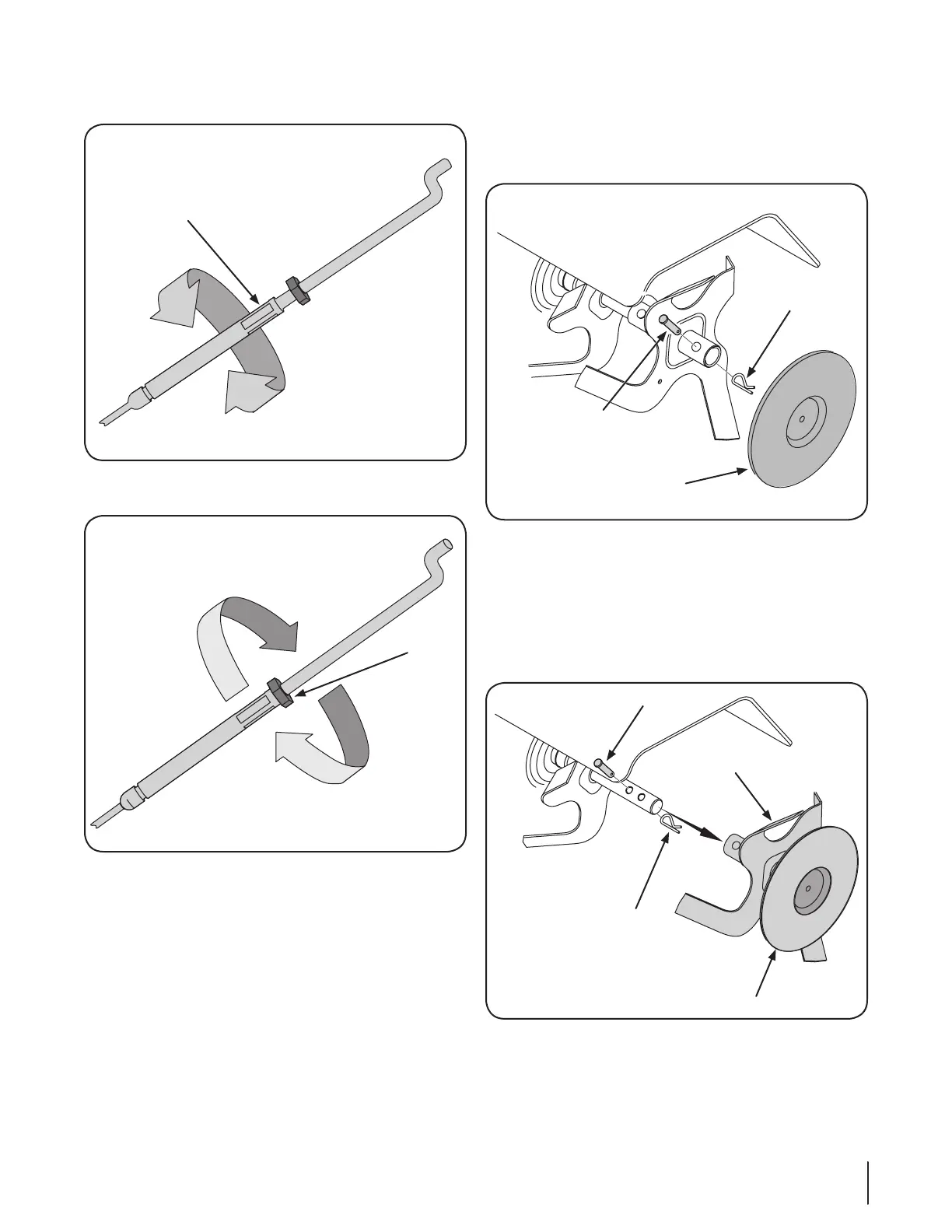

end caps off the axle. See Fig. 6-5.
Tines
With the outer tines installed, the working width of the machine
is 24 inches. This width may be expanded to 26 inches by
removing the clevis and cotter pins, sliding each outer tine
outward away from the center of the tiller and resecuring the
pins in the holes provided. See Fig. 6-6.
Cotter Pin
Cotter Pin
se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
To Next Page
