Cub Cadet FT24 User Manual

Assembly
References to the right and left side of tiller are determined from
behind the equipment in the operating position.
Handle
Identify the forward clutch cable and reverse clutch cables. 1.
Fig. 3–1.
NOTE: Be sure not to kink cables while attaching.
Hook the “Z” end of the forward clutch cable (A) into the 2.
forward tine engagement lever Fig. 3–2.
Hook the “Z” end of the reverse clutch cable (B) into the 3.
reverse tine engagement lever Fig. 3–2.
Contents of Carton
One Tiller • One Handlebar Assembly• One Depth Gage Assembly•
One Operator’s Manual• One Engine Operator’s Manual•
B
A

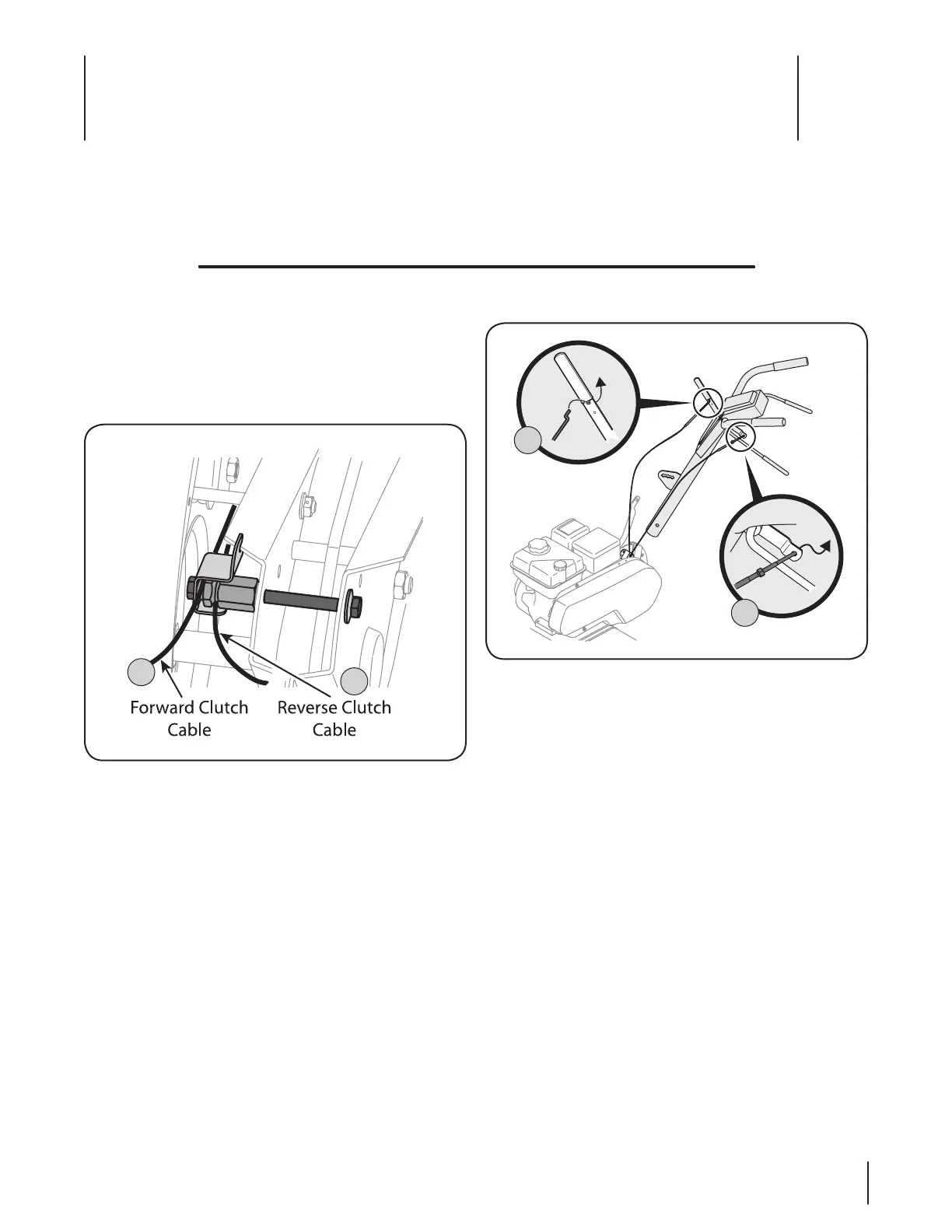

Figure 3-1
B
A
Figure 3-2
Assembly & Set-Up
3
7

Cub Cadet FT24 Specifications

General

Tilling Width	24 inches
Handle	Adjustable
Type	Front-tine tiller
Number of Tines	4
Engine Type	4-cycle
Tilling Depth	Up to 7 inches
Warranty	2 years
