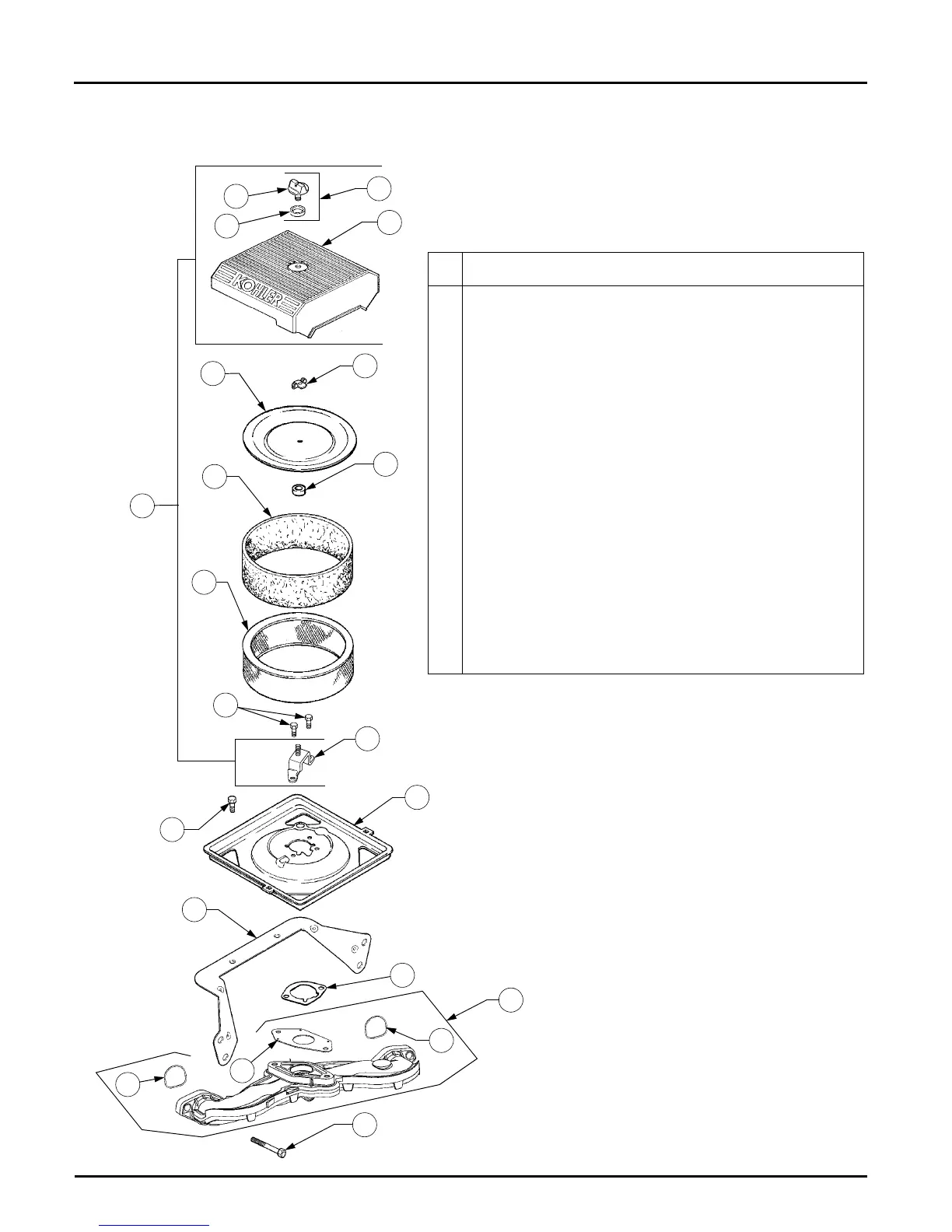

AIR INTAKE AND FILTRATION
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-54-755-01 Kit, Knob w/Seal (Incl. Ref #2,3) 1
2 KH-25-341-03 Knob, Cover 1
3
KH-24-153-20-S
Seal, Air Cleaner Cover Knob 1
4 KH-24-096-69-S Cover, Air Cleaner 1
5 KH-12-100-01 Wing Nut 1
6 KH-24-096-01 Cover, Inner Air Cleaner 1
7 KH-24-032-03 Seal, Inner Air Cleaner 1
8 KH-24-083-02 Precleaner, Element 1
9 KH-47-083-03 Element, Air Cleaner 1
10 KH-M-0639016 Screw, Hex Flange, M6 x 1.0 x16 3
11 KH-24-126-21 Bracket, Air Cleaner Base 1
12 KH-24-094-24-S Base, Air Cleaner 1
13 KH-24-041-06 Gasket, Air Cleaner Base 1
14 KH-M-0651040-S Screw, Hex Flange, M6 x 1.0 x 40 4
15 KH-24-164-54-S Manifold, Intake (Includes Carb Gasket
KH-24-041-53-S and (2) O-Rings
KH-24-153-27-S)
1
16 KH-24-153-27-S O-Ring, Intake Manifold 2
17 KH-24-743-08 Kit, Air Cleaner Cover (Incl 1-4, 11) 1
18 KH-24-041-53-S Gasket, Carburetor 1
19 KH-M-0545010 Screw, Hex Flng, M5 x 0.8 x 10 2
20 KH-24-126-130-S Bracket, Air Cleaner Base 1
13
20
14
16
12
10
9
17
7
8
5
6
4
1
2
3
11
15
16
18
19
