Low Fuel Indicator Lamp
Indicator Panel/Hour Meter
Key Switch Module
Parking Brake Lever
PTO Switch
Brake Pedal
Reverse Pedal
Forward Pedal
12V Power Outlet
Transmission Oil Fill/Dipstick
Fuel Fill Cap
Cup Holder
Hydraulic Lift Lever
Auxiliary Hydraulic Lever
Differential Lock Pedal
Center Height Position Indicator
Deck Height Adjustment Knob
* Steering Wheel and Seat Removed For Clarity
Cruise Control LeverT

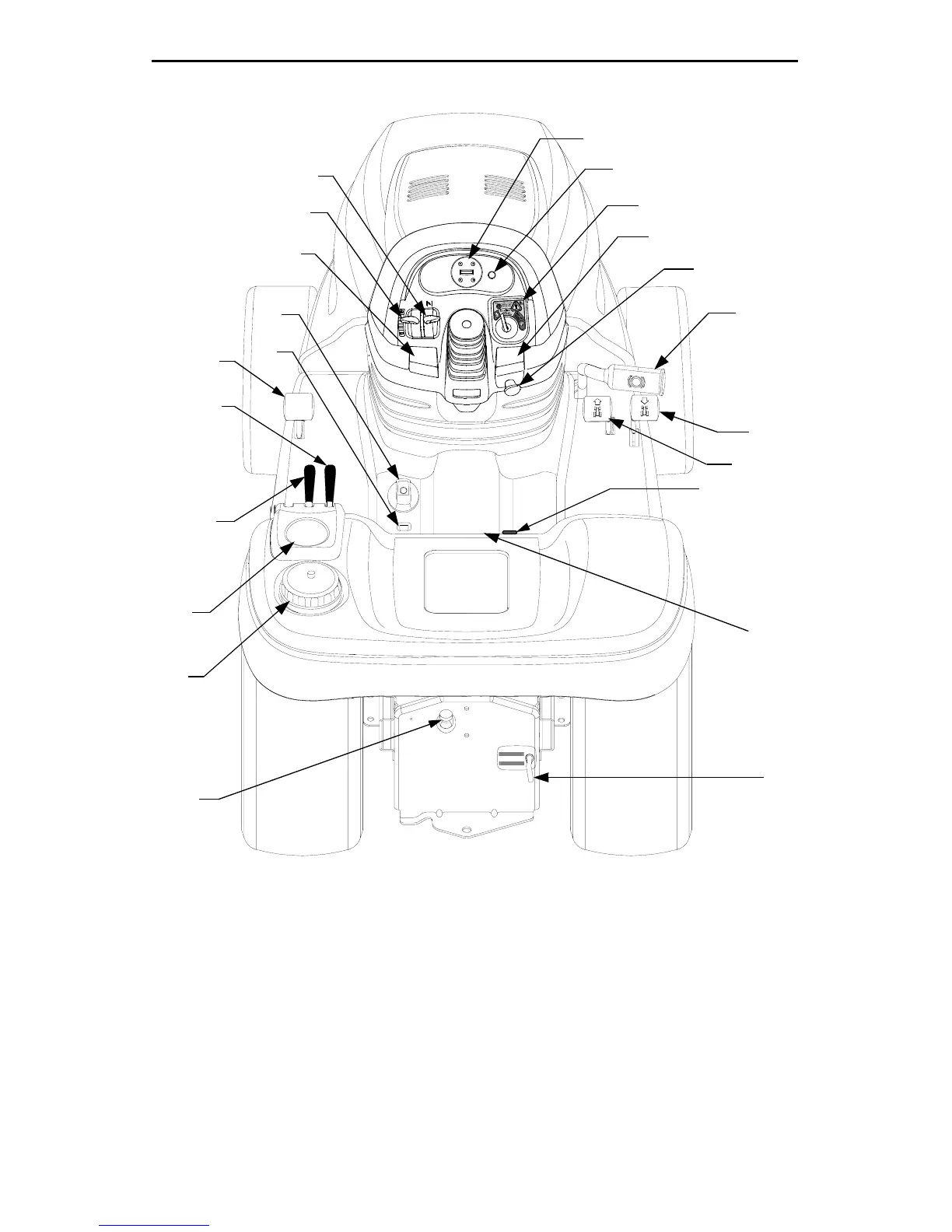

SECTION 6: CONTROLS and FEATURES
Figure 3
J U Throttle Lever
Seat Adjustment Lever (Not Shown)
A
C
F
G
H
E
P
K
M
N
O
R
T
S
J
B
(Not Shown)
Q
L
D
I
U
V
K
Transmission Release Rod
V Choke Lever
