Tractor Set-Up
Moving the Tractor Manually
Your tractor’s transmission is equipped with a hydrostatic relief
valve for occasions when it is necessary to move the tractor
manually. Activating this valve forces the fluid in the transmission
to bypass its normal route, allowing the rear tires to “freewheel.”
To engage the hydrostatic relief valve, proceed as follows:
1. Locate the hydrostatic bypass rod in the rear of the tractor.
See Figure 3-1.
2. Pull the hydrostatic bypass rod outward, then down, to lock
it in place.
NOTE: The transmission will NOT engage when the hydrostatic
bypass rod is pulled out. Return the rod to its normal position
prior to operating the tractor.
IMPORTANT: Never attempt to move the tractor manually
without first engaging the hydrostatic relief valve. Doing so will
result in serious damage to the tractor’s transmission.
Shipping Brace Removal
WARNING! Make sure the lawn tractor’s engine is
off, set the parking brake and remove the ignition
key before removing the shipping brace.
1. Locate the shipping brace, if present, and warning tag
found on the right side of the cutting deck. See Figure 3-2.
2. While holding the discharge chute with your left hand,
remove the shipping brace with your right hand by
grasping it between your thumb and index finger and
rotating it clockwise.
WARNING! The shipping brace is used for
packaging purposes only. Remove and discard the
shipping brace before operating your lawn tractor.
WARNING! The mowing deck is capable of
throwing objects. Failure to operate the riding
mower with the discharge cover in the proper
operating position could result in serious personal
injury and/or property damage.

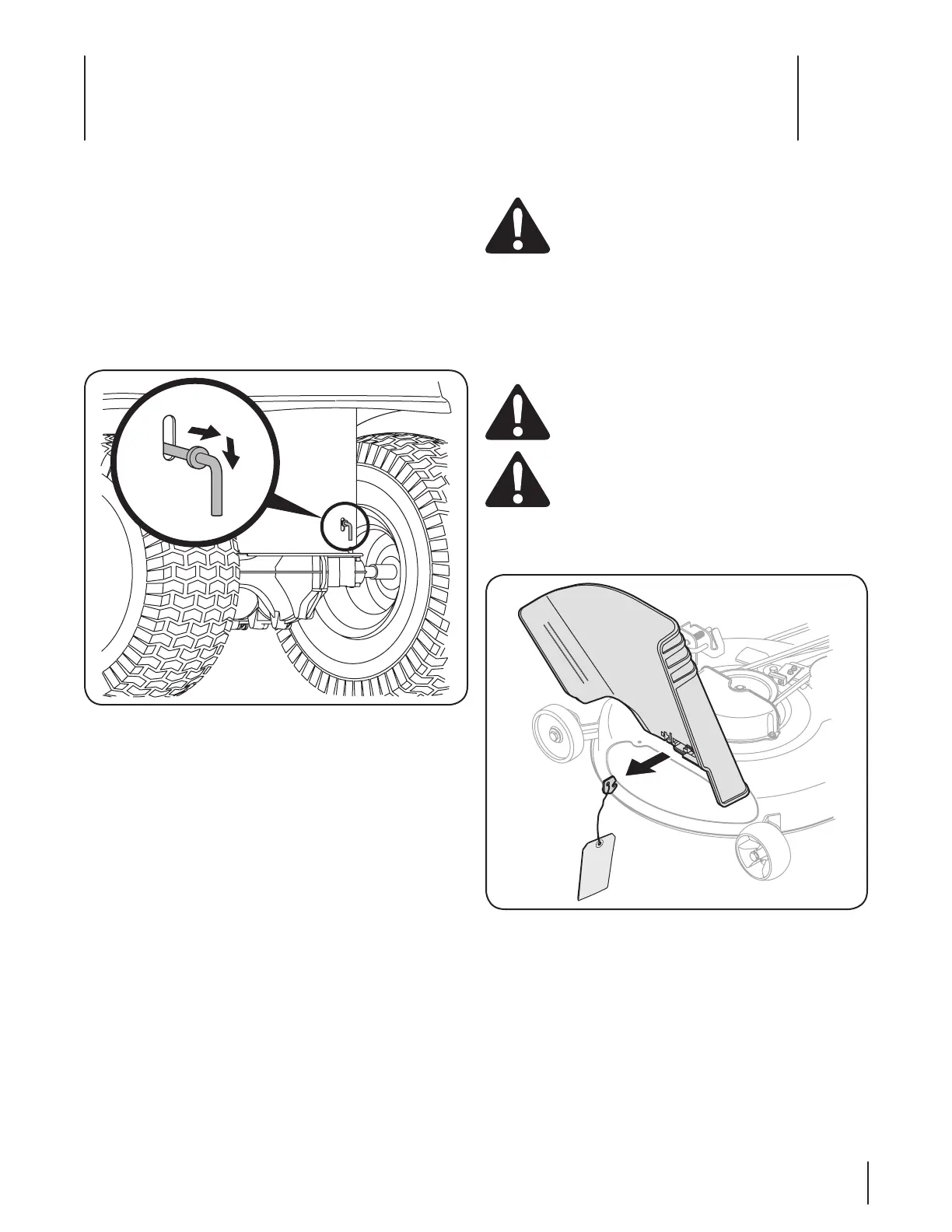

Figure 3-2
Figure 3-1
9
