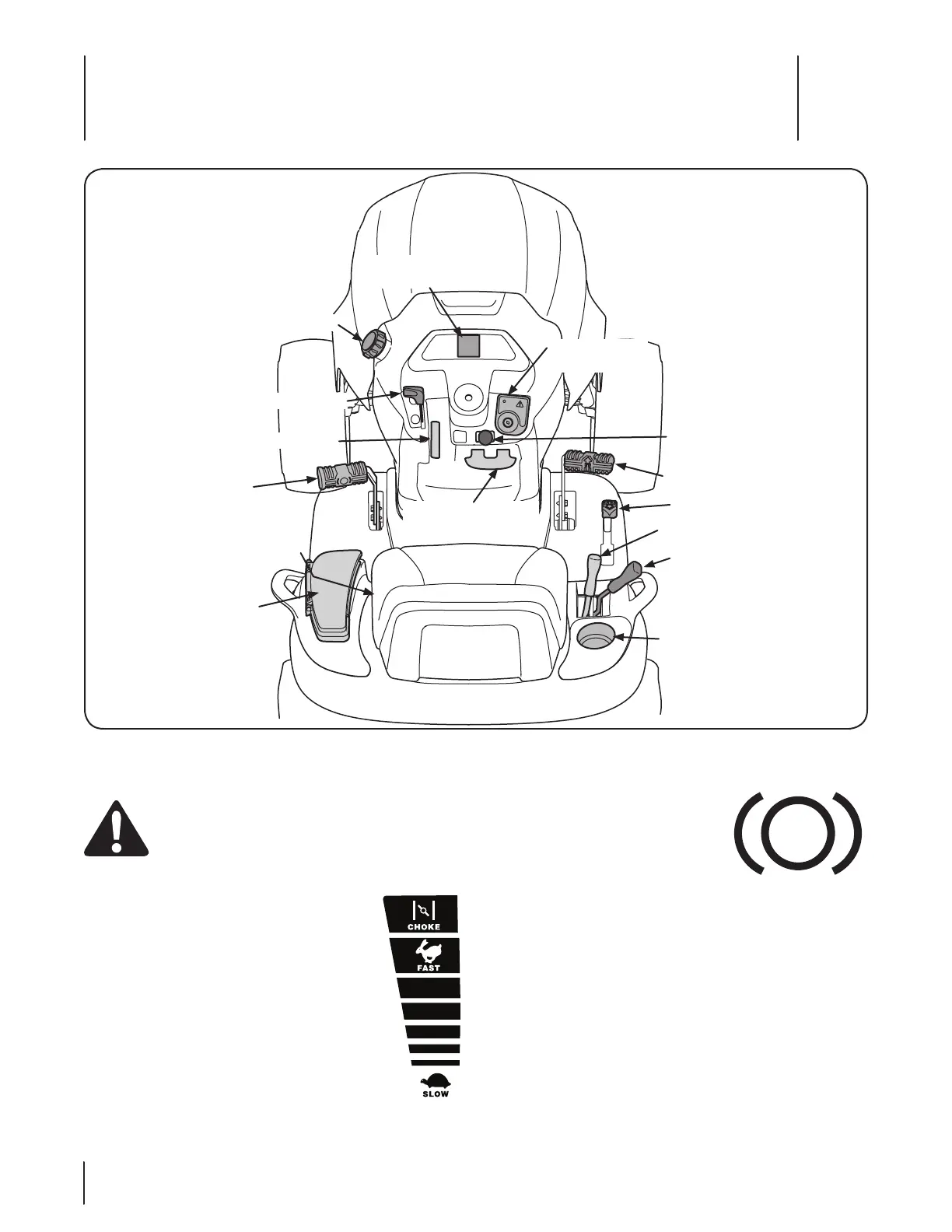

Lawn Tractor controls and features are illustrated in Fig. 4-1 and
described on the following pages.
WARNING! Read and follow all safety rules and
instructions in this manual, including the entire
Operation section, before attempting to operate
this machine. Failure to comply with all safety rules
and instructions may result in personal injury.
Throttle/Choke Control
The throttle/choke control is located on the left
side of the tractor’s dash panel. This lever controls
the speed of the engine and, when pushed all the
way forward, closes the choke for cold starting.
When set in a given position, the throttle will
maintain a uniform engine speed.
NOTE: When operating the tractor with the
cutting deck engaged, be certain that the
throttle/choke control is always in the FAST
(rabbit) position.
Figure 4-1
Brake Pedal
The brake pedal is located on the left
front side of the tractor along the
running board. The brake pedal can be
used for sudden stops or setting the
parking brake.
NOTE: The brake pedal must be fully
depressed to activate the safety
interlock switch when starting the tractor.
Seat Adjustment Lever (not seen)
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position of
the operator’s seat. Refer to the Assembly and Set-Up section of
this manual for more detailed instructions.
Systems Indicator
Monitor
Brake Pedal
Drive Pedal
Deck Lift Lever
Cup Holder
Fuel Tank Cap
Throttle/Choke Control
Ignition Switch
Module
Parking Brake/
Cruise Control Lever
Seat Adjustment Lever
PTO (Blade Engage)
Handle (optional)
Reverse Pedal
Storage Bin
Fuel Level Indicator
Electric PTO Knob
(optional)
Controls and Features
4
