To place the new belt begin by routing the belt around the 5.
two outer spindle pulleys as shown in Fig. 7-8.
Then route the belt around the two deck idler pulleys as 6.
show in Fig. 7-8.
Retighten the belt keeper rod loosened earlier.7.
Remount the belt guards removed earlier.8.
Re-install the deck making sure the belt remains routed
around the pulleys as instructed.
While holding the belt and pulley together, rotate the
rotating the pulley and belt until the belt is fully rolled into

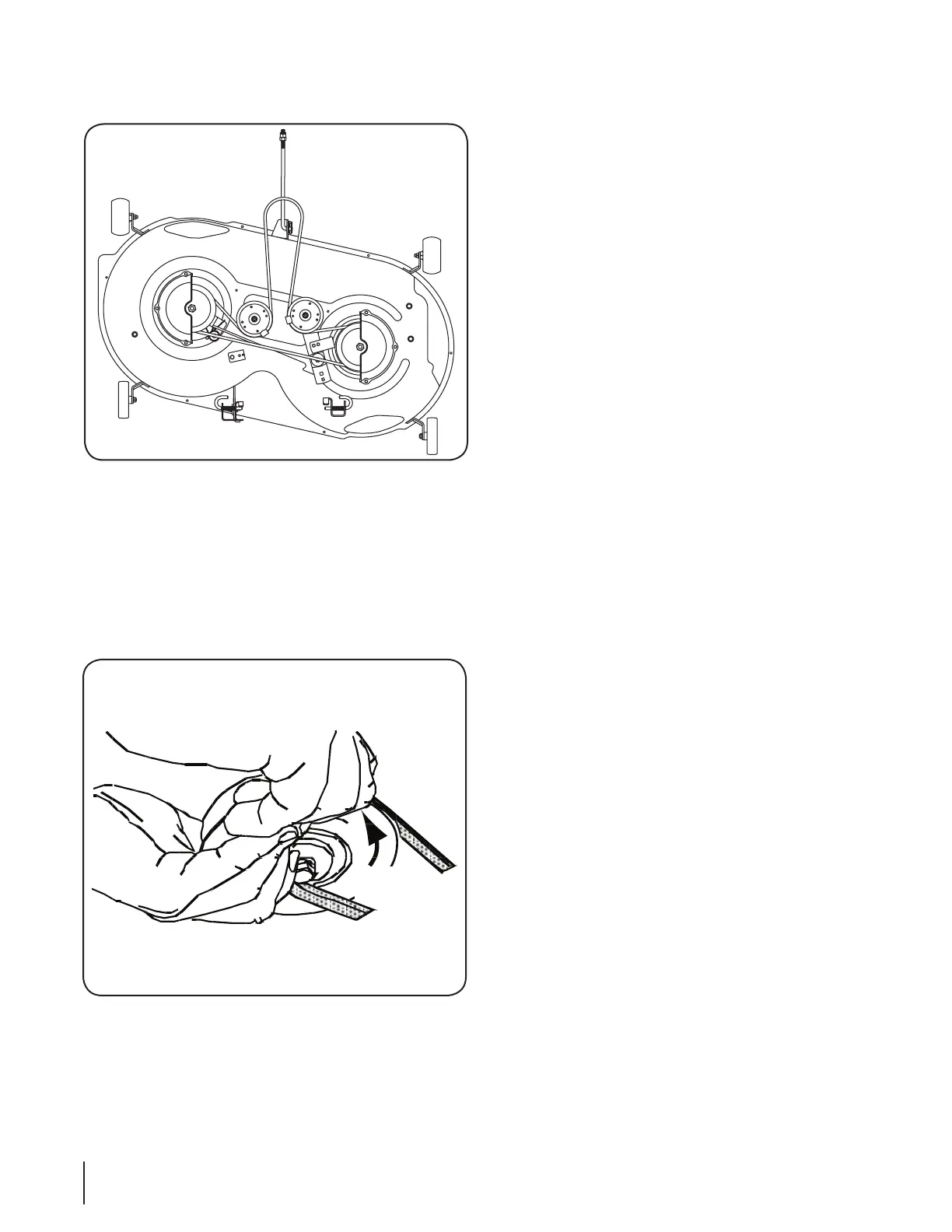

Figure 7-8
Figure 7-9
28 se c t i O n 7— se r v i c e
