Cub Cadet P418

15
Model P418
2
11
7
1
8
9
17
5
6
15
10
11
13
12
14
10

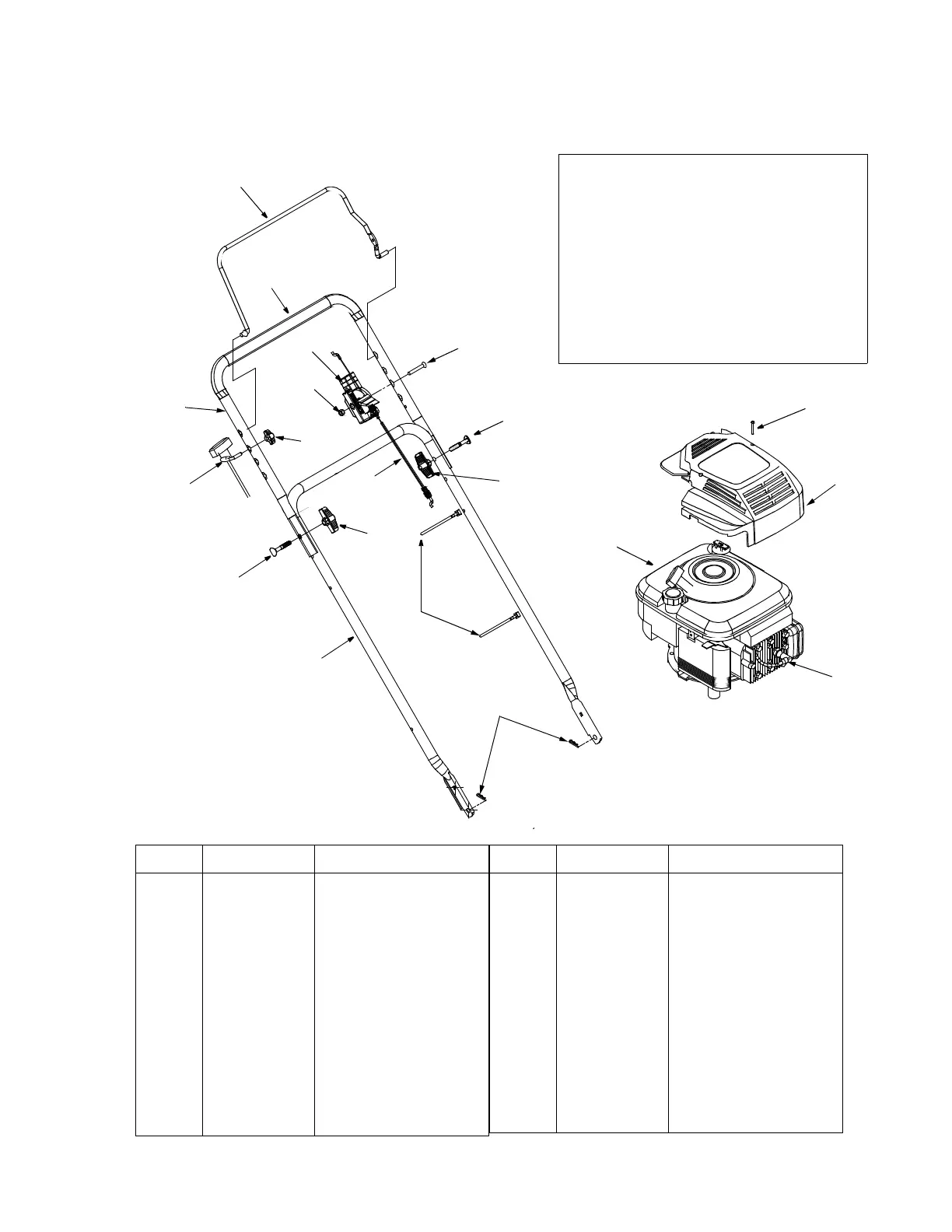

Ref. No. Part No. Description
1 647-0004 Control Handle Ass’y.
2 710-1270 Oval C-Sunk Screw
5 712-0324 Hex Lock Nut
6 746-0883 Control Housing
7 720-0295 Foam Grip
8 749-0705 Upper Handle
9 710-1205 Rope Guide
10 720-0314 Hand Knob
11 710-1174 Carriage Bolt
12 726-0240 Cable Tie
13 749-0928 Lower Handle
14 714-0104 Hairpin Clip
15 746-0554 Control Cable 40.5” Lg.
17 720-0279 Handle Knob
18 - Engine
19 735-0639 Spark Plug Boot
20 751B095225 Screw #10-32 x 2.3” Lg.
21 751B281857 Engine Shroud
- 710-1268 Muffler Guard Screw (Not
Shown)
- 751B225250 Muffler Guard (Not Shown)
- 777D00543 Hub Cap Label
- 777D003382 Engine Shroud
- 777S30118 Danger Label (Cut Hand)
- 777S30277 Discharge Door
Ref. No. Part No. Description
NOTE: For painted parts, please refer to
the list of color codes below. Please add the
applicable color code, wherever needed, to
the part number to order a replacement part.
For instance, if a part, numbered 700-xxxx,
is painted Cub Yellow, the part number to
order would be 700-xxxx-0716.
Cub Yellow: 0716
Cub Beige: 0499
Powder Black: 0637
18
19
21
20
